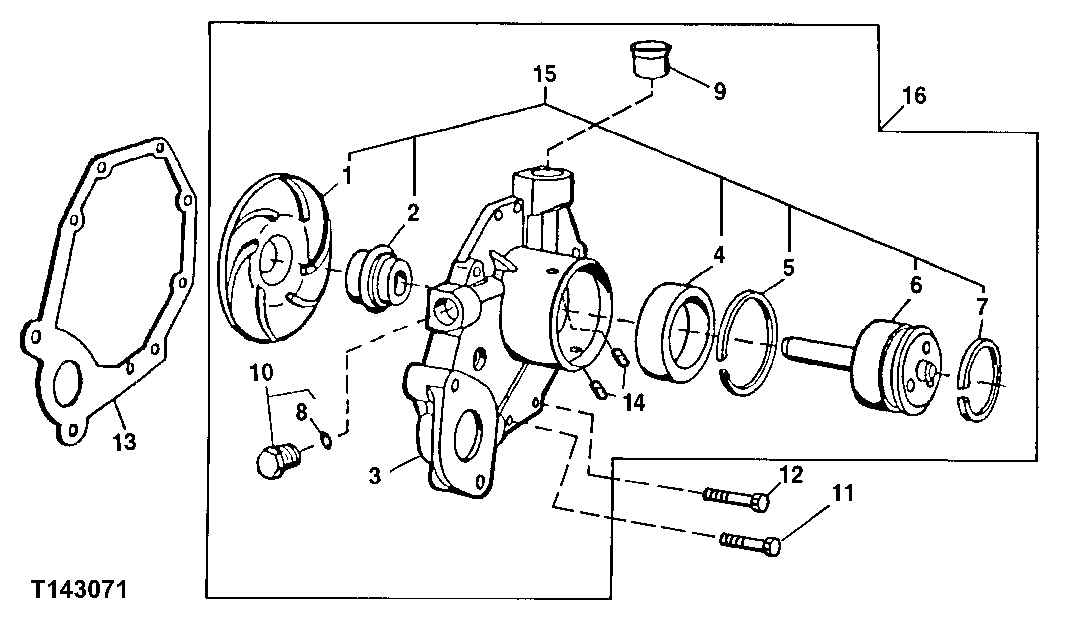

Запчасти John Deere 30LCR 136 - Water Pump Assembly ( - 829272) 0417B Water Pump PE6068HT051 PE6068HT051

1

Impeller

1шт.

2

Seal

1шт.

3

Housing

1шт.

4

Ball Bearing

1шт.

5

Ring

1шт.

6

Shaft

1шт.

7

A364R

Snap Ring

1шт.

8

51M7043

O-Ring

15.300 X 2.200 mm

1шт.

9

R123226

Seal

1шт.

10

RE46685

Fitting Plug

1шт.

11

19M7863

Screw

M6 X 25

5шт.

12

19M7796

Screw

M6 X 30

3шт.

13

R123417

Gasket

1шт.

14

R98527

Filter

(USE W/ RE70985)

2шт.

R100369

Filter

(USE W/ RE500734)

2шт.

15

RE70962

Engine Kit

1шт.

16

RE500734

Water Pump

(MARKED R500401) (SUB FOR RE70985) (MARKED R121035) (SUB RE505980 AND R E508566) (USE RE505980 W/ RE509813)

1шт.

RE505980

Water Pump

1шт.

SE501609

Water Pump Reman

(REMAN FOR RE505980)

1шт.
