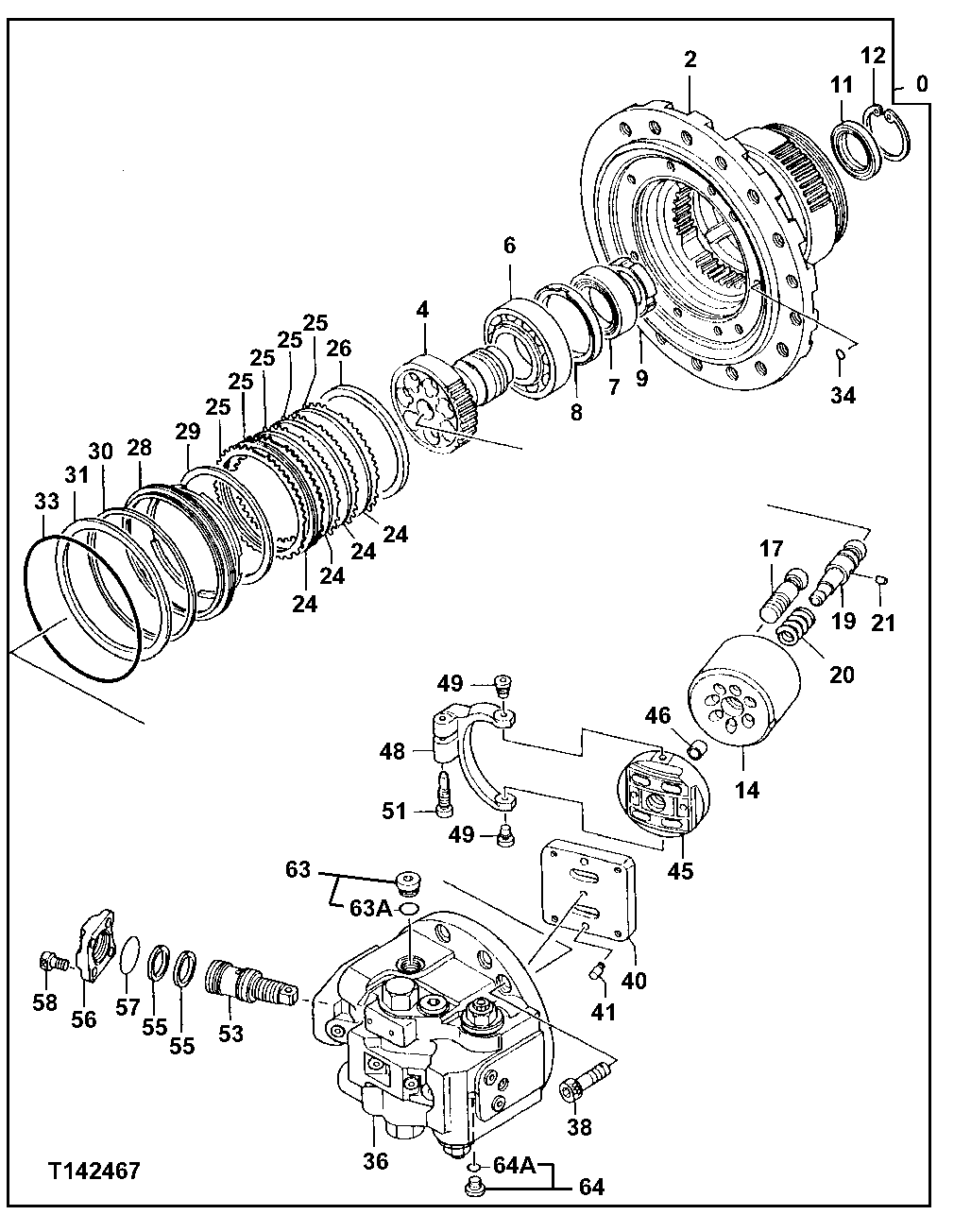

Запчасти John Deere 30LCR 12 - TRAVEL MOTOR 0260 Axles, Diff. & Susp. Sys. Hyd. (Incl. Fwd)

0

9149087

Oil

NLA (ORDER 9149087EX)

1шт.

9149087

Oil

(SUB FOR AT214460 ) (SUB FOR AT183689) (REMAN FOR 9149087)

1шт.

2

1014547

Housing

(SUB FOR AT154637)

1шт.

4

2026713

Disk

(SUB FOR AT154650)

1шт.

6

JD10429

Tapered Roller Bearing

1шт.

7

JD10428

Tapered Roller Bearing

1шт.

8

4222980

Spacer

(SUB FOR TH111930)

1шт.

9

4178173

Nut

(SUB FOR T107755)

1шт.

11

4260561

Seal

(SUB FOR AT154282)

1шт.

12

4116290

Snap Ring

(SUB FOR TH111929)

1шт.

14

2034880

Rotor

(SUB FOR AT202409)

1шт.

17

8050658

Piston

(SUB FOR AT154837)

7шт.

19

3064069

Shaft

(SUB FOR AT202418)

1шт.

20

4179181

Compression Spring

(SUB FOR T107767)

1шт.

21

4198956

Pin Fastener

(SUB FOR T107766)

1шт.

24

3037401

Plate

(SUB FOR T107776)

4шт.

25

3032432

Plate

(SUB FOR T107771)

5шт.

26

4246784

Spacer

(SUB FOR AT154709)

1шт.

28

3047473

Piston

(SUB FOR AT154664)

1шт.

29

4232766

Ring

(SUB FOR T107773)

1шт.

30

4232767

Ring

(SUB FOR T107774)

1шт.

31

3047472

Disk Spring

(SUB FOR AT154663)

1шт.

33

4396017

O-Ring

(SUB FOR AT154717)

1шт.

34

T111819

O-Ring

1шт.

36

9149086

Flow Control Hyd. Valve

(SUB FOR AT214459)(BRAKE)

1шт.

38

19M8208

Screw

M16 X 50

8шт.

40

3064074

Plate

(SUB FOR AT202419)

1шт.

41

4364104

Pin

(SUB FOR AT154771 ) (SUB FOR AT217970)

2шт.

45

2034875

Plate

(SUB FOR AT202408)

1шт.

46

4234628

Bushing

(SUB FOR AT154704)

1шт.

48

3052403

Link

(SUB FOR AT154688)

1шт.

49

4255238

Plug

(SUB FOR AT154745)

2шт.

51

4262561

Bolt

(SUB FOR AT154768)

1шт.

53

9130524

Piston

(SUB FOR AT214457)(SERVO) (S EE SEPARATE PAGE FOR DETAIL)

1шт.

55

4260308

Piston Ring

(SUB FOR AT154759)

2шт.

56

4358413

Cover

(SUB FOR AT215528)

1шт.

57

4265579

O-Ring

(SUB FOR AT154770)

1шт.

58

19M8168

Screw

M12 X 25

4шт.

63

9134112

Fitting Plug

(SUB FOR AT203657)

1шт.

63A

4506418

O-Ring

(SUB FOR U46489)

1шт.

64

9134109

Drain Plug

(SUB FOR AT203656)

1шт.

64A

4506408

O-Ring

(SUB FOR TH101490)

1шт.
