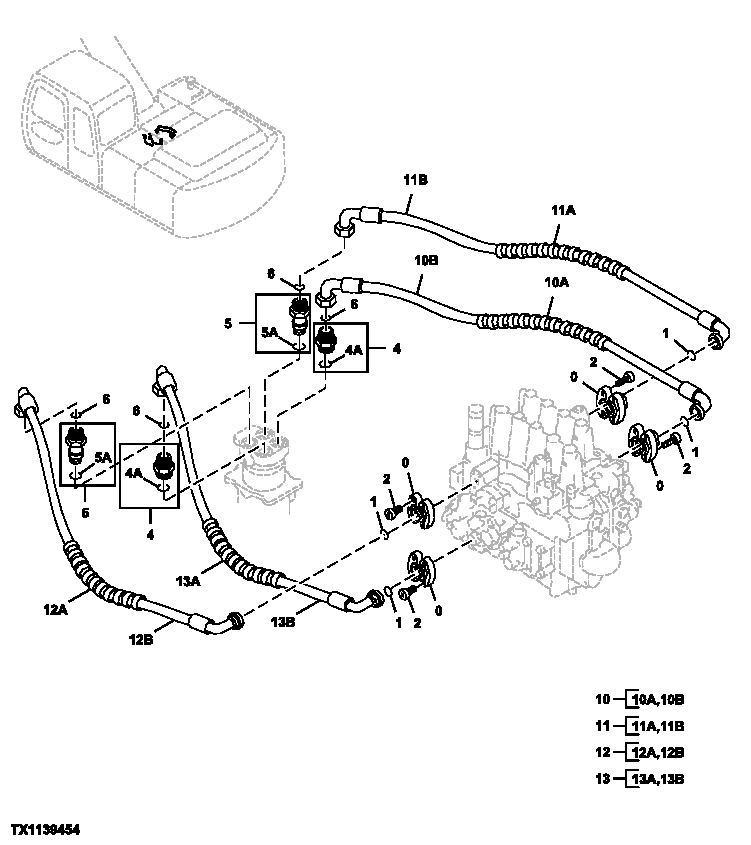

Запчасти John Deere 30LCR 333 - MAIN PIPINGS 3360 Hydraulic System

0

R49424

O-Ring

SUB FOR 986910

8шт.

1

T59014

O-Ring

SUB FOR 971489

4шт.

2

19M7576

Screw

M10 X 30 SUB FOR J781030

16шт.

4

A853166

Adapter Fitting

SUB FOR 4189619

2шт.

4A

AT318035

O-Ring

SUB FOR 4506424

1шт.

5

4204661

Adapter Fitting

SUB FOR 4189539

2шт.

5A

AT318035

O-Ring

SUB FOR 4506424

1шт.

6

T77858

O-Ring

SUB FOR 4187308

4шт.

10

9142777

Hose

NLA

1шт.

10A

4327294

Hose Guard

NLA, MF XHG-075 CTL

1шт.

10B

4353765

Hydraulic Hose

1шт.

11

9142778

Hose

NLA

1шт.

11A

4327294

Hose Guard

NLA, MF XHG-075 CTL

1шт.

11B

4353766

Hydraulic Hose

1шт.

12

9147403

Hose

NLA

1шт.

12A

4327294

Hose Guard

NLA, MF XHG-075 CTL

1шт.

12B

4349802

Hydraulic Hose

1шт.

13

9147404

Hose

NLA

1шт.

13A

4327294

Hose Guard

NLA, MF XHG-075 CTL

2шт.

13B

4361934

Hydraulic Hose

1шт.
