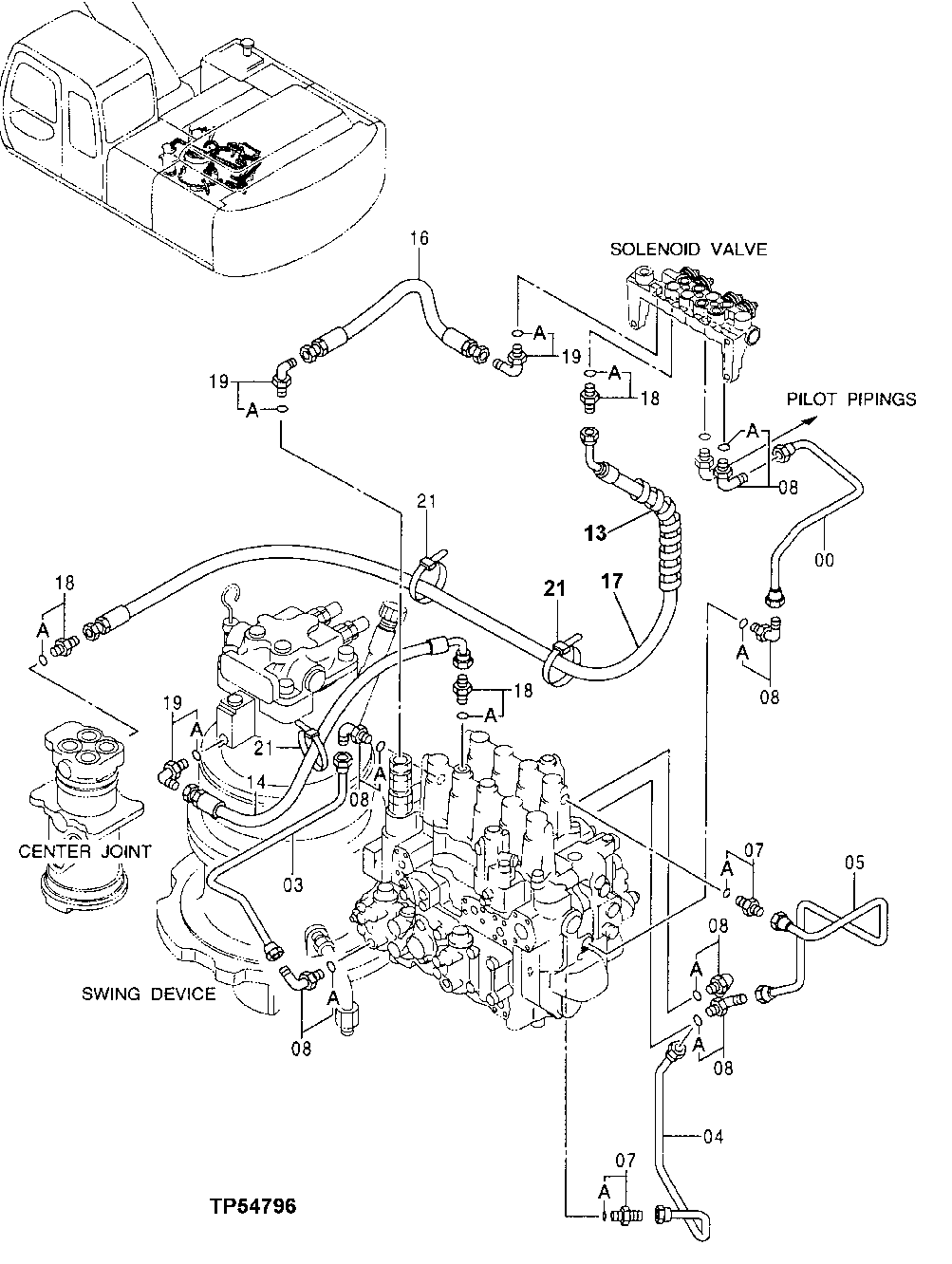

Запчасти John Deere 30LCR 348 - PILOT PIPINGS 3360 Hydraulic System

0

4333884

Oil Line

SUB FOR AT213855

1шт.

3

4333886

Oil Line

SUB FOR AT213856

1шт.

4

4333887

Oil Line

SUB FOR AT213857

1шт.

5

3068872

Oil Line

SUB FOR AT213756

1шт.

7

4255305

Fitting

SUB FOR AT213809

2шт.

7A

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

8

4293950

Fitting

SUB FOR AT160584

10шт.

8A

M800650

Packing

1шт.

13

4327315

Hose Guard

4327293 NO LONGER AVA ILABLE SUB FOR AT213831

1шт.

14

AT213844

Hydraulic Hose

1шт.

16

AT213845

Hydraulic Hose

1шт.

17

AT213909

Hydraulic Hose

1шт.

18

4200465

Adapter Fitting

SUB FOR TH108328

3шт.

18A

M800650

Packing

1шт.

19

4154670

Elbow Fitting

SUB FOR TH100951

3шт.

19A

M800650

Packing

1шт.

21

H77698

Tie Band

3шт.
