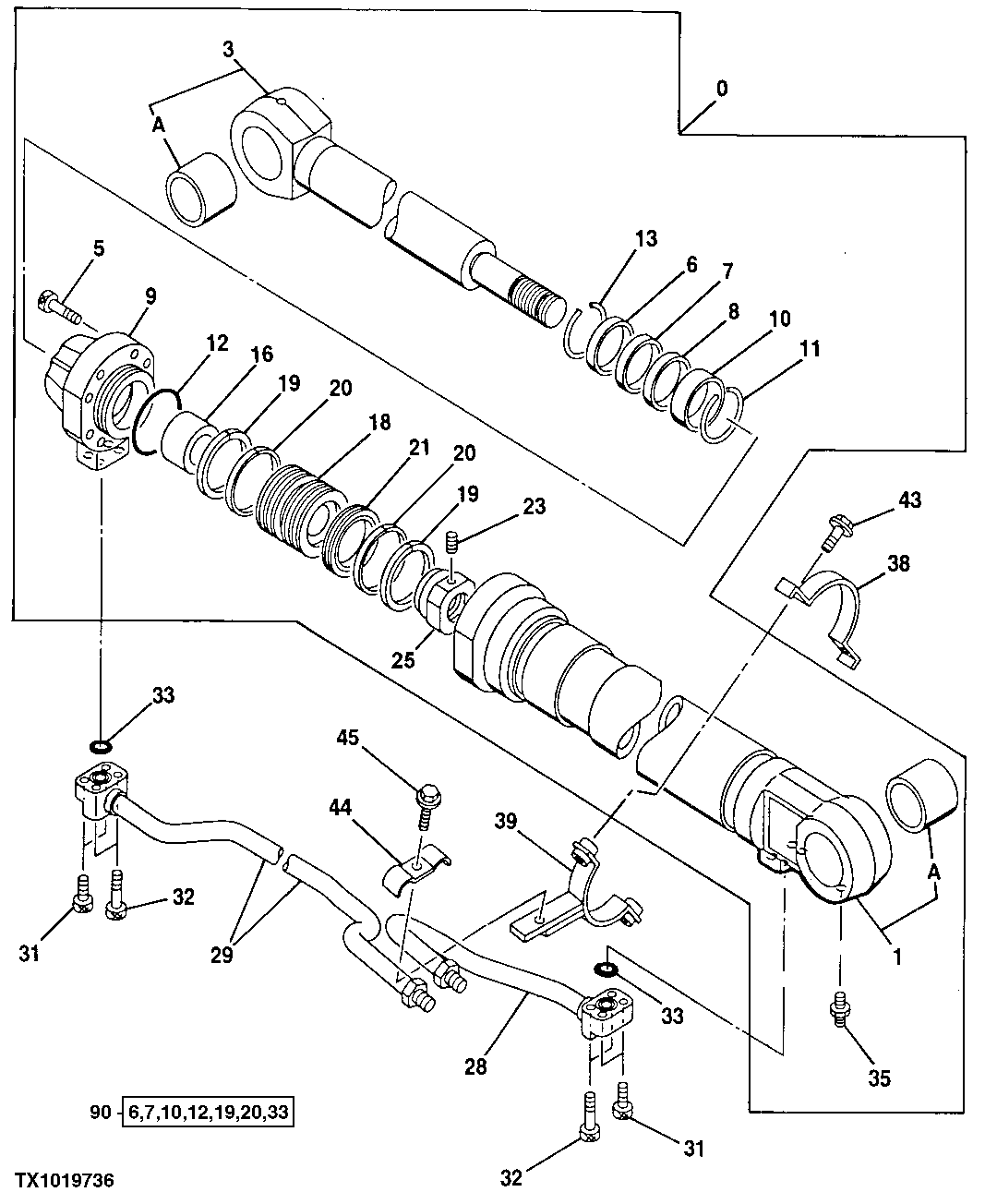

Запчасти John Deere 30LCR 363 - Right Boom Cylinder 3360 Hydraulic System

0

Cylinder Reman

AT264214 NLA, SUB FOR AT154864

1шт.

1

4645991

Tube

SUB FOR AT154814 OR 9121232

1шт.

4645991

Tube

SUB FOR PG201288

1шт.

1A

3054062

Bushing

SUB FOR AT154689

1шт.

3

Compressor Rod

AT154812 AND 7021845 NLA

1шт.

3A

3054062

Bushing

SUB FOR AT154689

1шт.

5

M342280

Screw

SUB FOR TH110086

8шт.

6

T204375

Seal

SUB FOR AT181238, AT217759 OR AT264293

1шт.

7

AT264395

Seal

SUB FOR TH110018

1шт.

8

Ring

1шт.

9

1023338

Hydr. Cylinder Rod Guide

SUB FOR AT217720

1шт.

10

AT264321

Bushing

SUB FOR AT154779 OR AT264273

1шт.

11

4264983

Snap Ring

SUB FOR AT131251

1шт.

12

AT264271

O-Ring

SUB FOR AT154736

1шт.

13

4369507

Ring

SUB FOR AT217806

1шт.

16

4371498

Spacer

SUB FOR AT217812

1шт.

18

3050116

Piston

SUB FOR AT154678

1шт.

19

AT264265

Ring

SUB FOR AT154700

2шт.

20

AT264270

Wear Ring

SUB FOR AT154735

2шт.

21

AT264296

Seal

SUB FOR AT218147

1шт.

23

4201806

Set Screw

SUB FOR TH110066

1шт.

25

3050115

Nut

SUB FOR AT154677

1шт.

28

8046949

Line

SUB FOR AT154823

1шт.

29

8046953

Line

SUB FOR AT154827

1шт.

31

19M8341

Screw

M12 X 45

4шт.

32

19M8444

Screw

M12 X 60

4шт.

33

AT264324

O-Ring

SUB FOR TH100044

2шт.

35

TH100074

Lubrication Fitting

1шт.

38

3050114

Clamp

SUB FOR AT154676

1шт.

39

8063900

Clamp

SUB FOR AT217890

1шт.

43

19M7550

Cap Screw

M10 X 35

2шт.

44

4363058

Clamp

SUB FOR AT181242

1шт.

45

19M8348

Cap Screw

M12 X 65

1шт.

12H301

Lock Washer

1/2"

1шт.

90

AT196466

Seal Kit

1шт.
