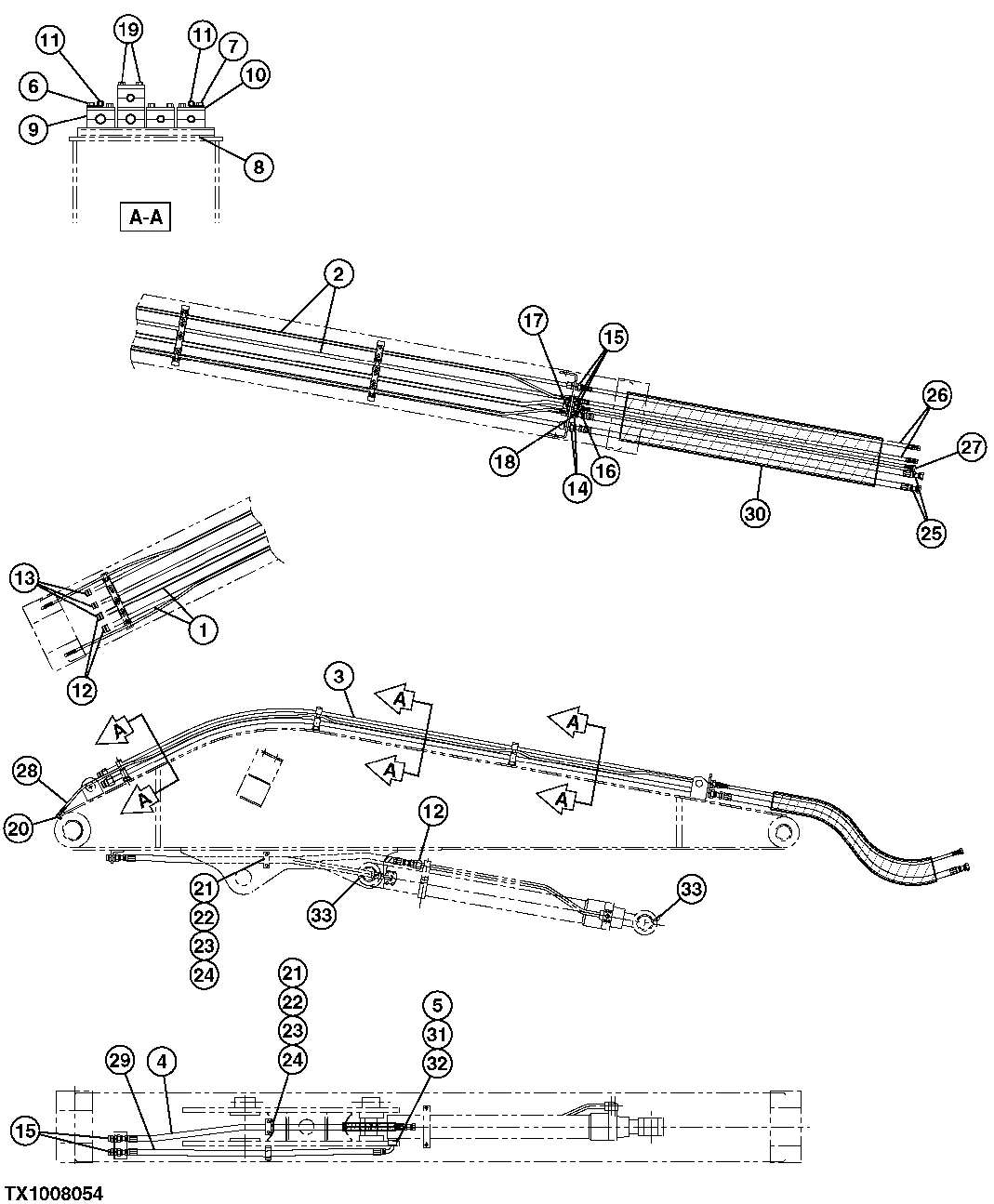

Запчасти John Deere 554 484 - HEELER ARM PLUMBING 3340 BACKHOE AND EXCAVATOR FRAMES

1

FFSB103075

Oil Line

2шт.

2

FFSB103076

Oil Line

2шт.

3

FFSB103077

Oil Line

1шт.

4

Hose

( FFSB110869 NLA)

1шт.

FFSB103299

Hydraulic Hose

1шт.

Hose Guard

(MF XHG-125, CTL 300 MM) ( FFSB110876 NLA)

1шт.

5

XM2H-12

Flange Fitting

(SUB FOR FFSB106036)

1шт.

6

19M8499

Cap Screw

M10 X 60 (SUB FOR FFSB109895)

18шт.

7

FFSB100114

Reinforcement

15шт.

8

F120999

Nut

( FFSB109897 NLA)

24шт.

9

FFSB100112

Half Clamp

12шт.

10

FFSB100113

Half Clamp

18шт.

11

H75541

Clamp

(SUB FOR FFSB102223)

6шт.

12

X16-12HLO-S

Union Fitting

(SUB FOR FFSB102143)

3шт.

13

38H1272

Union Fitting

(SUB FOR FFSB102148)

3шт.

T77858

O-Ring

6шт.

14

38H1287

Adapter Fitting

(SUB FOR FFSB102144)

2шт.

T76938

O-Ring

4шт.

T78715

Nut

2шт.

15

38H1276

Adapter Fitting

(SUB FOR FFSB102145)

5шт.

T77858

O-Ring

10шт.

T78707

Nut

5шт.

16

T77613

O-Ring

(SUB FOR FFSB103489)

1шт.

38H1356

Tube Nut

1шт.

17

X4WGTX-WLN-S

Adapter Fitting

(SUB FOR FFSB102226)

2шт.

18

JD7763

Lubrication Fitting

(SUB FOR FFSB110875)

2шт.

19

19M8343

Cap Screw

M10 X 120 (SUB FOR FFSB111324)

6шт.

20

T107303

Elbow Fitting

(SUB FOR FFSB109442)

2шт.

21

FFSB108058

Spacer

4шт.

22

FFSB102050

Reinforcement

2шт.

23

FFSB102051

Half Clamp

4шт.

24

FFSB110868

Insert

2шт.

25

FFSB103301

Hydraulic Hose

2шт.

26

FFSB103302

Hydraulic Hose

2шт.

27

FFSB103303

Hydraulic Hose

1шт.

28

FFSB103304

Hydraulic Hose

2шт.

29

FFSB103300

Hydraulic Hose

1шт.

30

XAS-B-58

Hose Guard

(SUB FOR FFSB110058)

1шт.

31

X711510-5

O-Ring

(SUB FOR FFSB103505)

1шт.

32

19M8337

Screw

M10 X 30 (SUB FOR FFSB107143)

4шт.

33

T116334

Lubrication Fitting

2шт.
