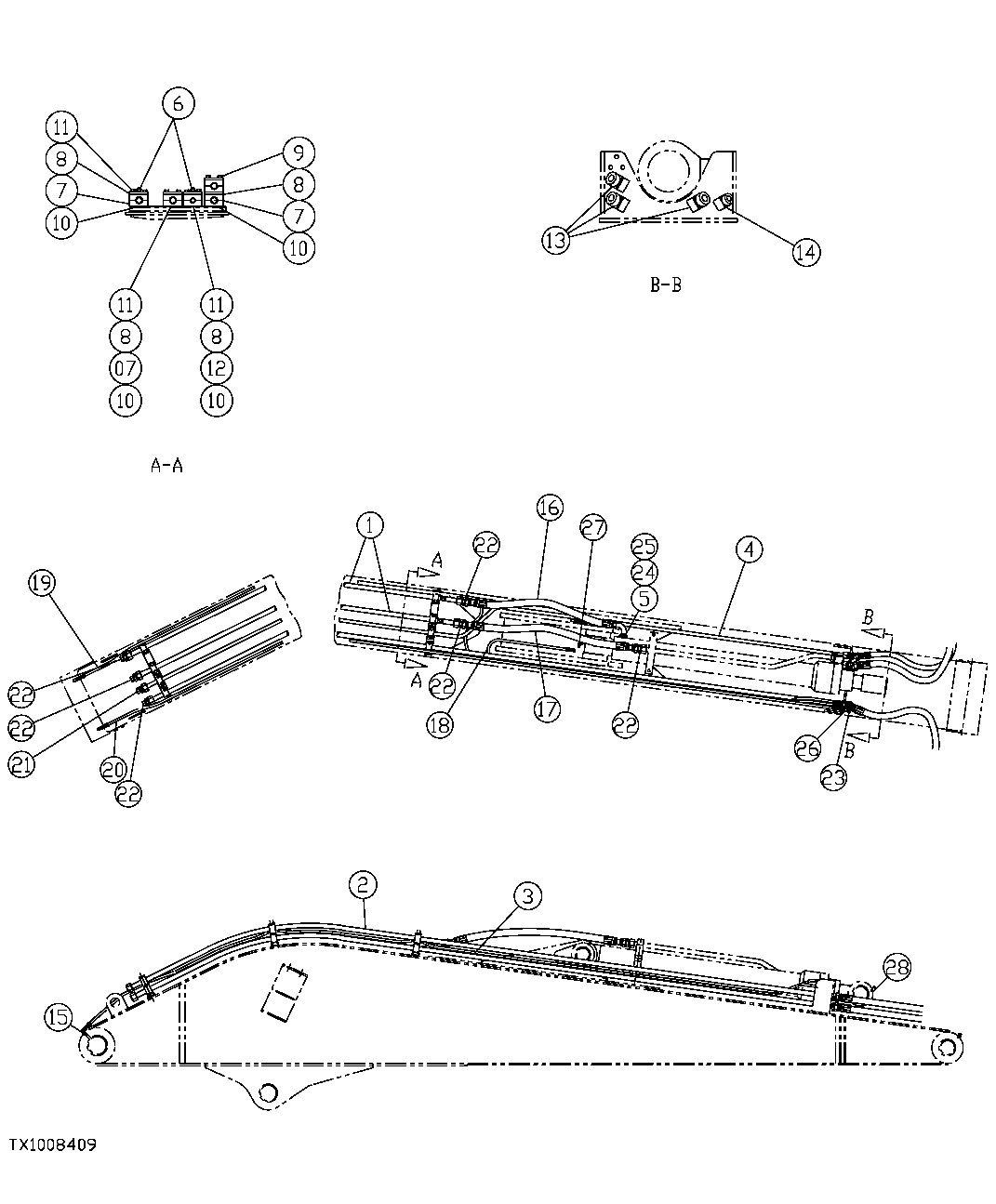

Запчасти John Deere 554 499 - VALVE IN HEAD ARM PLUMBING 3360 HYDRAULIC SYSTEM

1

FFSB105485

Oil Line

2шт.

2

FFSB105482

Oil Line

1шт.

3

FFSB105483

Oil Line

1шт.

4

FFSB105484

Oil Line

1шт.

5

19M8337

Screw

M10 X 30

4шт.

6

H75541

Clamp

(SUB FOR FFSB102223)

3шт.

7

FFSB100112

Half Clamp

24шт.

8

FFSB100114

Reinforcement

15шт.

9

19M8343

Cap Screw

M10 X 120 (SUB FOR FFSB111324)

6шт.

10

F120999

Nut

( FFSB109897 NLA)

24шт.

11

19M8499

Cap Screw

M10 X 60

18шт.

12

FFSB100113

Half Clamp

6шт.

13

PMH180

Elbow Fitting

3шт.

14

FFSB110867

Insert

1шт.

15

T107303

Elbow Fitting

2шт.

16

FFSB106009

Hydraulic Hose

1шт.

17

FFSB106027

Hydraulic Hose

1шт.

18

FFSB106029

Hydraulic Hose

1шт.

19

FFSB106031

Hydraulic Hose

1шт.

20

FFSB106030

Hydraulic Hose

1шт.

21

38H1272

Union Fitting

1шт.

T77858

O-Ring

2шт.

22

X16-12HLO-S

Union Fitting

(SUB FOR FFSB102143)

7шт.

23

JD7763

Lubrication Fitting

3шт.

24

XM2H-12

Flange Fitting

2шт.

25

X711510-5

O-Ring

1шт.

26

X4WGTX-WLN-S

Adapter Fitting

(SUB FOR FFSB102226)

3шт.

27

X4C3MXS

Elbow Fitting

(SUB FOR FFSB112279)

1шт.

28

T116334

Lubrication Fitting

(SUB FOR FFSB109614)

1шт.
