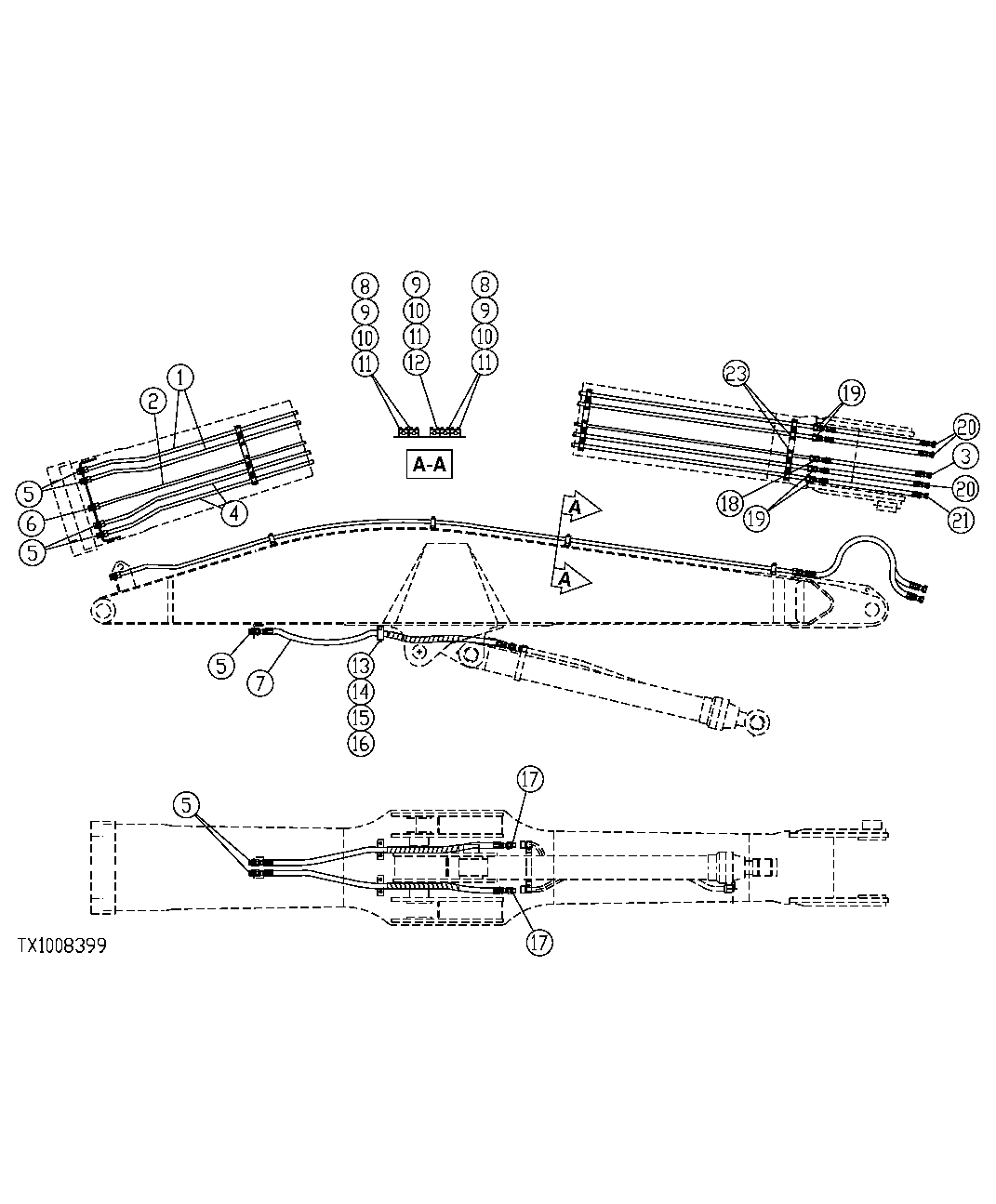

Запчасти John Deere 554 544 - BOOM PLUMBING FOR VALVE IN HEAD FRONT 3360 HYDRAULIC SYSTEM

1

FFSB103187

Oil Line

(LH)

2шт.

2

FFSB103188

Oil Line

(LH)

1шт.

3

FFSB106022

Hydraulic Hose

1шт.

4

FFSB103190

Oil Line

(RH)

2шт.

5

38H1287

Adapter Fitting

(SUB FOR FFSB102144)

6шт.

T76938

O-Ring

12шт.

T78715

Nut

6шт.

6

38H1276

Adapter Fitting

(SUB FOR FFSB102145)

1шт.

T77858

O-Ring

2шт.

T78707

Nut

1шт.

7

FFSB103295

Hydraulic Hose

2шт.

XHG-150

Hose Spring Guard

(SUB FOR FFSB110057)

2шт.

8

FFSB100112

Half Clamp

32шт.

9

19M8499

Cap Screw

M10 X 60 (SUB FOR FFSB109895)

38шт.

10

FFSB100114

Reinforcement

20шт.

11

F120999

Nut

( FFSB109897 NLA)

40шт.

12

FFSB100113

Half Clamp

8шт.

13

FFSB100118

Half Clamp

4шт.

14

FFSB110867

Insert

2шт.

15

FFSB100116

Reinforcement

2шт.

16

19M7216

Cap Screw

M12 X 100 (SUB FOR FFSB109192)

2шт.

17

X16F5OLO-S

Adapter Fitting

(SUB FOR FFSB102146)

2шт.

18

38H1272

Union Fitting

(SUB FOR FFSB102148)

1шт.

T77858

O-Ring

2шт.

19

X16-12HLO-S

Union Fitting

(SUB FOR FFSB102143)

4шт.

20

FFSB103296

Hydraulic Hose

3шт.

21

FFSB105680

Hydraulic Hose

1шт.

23

FFSB108058

Spacer

2шт.
