213 - AIR CONDITIONER AND HEATER COMPONENTS

Запчасти John Deere 70CLC 213 - AIR CONDITIONER AND HEATER COMPONENTS 1830 HEATING & AIR CONDITIONING

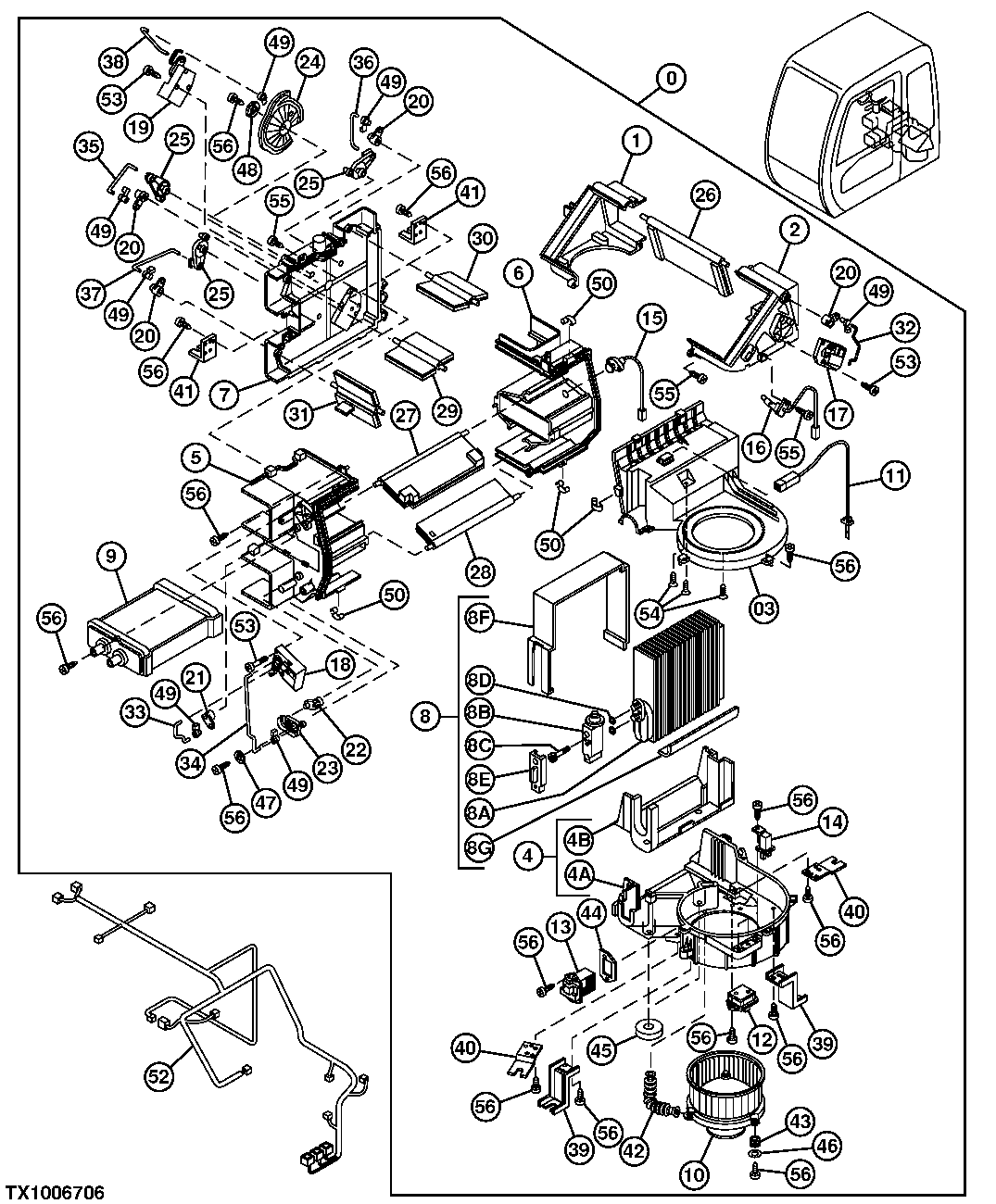

Схема запчастей John Deere 70CLC - 213 - AIR CONDITIONER AND HEATER COMPONENTS 1830 HEATING & AIR CONDITIONING
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

0

4426047

Air Conditioner

(SUB FOR TH4426047)

1шт.

4450707

Heater

1шт.

1

4464341

Case

(SUB FOR TH4464341)

1шт.

2

4464342

Case

(SUB FOR TH4464342)

1шт.

3

4464343

Case

(SUB FOR TH4464343)

1шт.

4

Case

( 4464344 NLA) (SUB FOR TH4464344)

1шт.

4A

4464345

Case

1шт.

4B

4464346

Lining

1шт.

5

4464347

Case

(SUB FOR TH4464347)

1шт.

6

4464349

Case

(SUB FOR TH4464349)

1шт.

7

4464350

Case

(SUB FOR TH4464350)

1шт.

8

4464352

Evaporator

(SUB FOR TH4464352)

1шт.

8A

Evaporator

( TH4464353 NLA)

1шт.

8B

4464354

Flow Control Hyd. Valve

(SUB FOR TH4464354)

1шт.

8C

4464355

Bolt

(SUB FOR TH4464355)

2шт.

8D

4370249

O-Ring

2шт.

8E

4464356

Cap

(SUB FOR TH4464356)

1шт.

8F

Isolator

( TH4464357 NLA)

1шт.

8G

Plate

( TH4464274 NLA)

1шт.

9

4464275

Heater

(SUB FOR TH4464275)

1шт.

10

4464276

Electric Motor

(USE WITH 4610412) (SUB FOR TH4464276 ) (USE WITH TH4450707, 4450707, TH4426047 OR 442604 7) (USE WITH 4464479) (WITH PIGTAIL HARNESS)

1шт.

4370266

Electric Motor

(USE WITHOUT 4610412) (USE WITH 4609049) (U SE WITHOUT 4464479)(WITHOUT PIGTAIL HARNESS)

1шт.

11

4464277

Switch

(SUB FOR TH4464277)

1шт.

12

4464278

Resistor

(SUB FOR TH4464278)

1шт.

13

4464279

Transistor

(SUB FOR TH4464279)

1шт.

14

4370269

Relay

3шт.

15

4464280

Sensor

(SUB FOR TH4464280)

1шт.

16

4448925

Sensor

(SUB FOR TH4448925)

1шт.

17

4464281

Electric Motor

(SUB FOR TH4464281)

1шт.

18

4464282

Electric Motor

(SUB FOR TH4464282)

1шт.

19

4464283

Electric Motor

(SUB FOR TH4464283)

1шт.

20

4464284

Lever

(SUB FOR TH4464284)

4шт.

21

4464285

Lever

(SUB FOR TH4464285)

1шт.

22

4464286

Lever

(SUB FOR TH4464286)

1шт.

23

4464287

Lever

(SUB FOR TH4464287)

1шт.

24

4464288

Lever

(SUB FOR TH4464288)

1шт.

25

4464450

Lever

(SUB FOR TH4464450)

3шт.

26

4464451

Door

(SUB FOR TH4464451)

1шт.

27

4464452

Door

(SUB FOR TH4464452)

1шт.

28

4464453

Door

(SUB FOR TH4464453)

1шт.

29

4464454

Door

(SUB FOR TH4464454)

1шт.

30

4464455

Door

(SUB FOR TH4464455)

1шт.
