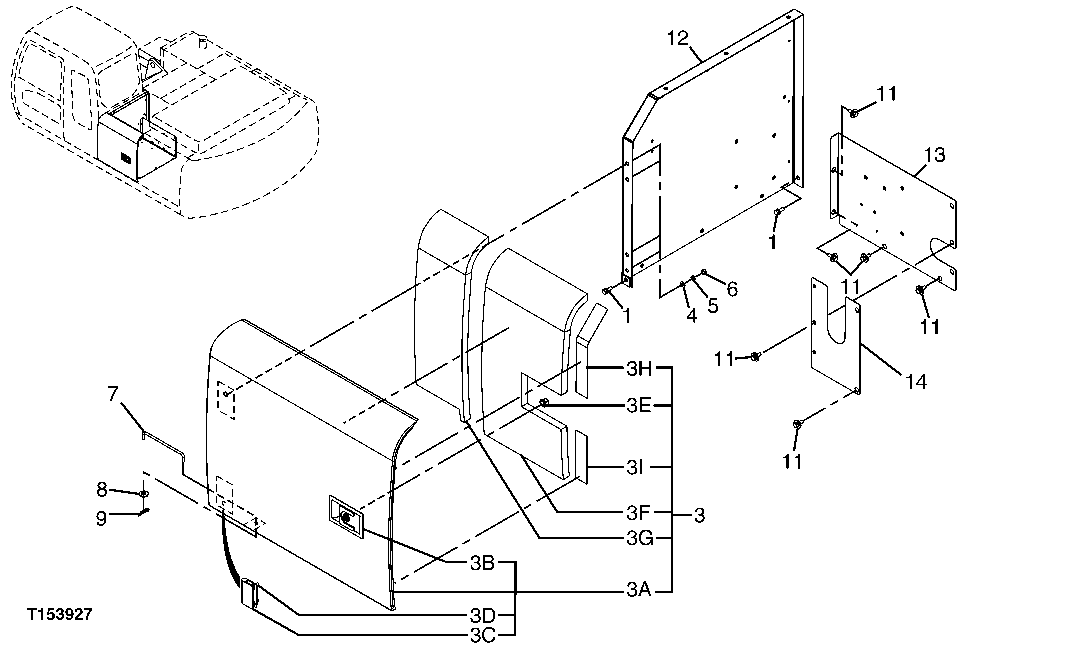

Запчасти John Deere 70CLC 221 - DOOR AND COVERS 1910 HOOD OR ENGINE ENCLOSURE

1

19M7662

Cap Screw

M10 X 30

2шт.

12M7066

Lock Washer

10 mm

2шт.

24M7028

Washer

10.500 X 20 X 2 mm

2шт.

3

DH700048J

Door

1шт.

3A

Door

1шт.

3B

4409394

Lock

1шт.

3C

Hinge

2шт.

3D

19M7402

Cap Screw

M10 X 25

4шт.

12M7066

Lock Washer

10 mm

4шт.

24M7028

Washer

10.500 X 20 X 2 mm

4шт.

3E

4409396

Lock

(SUB FOR TH4409396)

1шт.

4409394

Lock

1шт.

3F

4436648

Isolator

(SUB FOR TH4436648)

1шт.

3G

4438027

Isolator

(SUB FOR TH4438027)

1шт.

3H

4453760

Isolator

(SUB FOR TH4453760)

1шт.

3I

4453765

Isolator

(SUB FOR TH4453765)

1шт.

3J

Clip

( TH4461342 NLA)

1шт.

4

24M7028

Washer

10.500 X 20 X 2 mm

4шт.

5

12M7066

Lock Washer

10 mm

4шт.

6

14M7274

Nut

M10

4шт.

7

4341788

Rod

(SUB FOR AT213884 OR 4341788J)

1шт.

8

24M7055

Washer

8.400 X 16 X 1.600 mm

1шт.

9

H132922

Cotter Pin

1шт.

11

19M7662

Cap Screw

M10 X 30

6шт.

12M7058

Lock Washer

12 mm (SUB FOR 12M7067)

6шт.

24M7346

Washer

11 X 20 X 2 mm

6шт.

12

7035539

Cover

(SUB FOR TH7035539)

1шт.

13

8083393

Cover

(SUB FOR TH8083393)

1шт.

14

8086300

Cover

1шт.
