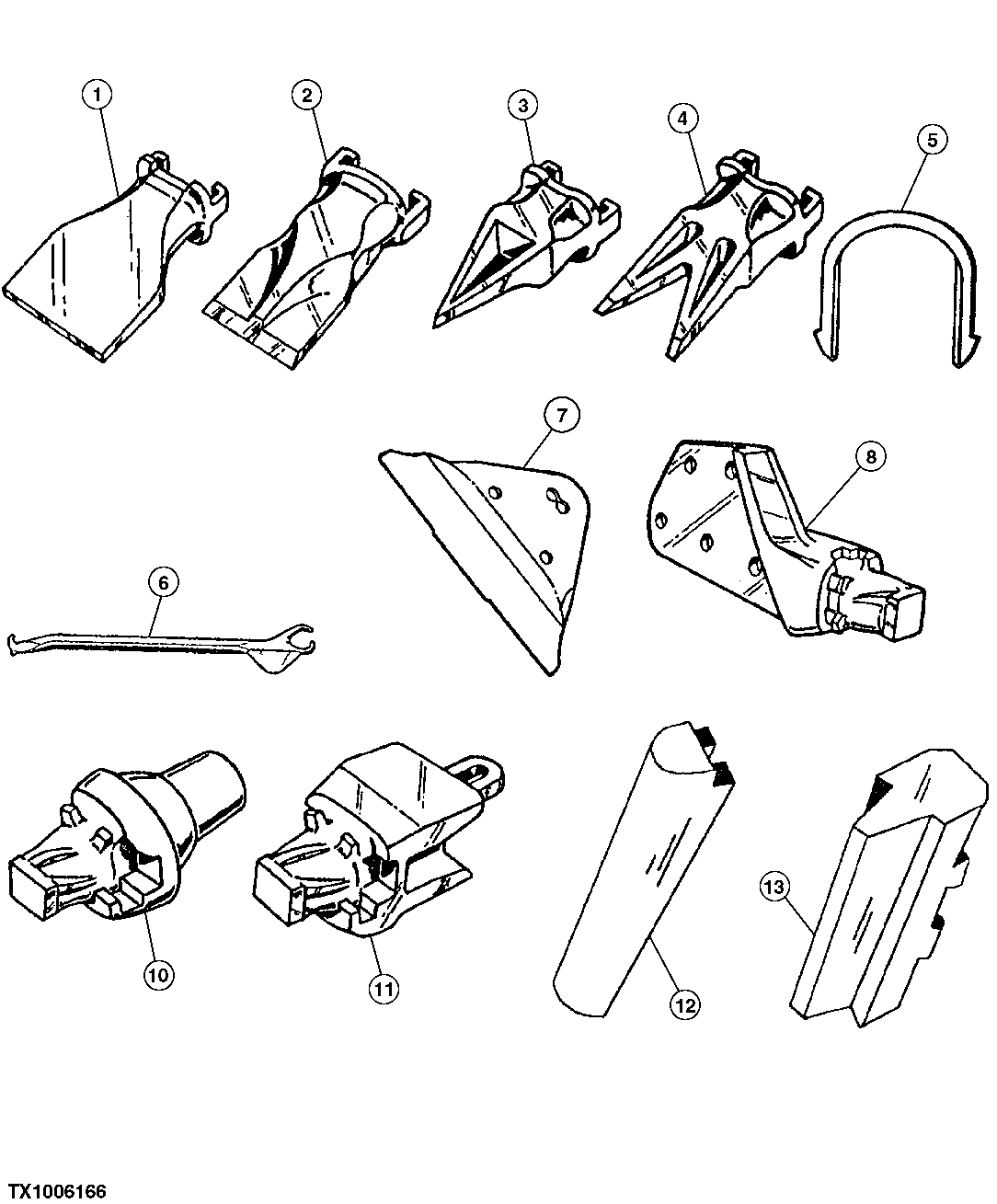

Запчасти John Deere 70CLC 266 - BUCKET CUTTING EDGES, TEETH AND ADAPTERS (SEE FOOTNOTE) 3302 BUCKET WITH TEETH

1

Tooth

EX37S7F NLA

ARшт.

2

EX37SYL

Tooth

ARшт.

Tooth

EX47SYL NLA

ARшт.

Tooth

EX21SYL NLA

ARшт.

EX27SYL

Tooth

ARшт.

3

Tooth

EX37VIP NLA

ARшт.

4

Tooth

EX37TVIP NLA

ARшт.

5

EX37LKS

Tooth Retainer

SUB FOR EX37LK

ARшт.

EX47LK

Pin

ARшт.

EX21LKS

Tooth Retainer

SUB FOR EX21LK

ARшт.

EX27LK

Pin

ARшт.

EX27VPN

Pin

ARшт.

6

EX3-4-57QRT

Tool

ARшт.

7

TPDE31329

Shroud

SUB FOR EX31329-X

ARшт.

8

Bucket Tooth Adapter

EX1550-21 NLA (LH)

ARшт.

Bucket Tooth Adapter

EX1551-21 NLA (RH)

ARшт.

10

Scarifier Attachment

( EX360-21 NLA)

ARшт.

11

EX119-21

Bucket Tooth Adapter

SUB FOR EX5831-21

ARшт.

EX129A-37

Bucket Tooth Adapter

ARшт.

Bucket Tooth Adapter

EX5824-37 NLA

ARшт.

EX1829A-47

Bucket Tooth Adapter

SUB FOR EX5827-27, EX27VPN AND EX27VPL

ARшт.

EX5849-21

Bucket Tooth Adapter

SUB FOR EX4894-21

ARшт.

Bucket Tooth Adapter

EX5850-27V NLA, SUB FOR EX5 827-27, EX27VPN AND EX27VPL)

ARшт.

EX5854-21

Bucket Tooth Adapter

SUB FOR EX5831-21

ARшт.

EX119-27

Bucket Tooth Adapter

SUB FOR EX5831-21

ARшт.

12

EX29W1

Wedge

SUB FOR T52975

ARшт.

EX20W1

Wedge

SUB FOR T38819

ARшт.

13

Spool

EX20SP NLA, SUB FOR T38818

ARшт.

Spool

EX29SP NLA, SUB FOR T52974

ARшт.

14

EX27VPL

Plug

Not Illustrated

ARшт.
