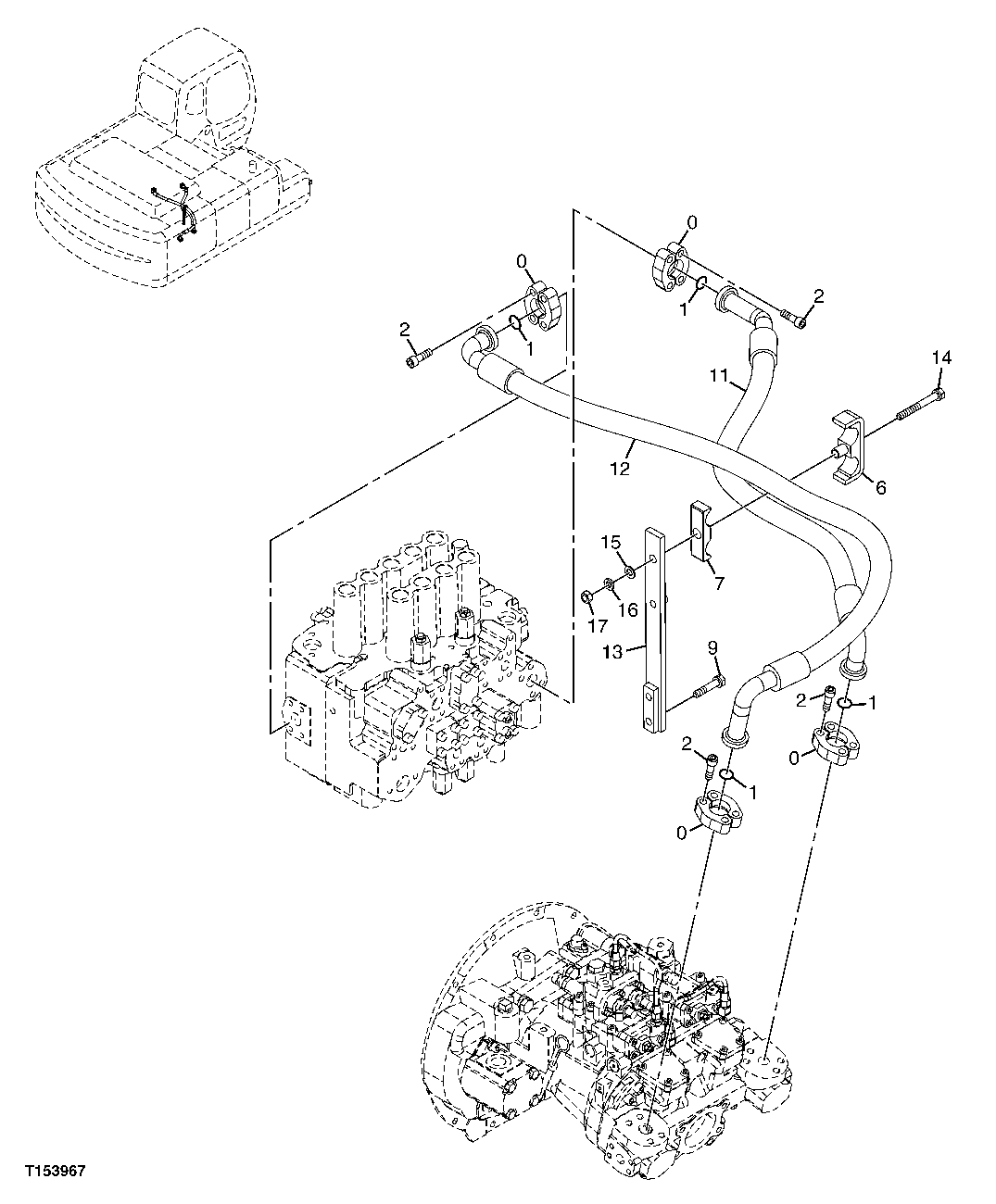

Запчасти John Deere 70CLC 336 - DELIVERY HYDRAULIC LINES 3363 Lines, Hoses & Fittings

0

4085560

Flange Fitting

8шт.

1

T78313

O-Ring

4шт.

2

19M9163

Screw

M12 X 40 SUB FOR J781240

16шт.

6

8065749

Half Clamp

1шт.

7

3075326

Half Clamp

1шт.

9

19M7363

Cap Screw

M12 X 60

2шт.

11

4393150

Hydraulic Hose

1шт.

12

4439022

Hydraulic Hose

1шт.

13

8086586

Bracket

1шт.

DH700031

Bracket

1шт.

14

19M7949

Cap Screw

M12 X 100 ALSO ORDER 12 M7058, SUB FOR AT128379

1шт.

15

24M7047

Washer

13 X 24 X 2.500 mm

1шт.

16

12H301

Lock Washer

1/2"

1шт.

17

14M7275

Nut

M12

1шт.
