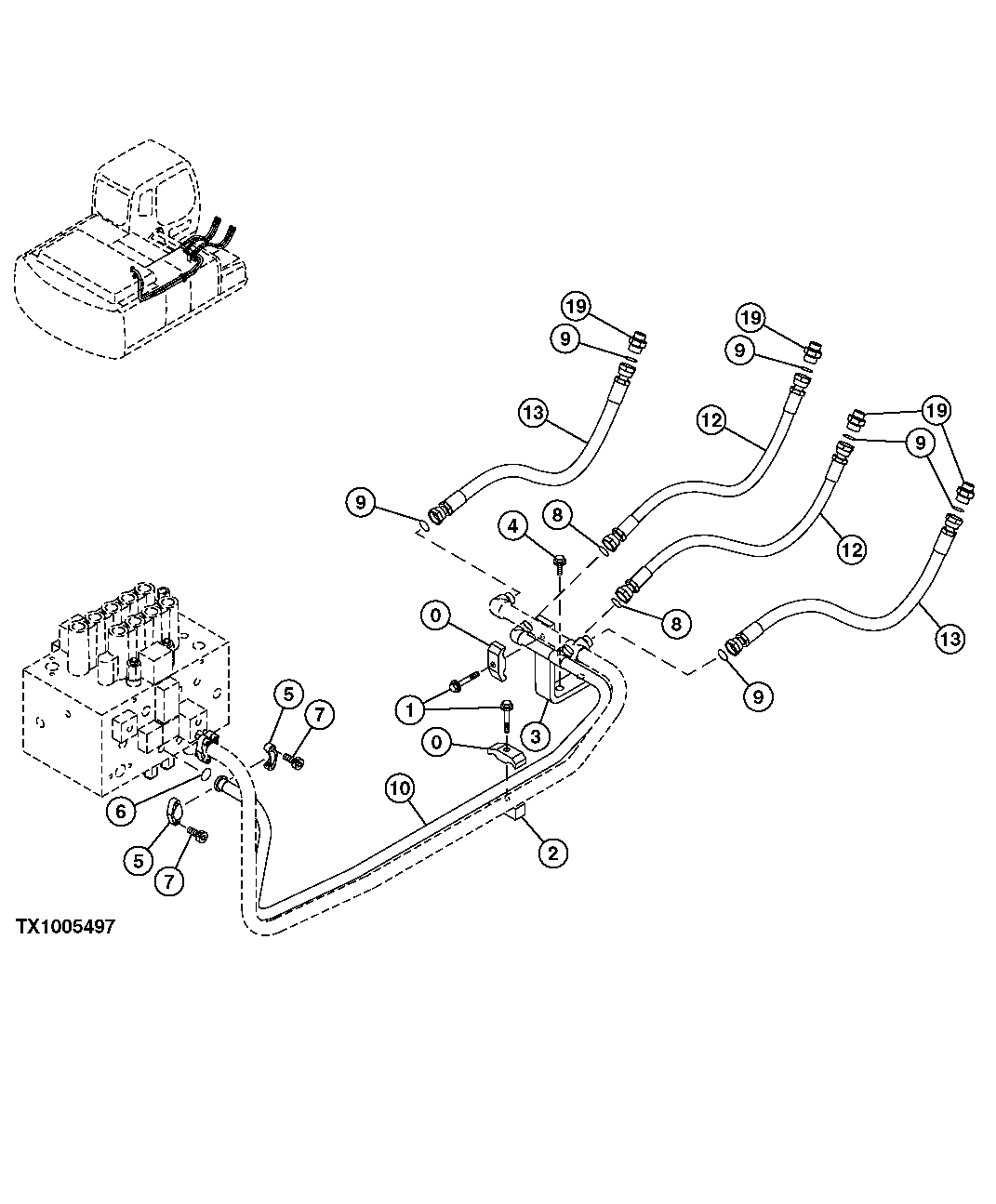

Запчасти John Deere 70CLC 340 - Boom Cylinder Hydraulic Lines 3363 Lines, Hoses & Fittings

0

4153488

Clamp

(SUB FOR TH103780)

2шт.

1

19M7753

Cap Screw

M12 X 70

2шт.

2

Strap

( AT155254 NOT AVAILABLE)

1шт.

3

9725460

Support

(SUB FOR TH109547)

1шт.

4

19M7872

Cap Screw

M12 X 25

2шт.

5

R29424

Flange Fitting

2шт.

6

T59014

O-Ring

1шт.

7

19M7576

Screw

M10 X 30 (SUB FOR J781030)

4шт.

8

T77858

O-Ring

2шт.

9

T76938

O-Ring

6шт.

10

8079307

Line

(SUB FOR TH8079307)

1шт.

12

AT218224

Hydraulic Hose

2шт.

13

AT218223

Hydraulic Hose

2шт.

19

A853166

Adapter Fitting

(SUB FOR THA853166)

4шт.
