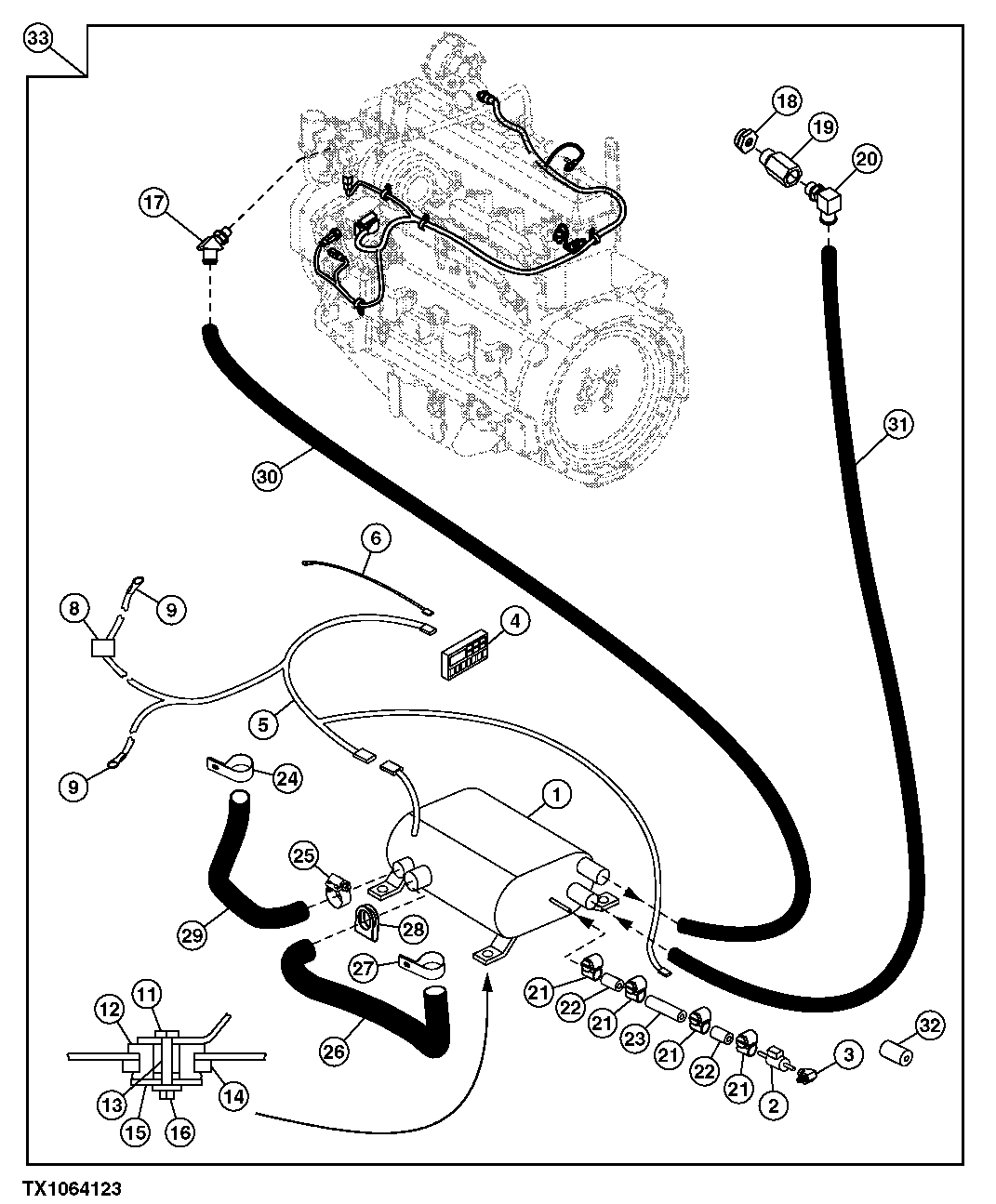

Запчасти John Deere 7C ZTS 217 - FUEL FIRED COOLANT HEATER KIT (KITS BUILT PRIOR TO MARCH 2009) 0505 COLD WEATHER STARTING AIDS

1

AT222697

Coolant Heater

1шт.

2

AT307812

Fuel Pump

1шт.

3

T120343

Tee Fitting

1шт.

4

AT221990

Digital Display

1шт.

5

AT307817

Wiring Harness

1шт.

6

AT307271

Wiring Lead

1шт.

8

AT307277

Wiring Lead

1шт.

9

Eyelet

1шт.

11

19M7874

Cap Screw

M6 X 30

4шт.

12

AT116162

Isolator

4шт.

13

L101283

Spacer

4шт.

14

24H1404

Washer

13/16" X 1-1/4" X 1/4"

4шт.

15

M142541

Washer

4шт.

16

N207956

Lock Nut

1шт.

17

AT221439

Elbow Fitting

To Open Port In Thermostat Housing Cover

1шт.

18

R123616

Plug

1шт.

19

RE520229

Adapter Fitting

SUB FOR RE68908

1шт.

20

AT221440

Fitting

4шт.

21

TY22462

Clamp

SUB FOR AR48236

2шт.

22

T177580

Hose

1шт.

23

T206125

Hose

1шт.

24

T179306

Clamp

1шт.

25

AR21837

Hose Clamp

1шт.

26

T206126

Exhaust Pipe

Exhaust Pipe

1шт.

27

T179306

Clamp

1шт.

28

AT221605

Clamp

1шт.

29

T206127

Bulk Hose

Air Inlet Hose

1шт.

30

Bulk Hose

90 in., CTL, MAKE FROM TY22330

1шт.

31

Bulk Hose

100 in., CTL, MAKE FROM TY22330

1шт.

32

AT307815

Kit

1шт.

33

Kit

AT307267 NLA, WHOLE GOODS Diesel Fired Engine Coolant Heater Kit

1шт.
