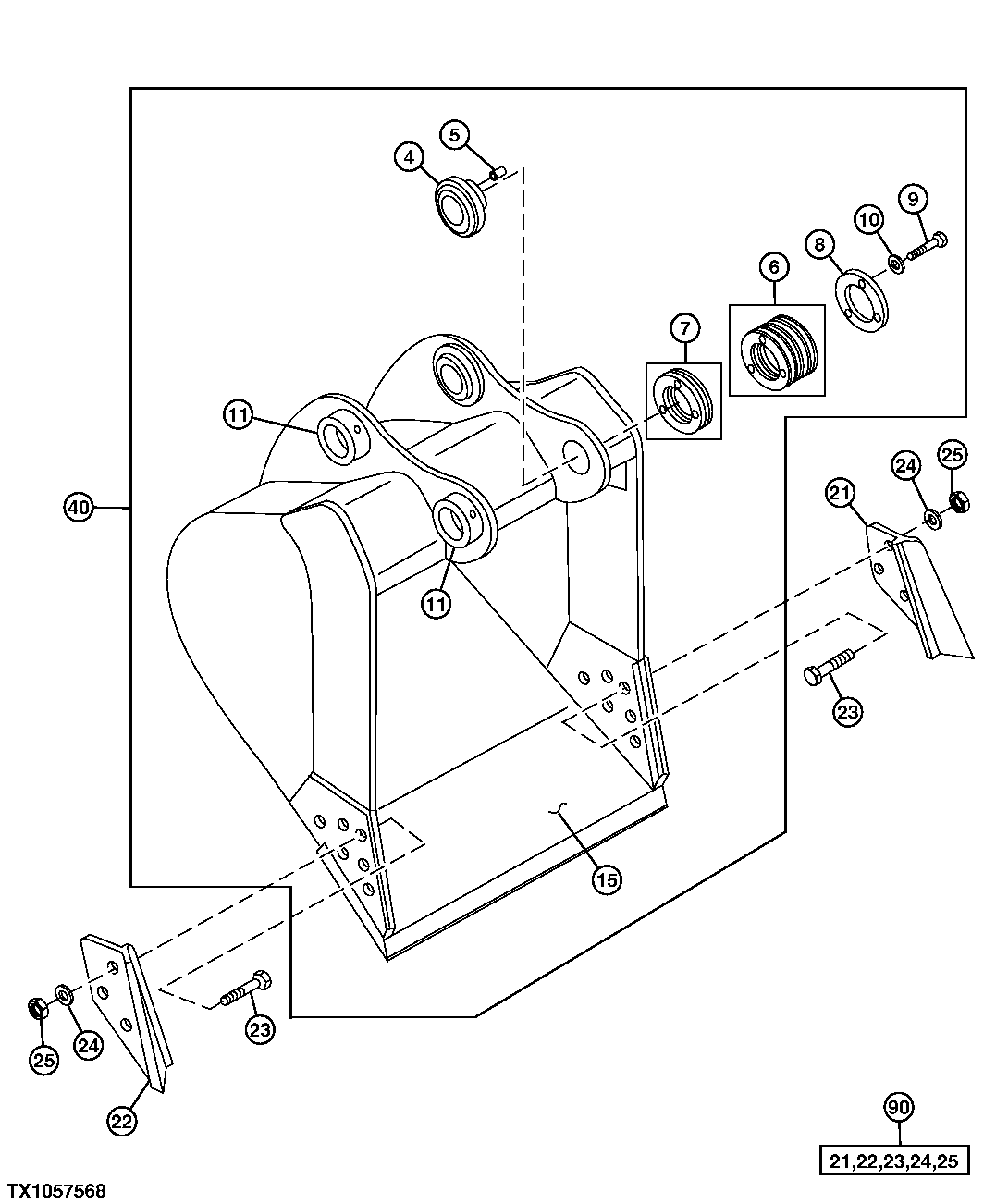

Запчасти John Deere 7C ZTS 506 - HEAVY DUTY HIGH CAPACITY BUCKET (48 INCH) (ALSO ORDER BUCKET TOOTH ASSEMBLIES) 3302 BUCKETS

4

AT131084

Bushing

1шт.

5

R48685

Dowel Pin

1шт.

6

TH102460

Washer

6шт.

7

TH102461

Shim

2шт.

8

Plate

(SUB FOR AT185646)( TH102463 NLA)

1шт.

9

19H2706

Cap Screw

5/8" X 2"

3шт.

10

12H294

Lock Washer

5/8"

3шт.

11

TH102409

Bushing

2шт.

15

AT131097

Dura-Max Cutting Edge

(CUT TO LENGTH)

1шт.

21

Cutting Edge

(SUB AT131085)

1шт.

22

Cutting Edge

(SUB AT131085)

1шт.

23

09H1771

Bolt

7/8" X 3"

6шт.

24

12H245

Lock Washer

7/8"

6шт.

25

14H1077

Nut

7/8"

6шт.

40

Excavator Bucket

(SUB AT332713)(WHOLE GOODS) ( 48 INCH - 2.03 CUBIC YARD) (RE QUIRES 6 TEETH) ( AT185645 NLA )

1шт.

90

End Bit

Side Cutter Kit ( AT131085 NLA)

1шт.
