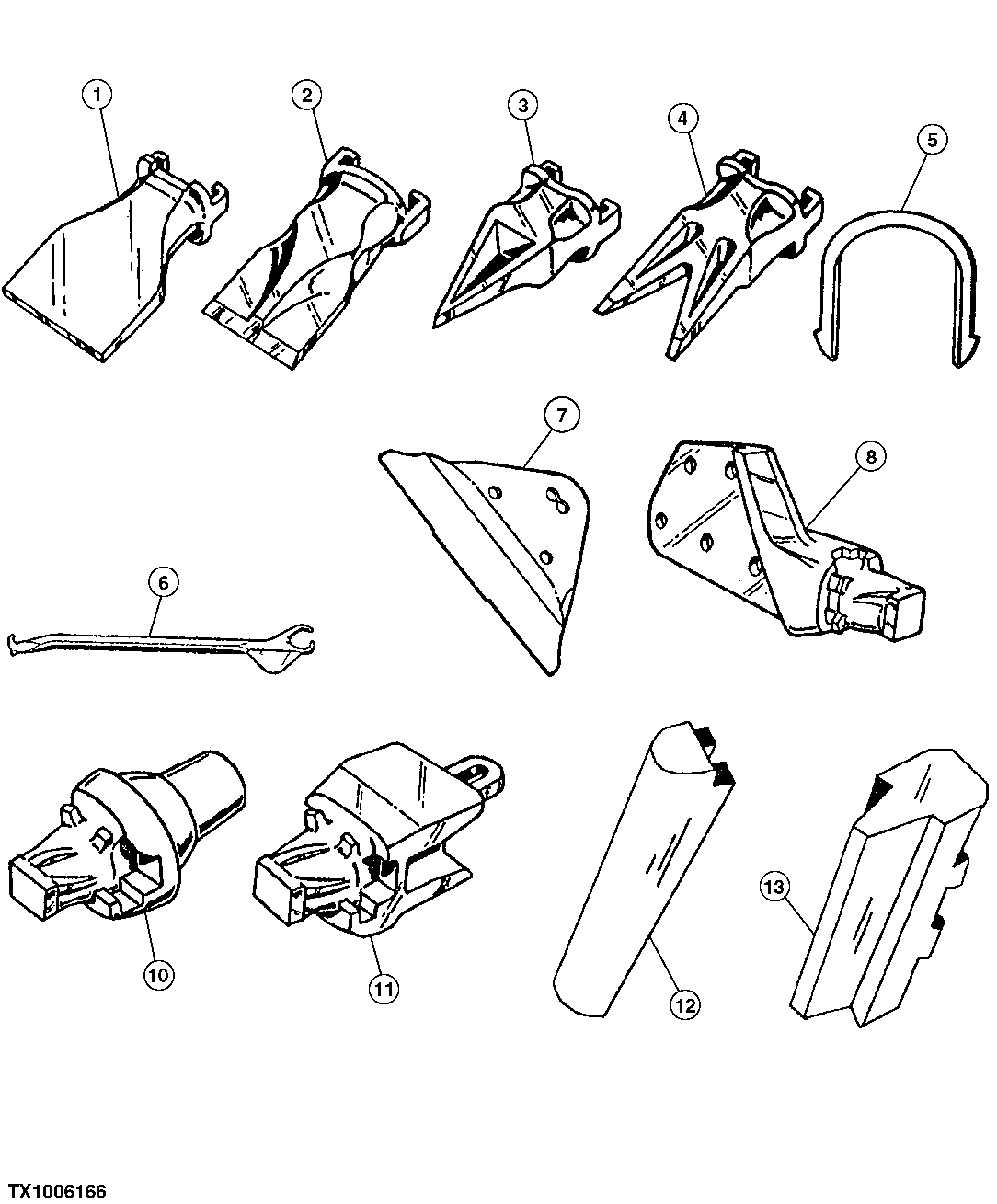

Запчасти John Deere 7C ZTS 515 - ESCO BUCKET CUTTING EDGES, TEETH AND ADAPTERS 3302 BUCKETS

1

EX21S5F

Tooth

ARшт.

2

Tooth

EX21SYL NLA

ARшт.

Tooth

EX47SYL NLA

ARшт.

EX27SYL

Tooth

ARшт.

EX37SYL

Tooth

ARшт.

3

EX21VIP

Tooth

ARшт.

4

EX21TVIP

Tooth

ARшт.

5

EX21LKS

Tooth Retainer

SUB FOR EX21LK

ARшт.

EX47LK

Pin

ARшт.

EX27LK

Pin

ARшт.

EX37LKS

Tooth Retainer

SUB FOR EX37LK

ARшт.

EX27VPN

Pin

ARшт.

6

EX21-27QRT

Tool

ARшт.

7

TPDE31329

Shroud

SUB FOR EX31329-X

ARшт.

8

Bucket Tooth Adapter

EX1550-21 NLA (LH)

ARшт.

Bucket Tooth Adapter

EX1551-21 NLA (RH)

ARшт.

10

Scarifier Attachment

( EX360-21 NLA)

ARшт.

11

Bucket Tooth Adapter

( EX119-21 NLA)

ARшт.

EX129A-37

Bucket Tooth Adapter

ARшт.

Bucket Tooth Adapter

EX5824-37 NLA

ARшт.

EX1829A-47

Bucket Tooth Adapter

ARшт.

EX5849-21

Bucket Tooth Adapter

SUB FOR EX4894-21

ARшт.

Bucket Tooth Adapter

EX5850-27V NLA

ARшт.

EX5854-21

Bucket Tooth Adapter

ARшт.

EX119-27

Bucket Tooth Adapter

ARшт.

12

EX29W1

Wedge

ARшт.

EX20W1

Wedge

ARшт.

13

Spool

EX20SP NLA

ARшт.

Spool

EX29SP NLA

ARшт.

14

EX27VPL

Plug

(NOT ILLUSTRATED)

ARшт.

15

Tooth

Not Illustrated EX39SYL NLA

ARшт.
