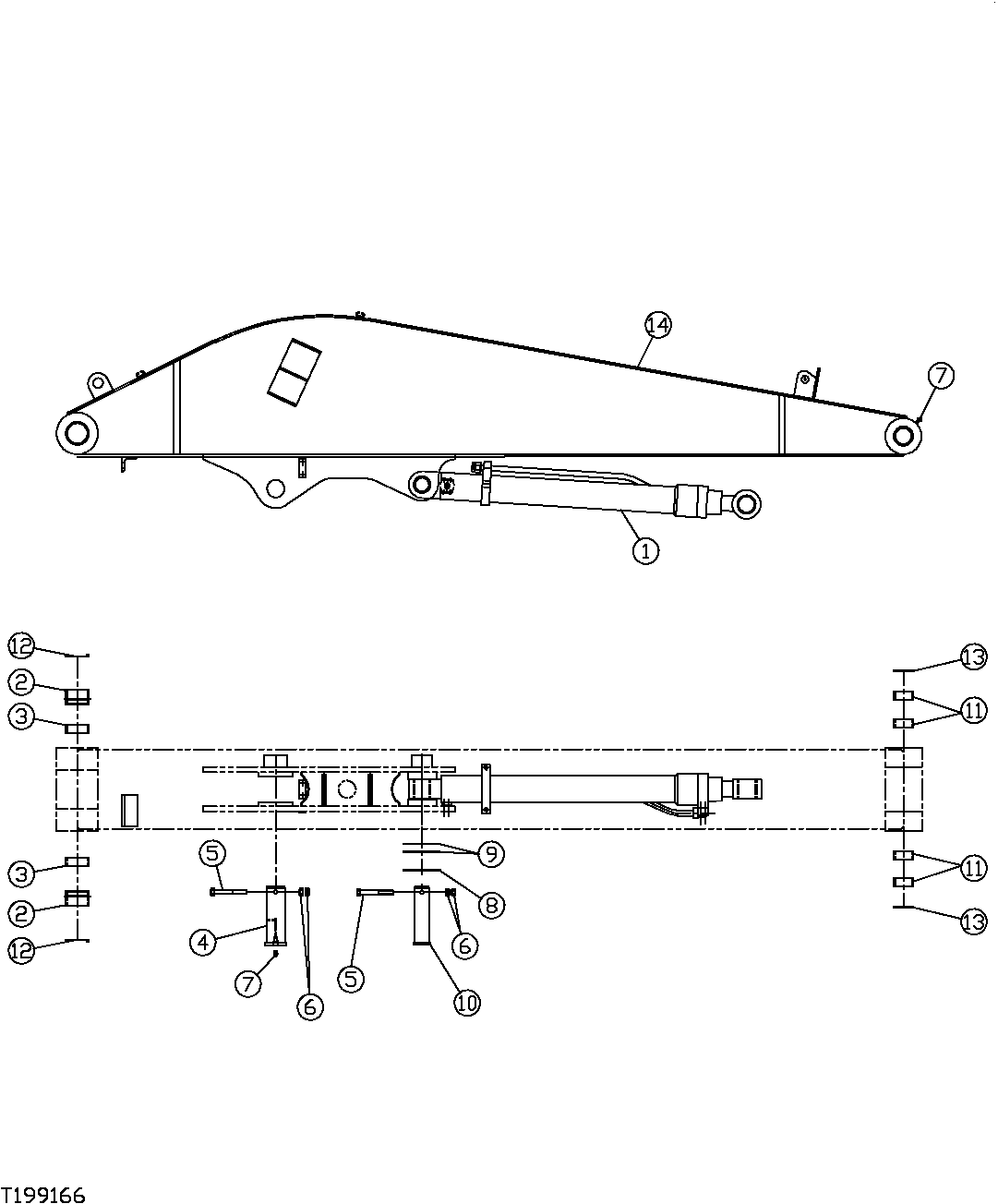

Запчасти John Deere 7C ZTS 535 - HEELER ARM (SWAMP LOGGER), PINS AND BUSHINGS 3340 Backhoe & Excavator Frames

1

AH207408

Hydraulic Cylinder

(MODIFY CYLINDER BY ROT ATING HEAD 180 DEGREES)

1шт.

2

4443885

Bushing

(SUB FOR FFSB100055)

2шт.

3

4364501

Bushing

2шт.

4

FFSB107287

Pin Fastener

1шт.

5

19M8503

Cap Screw

M20 X 160 (SUB FOR FFSB109229)

2шт.

6

14M7277

Nut

M20 (SUB FOR FFSB109330)

4шт.

7

JD7769

Lubrication Fitting

(SUB FOR FFSB104342)

3шт.

8

4367410R

Thrust Washer

(SUB FOR FFSB108125, TH105592 OR 4367410)

1шт.

9

4366692R

Thrust Washer

(SUB FOR FFSB108126, TH105593 OR 4366692)

2шт.

10

FF105533

Pin

(SUB FOR FFSB107289)

1шт.

11

4352398

Bushing

(SUB FOR FFSB102565)

4шт.

12

TH102411

Seal

2шт.

13

TH102446

Seal

2шт.

14

19M7921

Cap Screw

M20 X 150

1шт.

15

FFSB113262

Arm

1шт.
