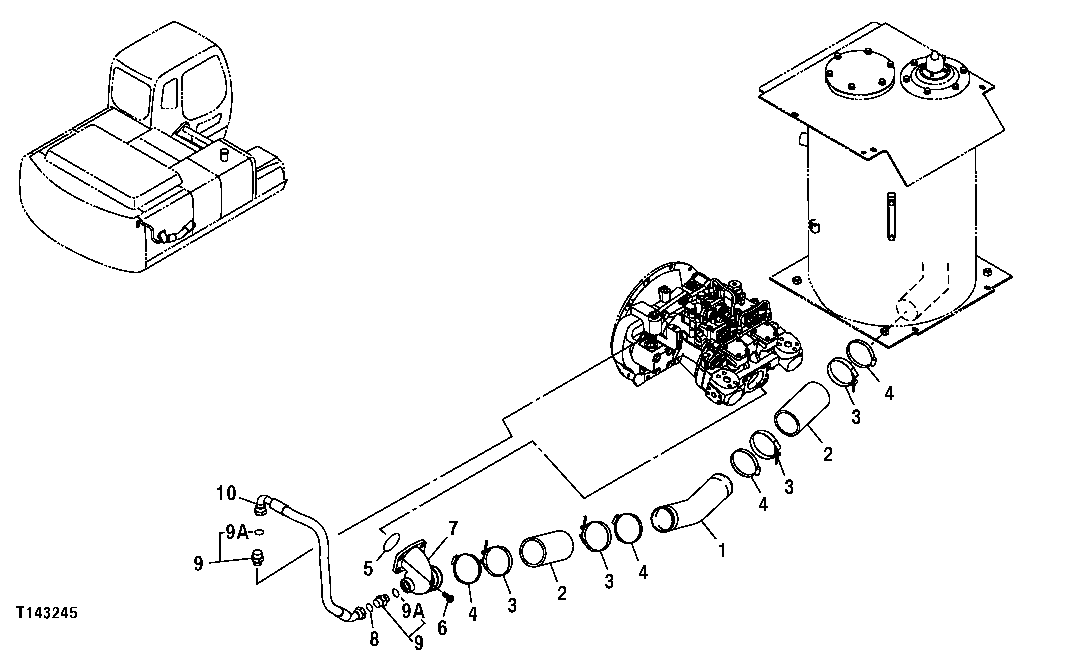

Запчасти John Deere 7C ZTS 561 - HYDRAULIC RESERVOIR TO PUMP LOW PRESSURE HOSES AND LINES 3363 LINES, HOSES & FITTINGS

1

7040198

Line

(SUB FOR TH7040198)

1шт.

2

4348414

Hose

(SUB FOR AT176844)

2шт.

3

Z29925

Clamp

(SUB FOR AH103182)

4шт.

4

AT56658

Hose Clamp

4шт.

5

CH17854

Packing

1шт.

6

J781228

Bolt

(SUB FOR P61967 ) (SUB FOR AT214412)

4шт.

7

2037825

Manifold

(SUB FOR AT176799)

1шт.

8

T77858

O-Ring

18.771 X 1.778 mm (0.739" X 0.070")

1шт.

9

THA853166

Adapter Fitting

2шт.

9A

AT318035

O-Ring

(SUB FOR 4506424, TH100055)

2шт.

10

4442642

Hydraulic Hose

(SUB FOR TH4442642)

1шт.
