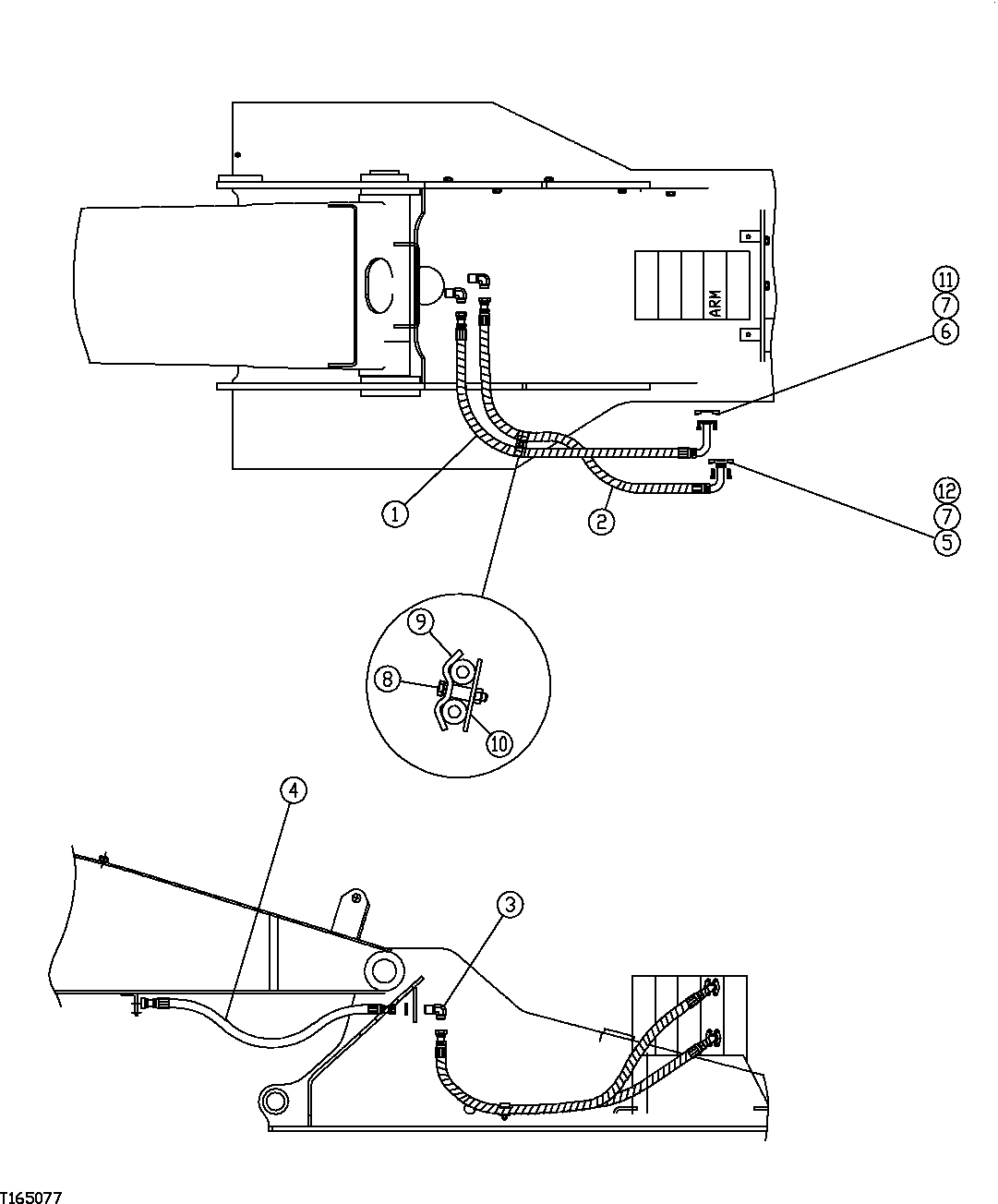

Запчасти John Deere 7C ZTS 598 - CONTROL VALVE TO BOOM LINE HOSES (LOG LOADER ARM CYLINDER LINE) 3363 LINES, HOSES & FITTINGS

1

FFSB111816

Hydraulic Hose

(SUB FOR FFSB111814)

1шт.

Cover

( FFSB111784 NLA) (FURNISH XHG-150, CUT TO 2050 MM LENGTH) (SUB FOR FFSB111814)

1шт.

2

FFSB111817

Hydraulic Hose

(SUB FOR FFSB111815)

1шт.

Cover

( FFSB111784 NLA) (FURNISH XHG-150, CUT TO 2050 MM LENGTH) (SUB FOR FFSB111815)

1шт.

3

38H1456

Elbow Fitting

(SUB FOR FFSB102228)

2шт.

T78715

Nut

2шт.

T76938

O-Ring

4шт.

4

FFSB106604

Hydraulic Hose

2шт.

5

H61354

Flange Fitting

(SUB FOR FFSB110184)

2шт.

6

XM1H-12

Flange Fitting

(SUB FOR FFSB103504)

2шт.

7

19M7576

Screw

M10 X 30 (SUB FOR FFSB109271 OR J781030)

8шт.

8

19M8348

Cap Screw

M12 X 65 (SUB FOR FFSB106424)

1шт.

12H301

Lock Washer

1/2"

1шт.

9

4202103

Clamp

(SUB FOR FFSB106422)

1шт.

10

9736782

Clamp

(SUB FOR FFSB106423)

1шт.

11

X711510-5

O-Ring

(SUB FOR FFSB103505)

1шт.

12

T78313

O-Ring

(SUB FOR FFSB106430)

1шт.
