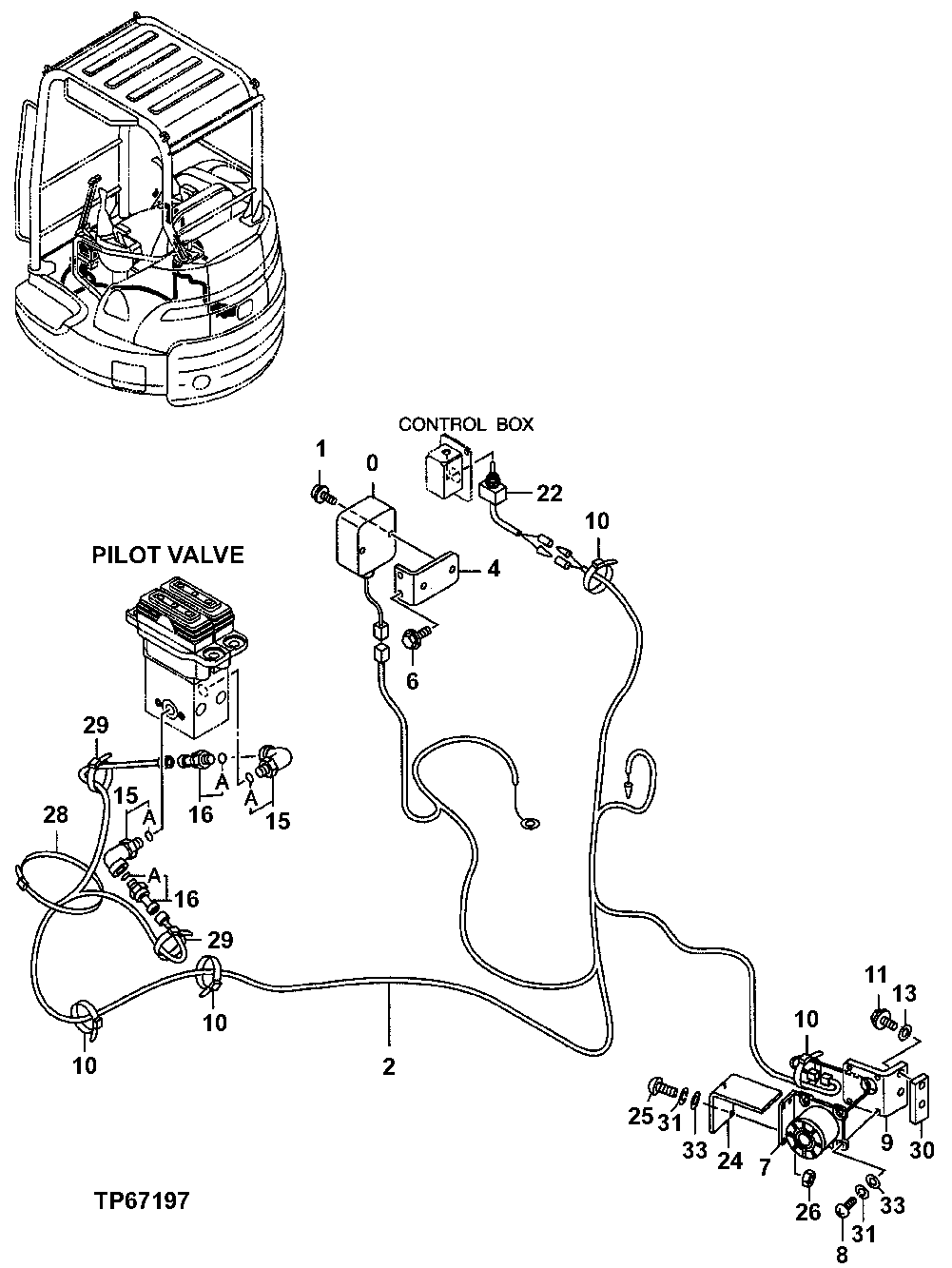

Запчасти John Deere 7ZTS 63 - Travel Motion Alarm 1674 Wiring Harness And Switches

0

4469599

Vehicle Controller

Travel Alarm Controller (S UB FOR TH4437179, 4437179)

1шт.

1

21M7277

Screw

M6 X 25

2шт.

12M7006

Lock Washer

6 mm

2шт.

24M7293

Washer

6.500 X 13 X 1.600 mm

2шт.

2

4439098

Wiring Harness

(SUB FOR TH4439098)

1шт.

4

9753955

Bracket

(SUB FOR TH9753955)

1шт.

6

19M7407

Cap Screw

M8 X 25

2шт.

24M7055

Washer

8.400 X 16 X 1.600 mm

2шт.

12M7056

Lock Washer

8 mm

2шт.

7

4436499

Travel Warning Alarm

(SUB FOR TH4436499)

1шт.

8

21M7265

Screw

M5 X 12

4шт.

9

8080138

Bracket

(SUB FOR TH8080138)

1шт.

10

H77698

Tie Band

9шт.

11

0326551

Cap Screw

M8 X 14 (SUB FOR AT133773)

2шт.

12M7056

Lock Washer

8 mm

2шт.

13

12M7036

Lock Plate

2шт.

15

4376846

Elbow Fitting

(SUB FOR TH4376846)

2шт.

15A

M80060

Spacer

1шт.

16

4332040

Sensor

(SUB FOR AT213840)

2шт.

16A

M800650

Packing

1шт.

22

4427099

Toggle/Rocker Switch

(SUB FOR TH4427099)

1шт.

24

4428099

Cover

(SUB FOR TH4428099)

1шт.

25

21M7265

Screw

M5 X 12

2шт.

26

14M7139

Nut

M4

2шт.

28

H77698

Tie Band

(SUB FOR TH4323613 OR 4323613)

1шт.

29

R44302

Tie Band

(SUB FOR TH4326365)

2шт.

30

4430011

Plate

(SUB FOR TH4430011)

1шт.

31

12M7064

Lock Washer

5 mm

6шт.

33

24M7027

Washer

5.300 X 10 X 1 mm

6шт.
