117 - HEAVY DUTY BUCKET (20", 24")

Запчасти John Deere 7ZTS 117 - HEAVY DUTY BUCKET (20", 24") 3302 BUCKETS, TEETH, SHANKS AND SIDECUTTERS

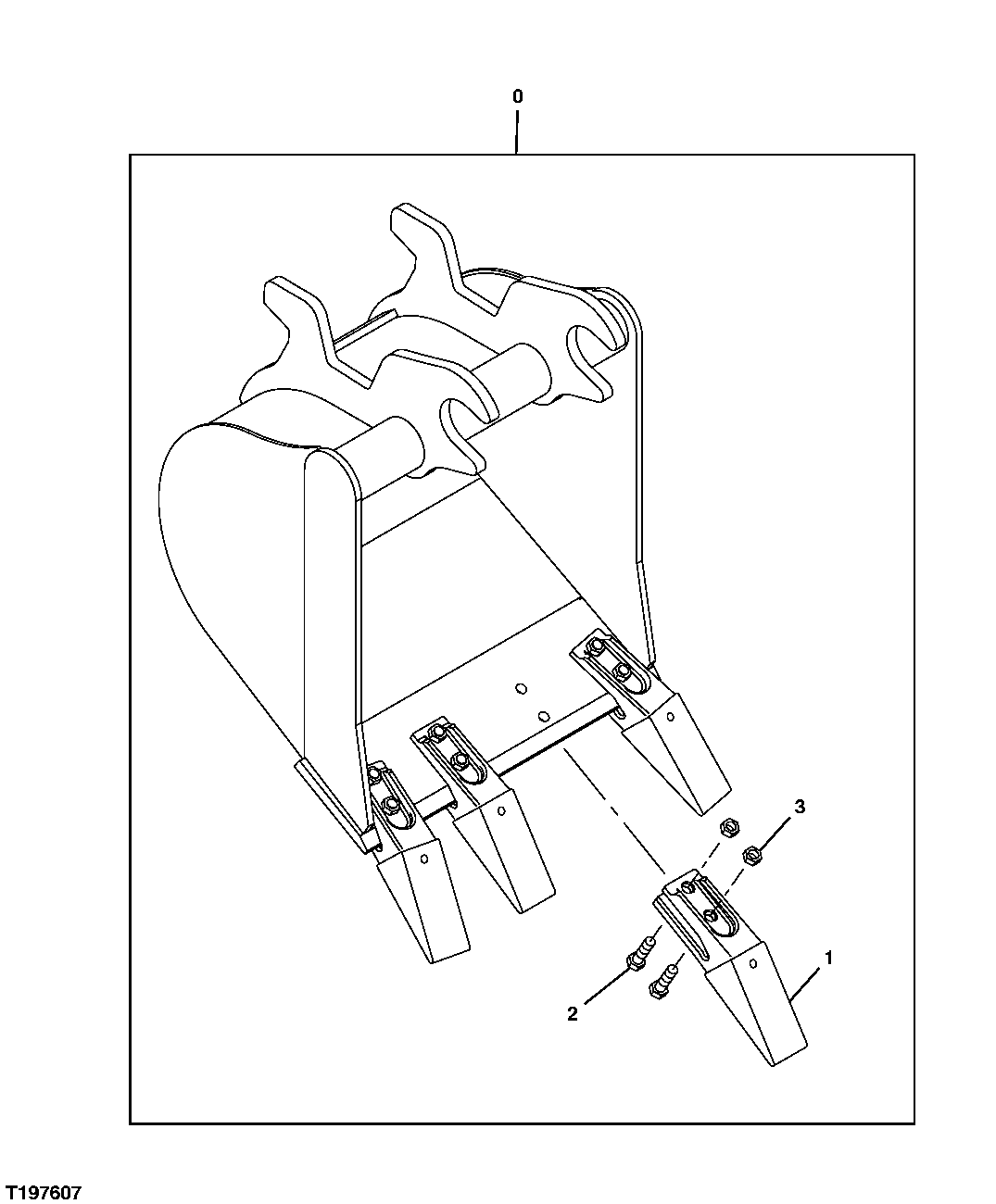

Схема запчастей John Deere 7ZTS - 117 - HEAVY DUTY BUCKET (20", 24") 3302 BUCKETS, TEETH, SHANKS AND SIDECUTTERS
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

0

Excavator Bucket

(20" 2.8 CU. FT.) WHOLEGOODS AT308587 NO LONGER AVAILABLE, FURNISH AT316553

1шт.

Excavator Bucket

(24" 3.4 CU. FT.) WHOLEGOODS AT308588 NO LONGER AVAILABLE, FURNISH AT316554

1шт.

1

TX156

Tooth

156 STANDARD

4шт.

Bucket Tooth Adapter

T206715 AND T116X156 NLA

1шт.

TP156

Spring Pin

1шт.

2

19H1777

Cap Screw

1/2" X 1-3/4"

8шт.

3

14H1040

Nut

1/2"

8шт.
