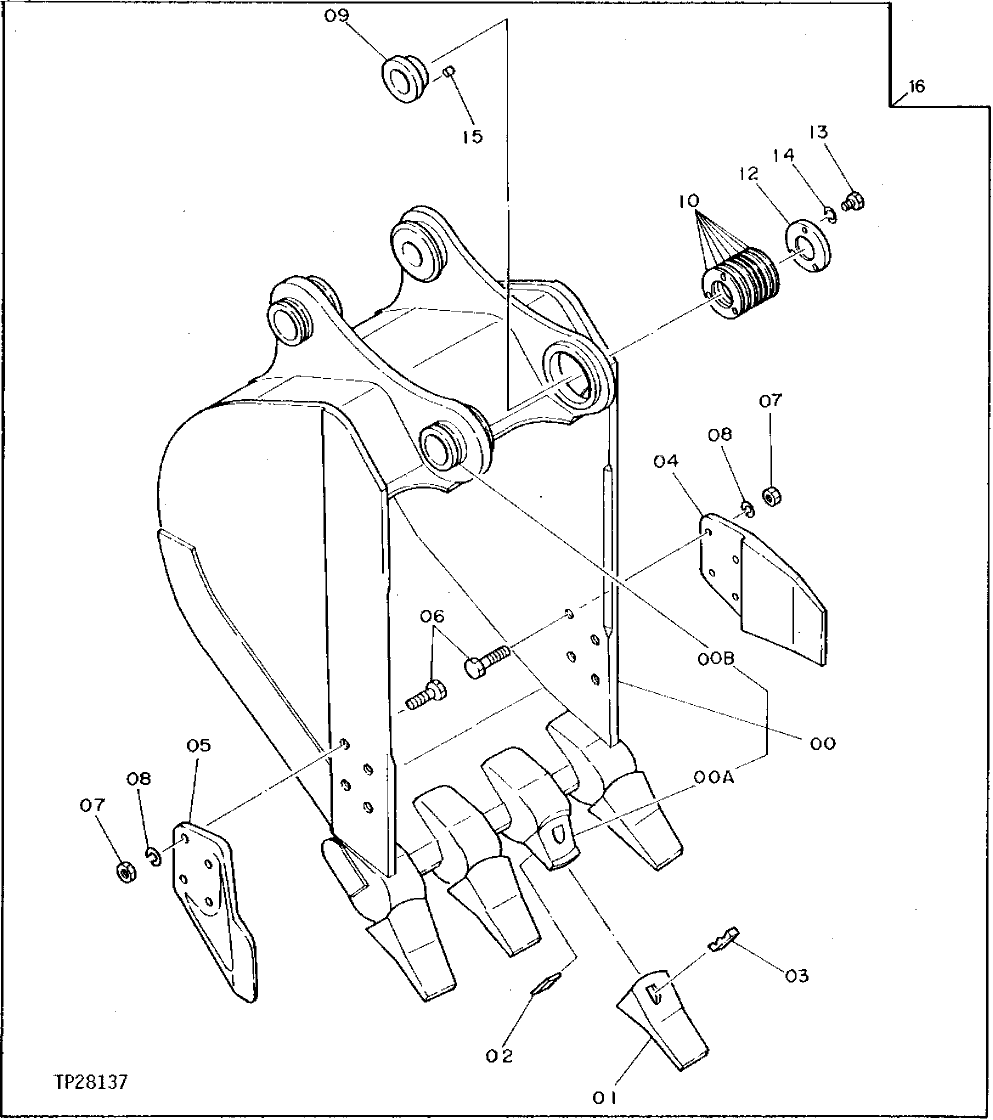

Запчасти John Deere 90D 140 - BUCKET (3/8 CUBIC YARDS - .24 CUBIC METERS) 3302 BUCKETS, TEETH, SHANKS AND SIDE CUTTERS

0

Excavator Bucket

( AT130753 NLA) (ORDER DIREC TLY FROM CENTRAL FABRICATORS)

1шт.

0A

4606716

Adapter

(K) (SUB FOR AT130364)

4шт.

0B

T115092

Bushing

2шт.

1

T25S

Tooth

(K) (SUB FOR T115117)

4шт.

2

T2530PN

Pin Fastener

(K) (SUB FOR TH100340)

4шт.

3

T2530LK

Lock

(K) (SUB FOR TH100341)

4шт.

4

4646805

Cutterbar

(SUB FOR TH100342 OR 2015428)

1шт.

5

4646806

Cutter Tooth

(SUB FOR TH100343 OR 2015429)

1шт.

6

19M7597

Cap Screw

M20 X 50

8шт.

7

14M7277

Nut

M20

8шт.

8

12M7070

Lock Washer

20 mm (SUB FOR TH100503)

8шт.

9

3037347

Bushing

(SUB FOR AT130352)

1шт.

10

4198288

Washer

1MM (SUB FOR AT130401)

7шт.

12

AT130400

Plate

1шт.

13

19M7493

Cap Screw

M12 X 40

3шт.

14

12H301

Lock Washer

1/2"

3шт.

15

4198156

Pin Fastener

(SUB FOR TH110563)

1шт.

16

Excavator Bucket

( AT130317 OR AT130760 NLA) (ORDER DIRECTLY FROM CENTRAL FABRICATORS)

1шт.
