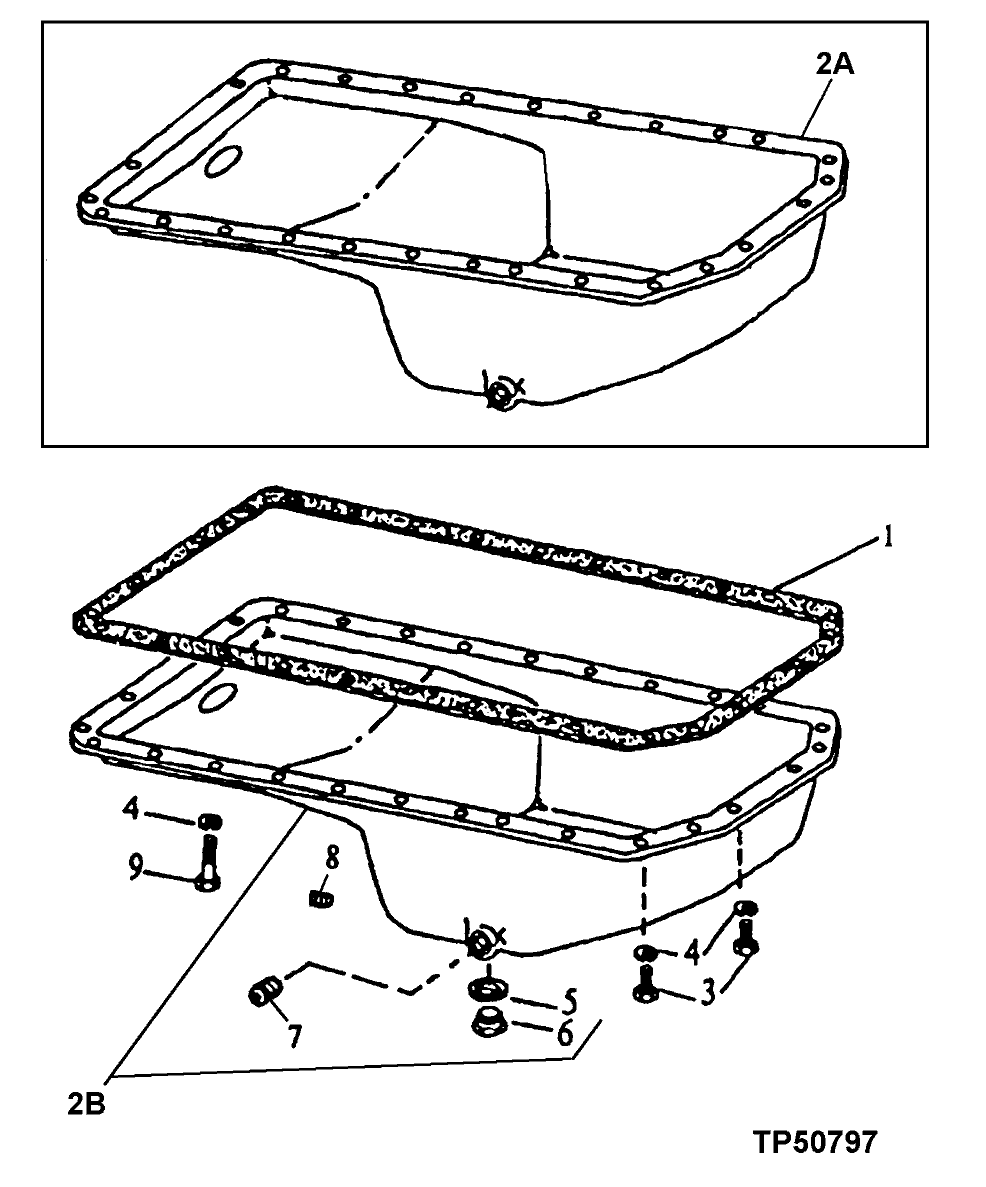

Запчасти John Deere 90D 26 - ENGINE OIL PAN 0407 OILING SYSTEM

1

R119360

Gasket

(SUB FOR R119360)

1шт.

2A

AR66726

Oil Pan

(ALSO ORDER T13213, T20098, RE5 7836 AND 15H690 ) (SUB AT67734)

1шт.

2B

AT67734

Oil Pan

1шт.

3

19H1936

Cap Screw

3/8" X 3/4"

6шт.

4

12H304

Lock Washer

3/8"

28шт.

5

T13213

Washer

1шт.

6

T20098

Drain Plug

1шт.

7

15H690

Pipe Plug

3/4" 3/4"

1шт.

8

RE57836

Pipe Plug

12.700 mm (1/2") (SUB FOR 15H624)

1шт.

9

19H1648

Cap Screw

3/8" X 3/4"

22шт.
