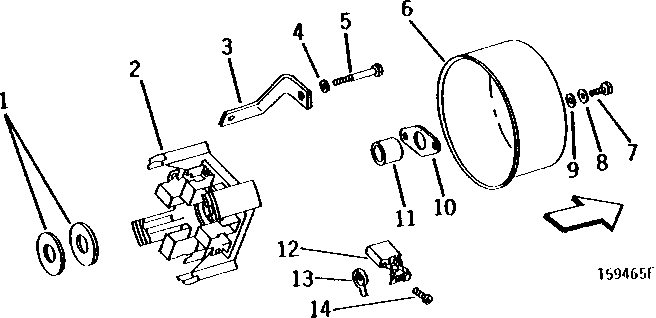

Запчасти John Deere 90D 50 - STARTING MOTOR COMMUTATOR AND END COVER 0422 STARTING MOTOR AND FASTENINGS

1

R50923

Shim

18 MM (.007")

2шт.

2

AR54997

Frame

1шт.

3

R51660

Bracket

2шт.

4

12H303

Lock Washer

5/16"

2шт.

5

R51659

Screw

2шт.

6

R50912

Cover

1шт.

7

R50931

Screw

2шт.

8

12H246

Lock Washer

0.190"

2шт.

9

24H1283

Washer

7/32" X 1/2" X 0.049"

2шт.

10

R50930

Gasket

1шт.

11

R50891

Bushing

1шт.

12

R65702

Brush

4шт.

13

R50928

Spring

4шт.

14

R50929

Screw

4шт.

15

RE15718

Starter Motor

(NOT ILLUSTRATED) (CONTAINS ALL ITEMS ON THIS PAGE, ADDITIONAL COMPONENTS LISTED ON OTHER PAGES )

1шт.

SE501419

Starter Motor Reman

(REMAN FOR RE15718)

1шт.
