4 - BOOM, ARM, BUCKET, BUCKET LINKAGE, SWING BRACKET AND PINS

Запчасти John Deere 0 4 - BOOM, ARM, BUCKET, BUCKET LINKAGE, SWING BRACKET AND PINS 3302 - BACKHOE 33

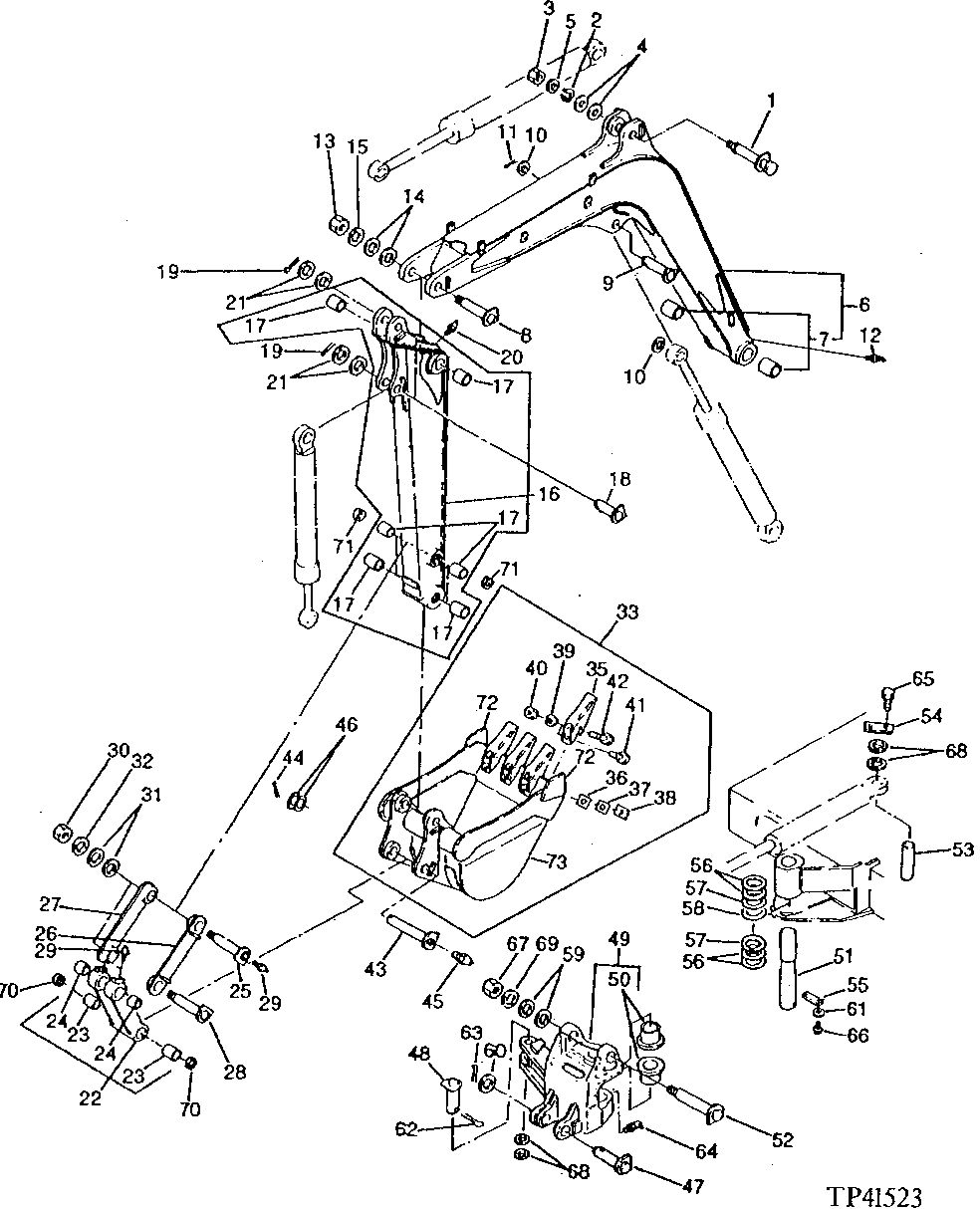

Схема запчастей John Deere 0 - 4 - BOOM, ARM, BUCKET, BUCKET LINKAGE, SWING BRACKET AND PINS 3302 - BACKHOE 33
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

48

AT110389

PIN FASTENER

1шт.

49

AT110077

BRACKET

1шт.

50

T110190

BUSHING

2шт.

51

T111127

PIN FASTENER

1шт.

52

AT110464

PIN FASTENER

1шт.

53

T111016

PIN FASTENER

1шт.

54

T110082

PLATE

1шт.

55

T110043

PLATE

1шт.

56

T110045

WASHER

4шт.

57

T110046

WASHER

2шт.

58

T110048

WASHER

1шт.

59

T110049

WASHER

2шт.

60

T110049

WASHER

2шт.

61

24M7047

WASHER

13 X 24 X 2.500 MM

2шт.

62

11M7056

COTTER PIN

8 X 50 MM, (SUB FOR T110927)

1шт.

63

11M7073

COTTER PIN

8 X 63 MM, (SUB FOR T110424)

1шт.

64

CH18478

ELBOW FITTING

1шт.

65

12M7066

LOCK WASHER

10 MM

2шт.

19M7166

CAP SCREW

M10 X 20

2шт.

66

12M7058

LOCK WASHER

12 MM, (SUB FOR 12M7067)

2шт.

19M8011

CAP SCREW

M12 X 30

2шт.

67

T110490

NUT

1шт.

68

24H1535

WASHER

(SUB FOR AT110608) (ONE SET CONTAINS TWO SHIMS) (USE IF AVAILABLE)

2шт.

24H1535

WASHER

38.887 X 56.363 X 0.813 MM (1-17/32" X 2-7/32" X 0.032") (SUB FOR AT110608)

2шт.

69

T110935

WASHER

1шт.

70

T110189

SEAL

2шт.

71

T110189

SEAL

4шт.

72

T114141

CUTTING EDGE

2шт.

73

EXCAVATOR BUCKET

(NO LONGER AVAILABLE FOR SERVICE)

1шт.
