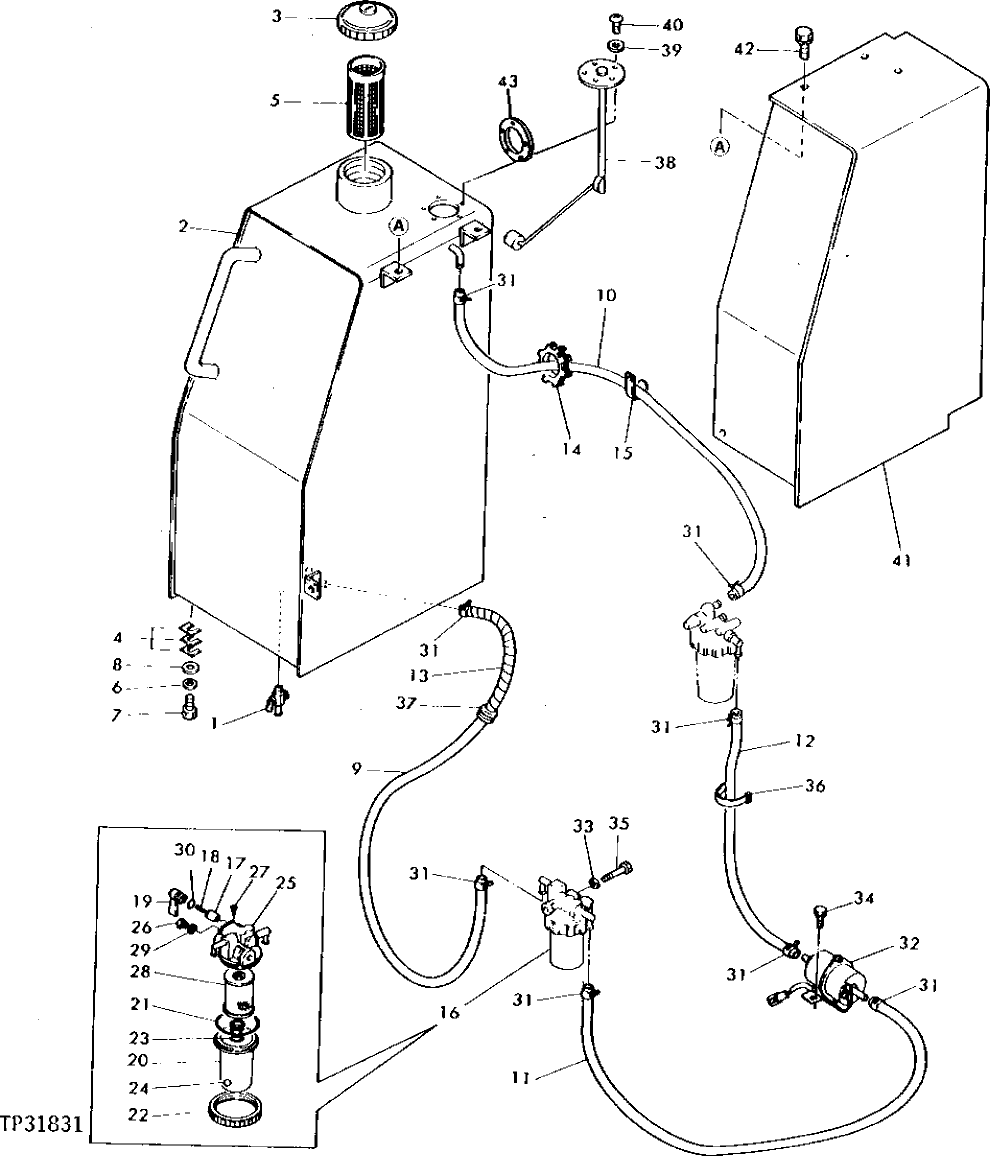

Запчасти John Deere 0 2 - FUEL TANK, FUEL LINES, WATER SEPARATOR AND TRANSFER PUMP 560 - ENGINE AUXILIARY SYSTEM 5

1

T110803

HAND OPERATED VALVE

1шт.

2

AT110396

FUEL TANK

1шт.

3

T110805

FILLER CAP

1шт.

4

T110080

SPACER

2шт.

5

M800354

FUEL FILTER

1шт.

6

12M7068

LOCK WASHER

14 MM

4шт.

7

T110806

BOLT

(INCLUDES AJUSTING SPRING)

4шт.

T110818

SPRING

4шт.

8

T110615

WASHER

4шт.

9

T111025

HYDRAULIC HOSE

1шт.

10

T111025

HYDRAULIC HOSE

1шт.

11

T111026

HYDRAULIC HOSE

1шт.

12

T110303

LINE

1шт.

13

T111027

OIL LINE

1шт.

14

T110088

BUSHING

1шт.

15

T111144

CLAMP

1шт.

16

T110808

SEPARATOR

1шт.

17

CH12734

VALVE

1шт.

18

CH10082

SPRING

1шт.

19

CH12735

HANDLE

1шт.

20

CH15552

BOWL

1шт.

21

CH10060

PACKING

1шт.

22

CH10106

RING

1шт.

23

CH16888

SPRING

1шт.

24

T111401

FLOAT

1шт.

25

HOUSING

(SUB T110808)

1шт.

26

CH10059

PLUG

2шт.

27

CH10084

SCREW

1шт.

28

T111005

SCREEN

1шт.

29

CH10558

PACKING

2шт.

30

CH10571

PACKING

1шт.

31

TY22462

CLAMP

(SUB FOR AR48236)

8шт.

32

AT111831

FUEL PUMP

(SUB FOR AT110378)

1шт.

33

12M7056

LOCK WASHER

8 MM, (SUB FOR 12M7065)

1шт.

34

12M7006

LOCK WASHER

6 MM

2шт.

19M8425

CAP SCREW

M6 X 16

2шт.

35

19M7274

CAP SCREW

M8 X 70

1шт.

36

T110612

TIE BAND

2шт.

37

T110622

GROMMET

3шт.

38

AT110013

GAUGE

1шт.

39

T110411

SEALING WASHER

5шт.

40

CH10620

SCREW

5шт.

41

AT110409

COVER

USE WITH CANOPY, AUXILIARY VALVE AND CAB

1шт.

42

12M7066

LOCK WASHER

10 MM

3шт.

19M7166

CAP SCREW

M10 X 20

3шт.

43

R27181

GASKET

SENDING UNIT TO TANK

1шт.
