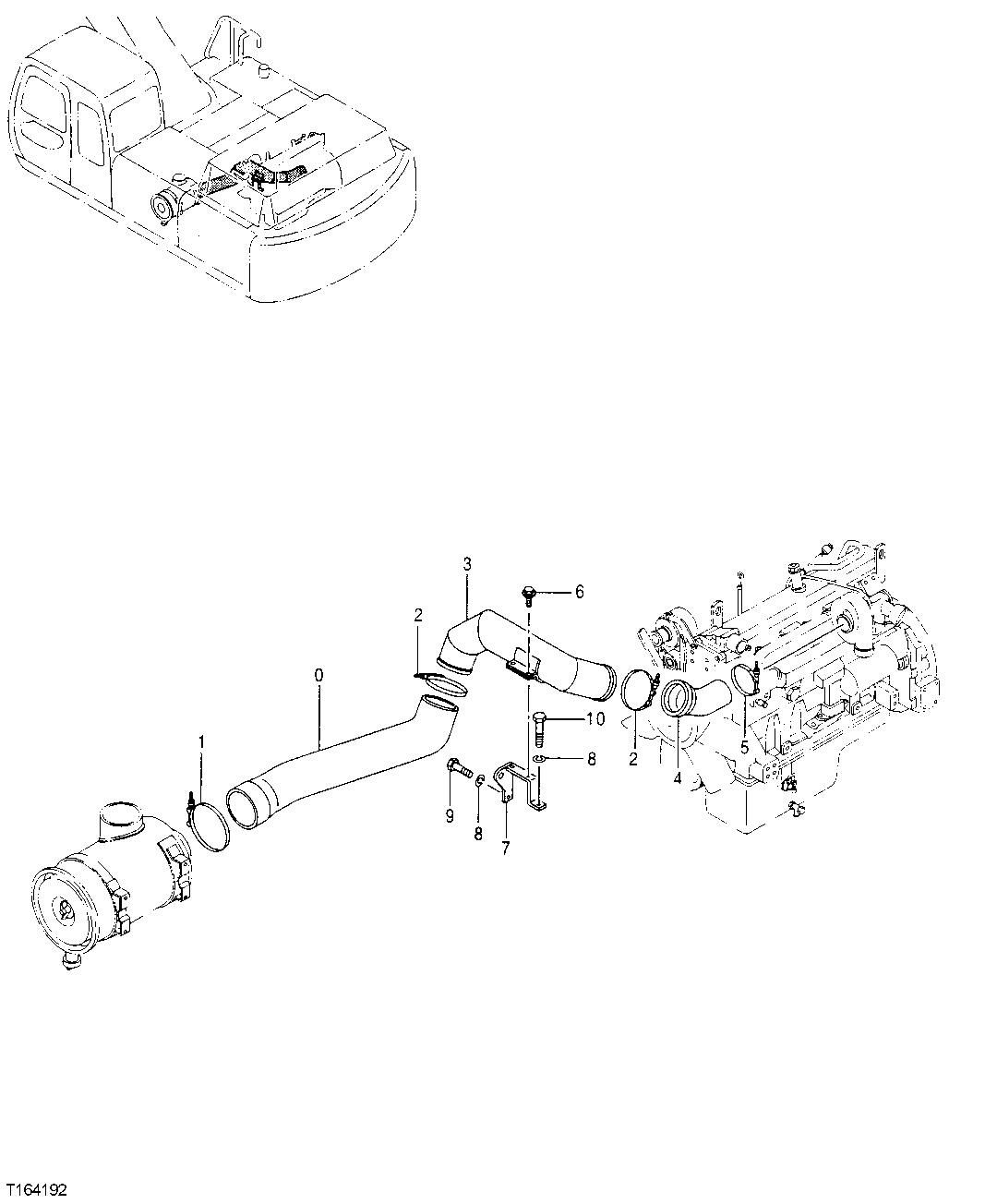

Запчасти John Deere 30CLC 177 - AIR CLEANER HOSES AND BRACKETS 0520 INTAKE SYSTEM

0

2047999

Hose

1шт.

1

4283989

Hose Clamp

(SUB FOR TH4283989)

1шт.

2

4283988

Hose Clamp

(SUB FOR AT219670)

2шт.

3

8071050

Line

(SUB FOR AT250228)

1шт.

4

4396366

Hose

(SUB FOR AT250106)

1шт.

5

AT56657

Hose Clamp

1шт.

6

19M7402

Cap Screw

M10 X 25

2шт.

12M7066

Lock Washer

10 mm

2шт.

24M7028

Washer

10.500 X 20 X 2 mm

2шт.

7

8086717

Bracket

1шт.

8

12H294

Lock Washer

5/8"

2шт.

9

19H2994

Cap Screw

5/8" X 1-1/2" (SUB FOR 19H1756)

1шт.

10

19H3244

Cap Screw

5/8" X 2-1/4" (SUB FOR 19H1824)

1шт.
