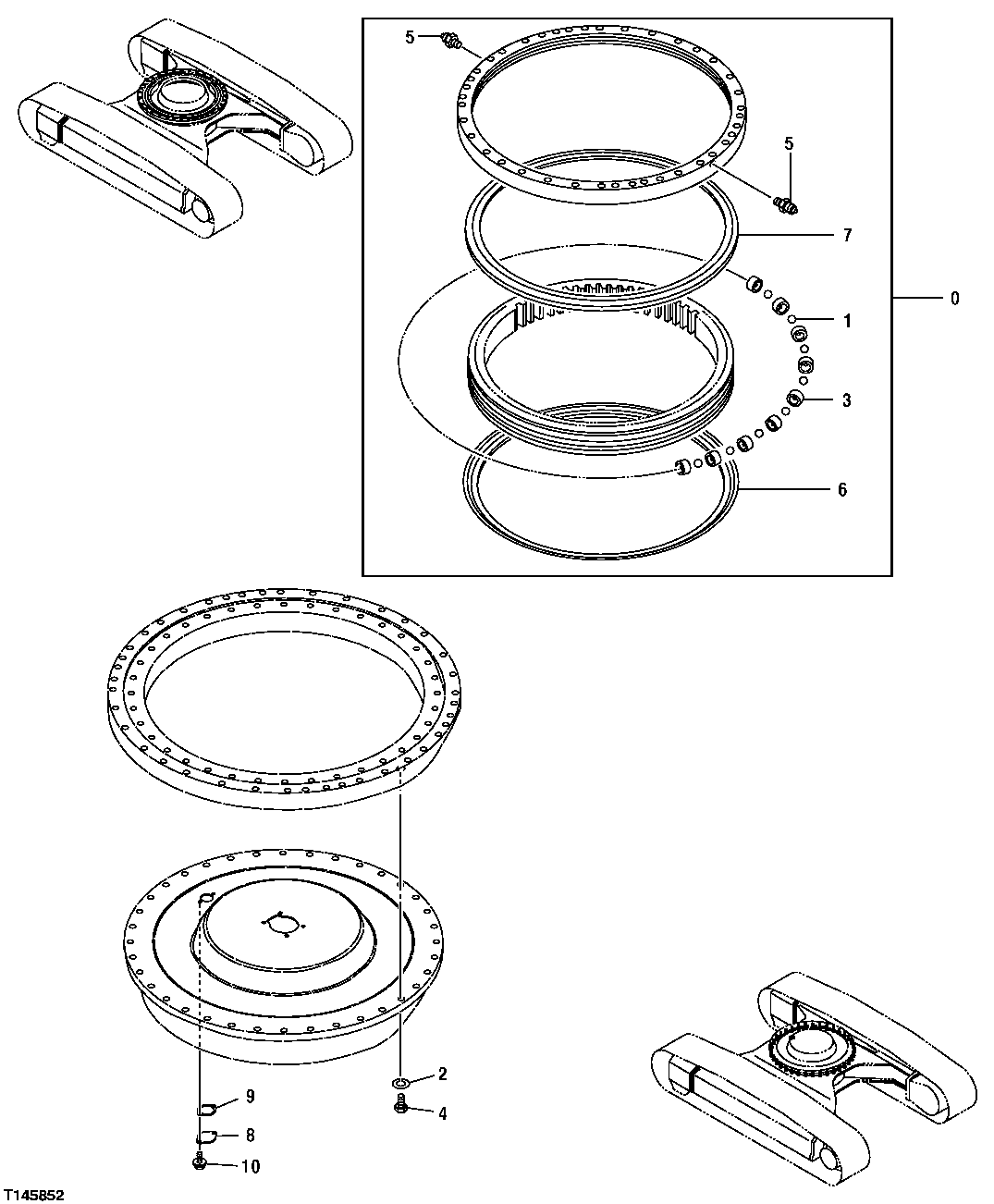

Запчасти John Deere 30CLC 204 - SWING BEARING AND MOUNTING HARDWARE 1740 FRAME INSTALLATION

0

9219138

Swing Bearing

NLA; ORDER 9219138EX

1шт.

9219138EX

Swing Bearing

SUB FOR AT250255, 9166 468; REMAN FOR 9219138

1шт.

1

4382742

Ball

SUB FOR AT250035

95шт.

2

J257227

Lock Washer

SUB FOR AT250278

36шт.

3

4382739

Spacer

SUB FOR AT250034

95шт.

4

4383972

Screw

M27 X 80 SUB FOR AT250043

36шт.

5

TH100074

Lubrication Fitting

2шт.

6

T203958

Seal

4631753 NLA SUB FOR (1) 4634010; AL SO ORDER PM37391 AND AT66866; ALSO OR DER T216880 Installation Instruction

1шт.

7

T203958

Seal

4631753 NLA SUB FOR (1) 4634010; AL SO ORDER PM37391 AND AT66866; ALSO OR DER T216880 Installation Instruction

1шт.

8

4128863

Plate

SUB FOR TH102264

1шт.

9

4272297

Gasket

SUB FOR TH110612, 4211149 OR AT154318

1шт.

10

19M7402

Cap Screw

M10 X 25

2шт.

12M7066

Lock Washer

10 mm

2шт.
