0
9202944

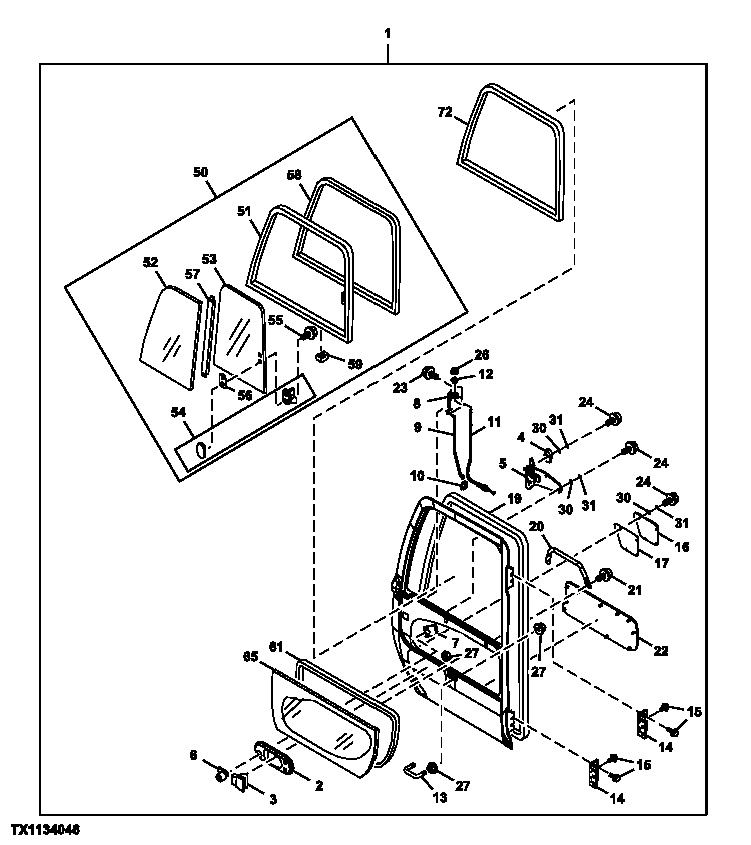

Cab
SUB FOR 4474296 OR 4602549 Not Illust rated Contains All Items On This Page Additional Components On Separate Page s
1шт.
1
4474301
Door
Assembly
1шт.
2
4455979
Cover
SUB FOR TH4455979
1шт.
3
4369645
Handle
Inner Outer SUB FOR AT214145
1шт.
4
4455975
Handle
Inner SUB FOR TH4455975
1шт.
5
4620431
Handle
Inner SUB FOR 4474302, 4456173
1шт.
6
4362135
Lock
SUB FOR AT176789
1шт.
7
4372091
Clip
SUB FOR AT214290
1шт.
8
4455982
Lock
SUB FOR TH4455982
1шт.
9
4455983
Rod
SUB FOR TH4455983
1шт.
10
4444664
Holder
SUB FOR TH4444664
1шт.
11
4456171
Wire
1шт.
4623165
Wire
ALSO ORDER 4623166
1шт.
12
4455981
Bushing
SUB FOR TH4455981
1шт.
13
4369661
U-Bolt
SUB FOR AT214160
1шт.
14
4666483
Hinge
4455980 NLA, SUB FOR 4474303 OR TH4455980
2шт.
15
R168831
Cap Screw
SUB FOR AT214313, 4372261 OR 4356695
ARшт.
24M7028
Washer
10.500 X 20 X 2 mm 24M7271 NLA
ARшт.
16
4474304
Cover
1шт.
17
4455977
Isolator
SUB FOR TH4455977
1шт.
19
4455978
Weatherstrip
SUB FOR TH4455978
1шт.
20
4666484
Handrail
SUB FOR 4453670 OR 4453670J
1шт.
21
4372212
Screw With Washer
USE WITH 4453670J, SUB FOR AT214299
2шт.
4463961
Bolt
USE WITH 4666484
2шт.
22
4453671
Sheet
SUB FOR TH4453671
1шт.
23
4382885
Bolt
SUB FOR AT213624, M470625
3шт.
12M7081
Lock Washer
6.400 mm SUB FOR AT214314 OR 4372560
3шт.
24
21M7285
Screw
M6 X 12 SUB FOR 21M7246
8шт.
26
4456172
Nut
SUB FOR TH4456172
1шт.
27
4414857
Nut
SUB FOR AT157068
4шт.
28
4623166
Clip
ALSO ORDER 4623165 Not Illustrated
1шт.
30
12M7006
Lock Washer
6 mm
8шт.
31
24M7293
Washer
6.500 X 13 X 1.600 mm
8шт.
50
4453676
Window
Bronze SUB FOR TH4453676
1шт.
4602582
Window
Green
1шт.
51
4453673
Frame
1шт.
52
Windowpane
Bronze TH4448308, 4448308 NLA
1шт.
4602564R
Windowpane
Green SUB FOR 4602564
1шт.
53
Windowpane
Bronze SUB FOR TH4448309, SUB 460265R, 4448309 NLA
1шт.
4602565R
Windowpane
Green SUB FOR 4602565
1шт.
54
4369653
Lock
SUB FOR AT214152
1шт.
55
J680410
Screw With Washer
SUB FOR AT213608
2шт.
56
4420531
Spacer
SUB FOR AT214292, 4372093
1шт.
57
4453675
Isolator
SUB FOR TH4453675
1шт.
58
4453674
Window
Felt Pad in Frame Channel SUB FOR TH4453674
1шт.
59
4147896
Spacer
SUB FOR TH108646
3шт.
61
4400087
Seal
SUB FOR AT218141
1шт.
65
4448310
Windowpane
Bronze SUB FOR TH4468943, 4468943
1шт.
4602566
Windowpane
Green
1шт.
72
4448315
Isolator
SUB FOR TH4448315
1шт.
