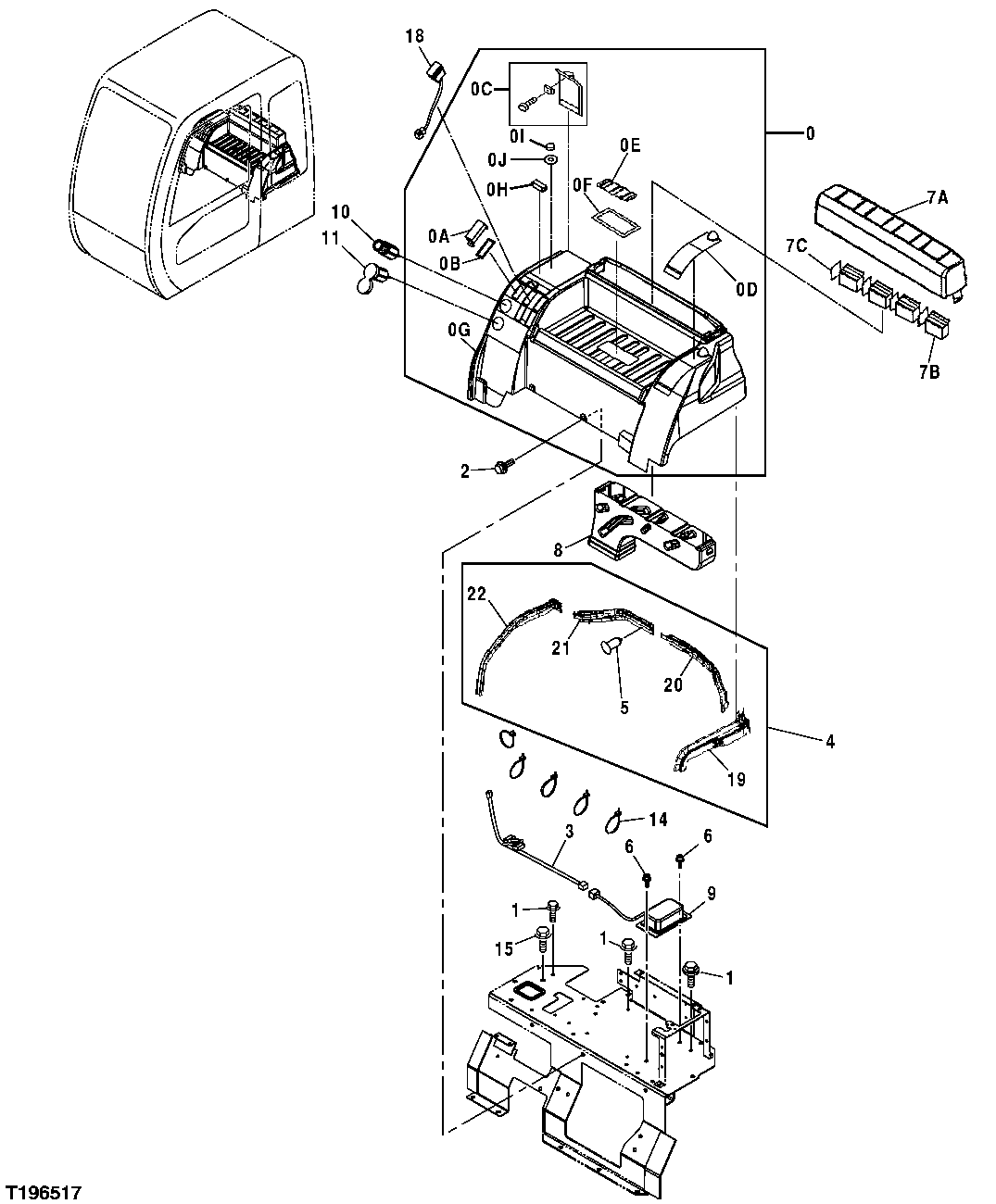

Запчасти John Deere 30CLC 237 - COVER (12V POWER SUPPLY) 1830 HEATING AND AIR CONDITIONING

0

4433793

Tray

1шт.

0A

4456725

Cover

(SUB FOR TH4456725)

5шт.

0B

4456723

Isolator

(SUB FOR TH4456723)

5шт.

0C

4458228

Cover

(RELAY)

1шт.

0D

4458230

Cover

(FUSE)

1шт.

0E

4458231

Cover

(CENTER)

1шт.

0F

4458232

Seal

1шт.

0G

4458227

Tray

1шт.

0H

4458229

Magnet

1шт.

0I

4458233

Cover

1шт.

0J

4458234

Seal

1шт.

1

19M8425

Cap Screw

M6 X 16

3шт.

12M7006

Lock Washer

6 mm

3шт.

24M7293

Washer

6.500 X 13 X 1.600 mm

3шт.

2

19M7402

Cap Screw

M10 X 25

2шт.

12M7066

Lock Washer

10 mm

2шт.

24M7028

Washer

10.500 X 20 X 2 mm

2шт.

3

3091204

Wiring Harness

(SUB FOR TH3091204)

1шт.

4

Sealing Trim

( 4436132 NLA)

1шт.

5

4425573

Clip

13шт.

6

19M8425

Cap Screw

M6 X 16

2шт.

12M7006

Lock Washer

6 mm

2шт.

24M7293

Washer

6.500 X 13 X 1.600 mm

2шт.

7

4433794

Cover

1шт.

7A

Cover

( 4458235 NLA)

1шт.

7B

4458236

Louver

4шт.

7C

4458237

Bracket

4шт.

8

4426156

Air Duct

1шт.

9

4450008

Power Supply

(SUB FOR TH4450008)

1шт.

10

AR60937

Electrical Lighter

(12 VOLT)

1шт.

AU42809

Resistor

1шт.

AT78634

Wiring Lead

1шт.

AT78633

Housing

1шт.

Electrical Lighter

( 4357862 NLA) (24 V) (SUB FOR AT190190)

1шт.

11

4432965

Elec. Connector Terminal

(SUB FOR TH4432965)

1шт.

14

H77698

Tie Band

5шт.

15

19M7938

Cap Screw

M10 X 20

1шт.

12M7066

Lock Washer

10 mm

1шт.

18

4352947

Switch

(SUB FOR TH4352947)(FOR US E WITH AUXILIARY FUNCTIONS)

2шт.

19

Sealing Trim

( 4458238 NLA)

1шт.

20

Sealing Trim

( 4458239 NLA)

1шт.

21

Sealing Trim

( 4458240 NLA)

1шт.

22

Sealing Trim

( 4458241 NLA)

1шт.
