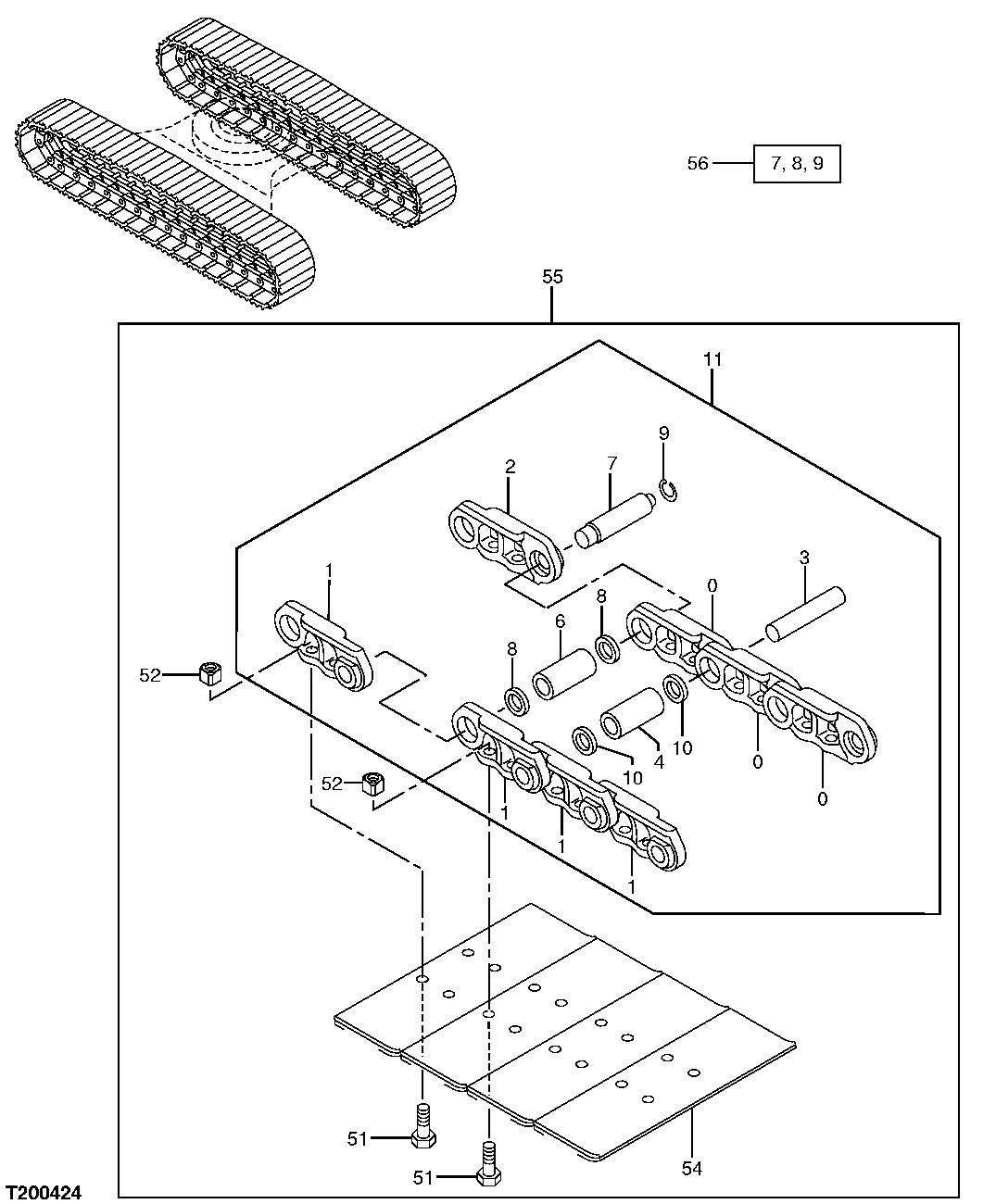

Запчасти John Deere 30CLC 16 - 330CLC Track Chain and Shoes (804001 - ) 0130 TRACK SYSTEMS

0

T210798

Track Link

(SUB FOR (1) 0002690 AND (1) 0 004076)(RIGHT LINK) Right Link

47шт.

1

T210799

Track Link

(SUB FOR (1) 0002691 AN D (1) 0004077) Left Link

48шт.

2

4632763R

Master Track Link

(SUB FOR T210806)

1шт.

3

FFSB112368

Pin Fastener

47шт.

4

T210808

Track Bushing

47шт.

6

T210809

Master Track Bushing

(SUB FOR 3077930)

1шт.

7

T210811

Master Track Pin

1шт.

8

FFSB112370

Spacer

(SUB FOR 4378893)

2шт.

9

T210813

Snap Ring

1шт.

T238670

Snap Ring

(USE WITH 4632763R)

1шт.

10

FFSB112367

Seal

(SUB FOR 4378892)

94шт.

11

9251026R

Track Chain W/O Shoes

(SUB FOR (1) 9202852 OR (1) AT314410) Quanti ty of 1 Each Side of Unit Long Carriage Track

2шт.

51

3104216

Bolt

(SUB FOR (1) 4462694) Long Carri age Track 600 mm Double Bar Shoe

192шт.

52

T210814

Nut

Long Carriage Track 600 mm Double Bar Shoe

192шт.

54

T210815

Triple Bar Shoe

600 mm

48шт.

T210816

Triple Bar Shoe

700 mm

48шт.

FFSB108844

Triple Bar Shoe

800 mm

48шт.

2051740

Double Bar Shoe

Long Carriage 600 mm Double Bar Shoe

48шт.

55

9251025R

Track Assembly With Shoes

600 mm, (SUB FOR (1) AT314416) Quantity of 1 Each Side of Unit

2шт.

AT362047

Track Assembly With Shoes

700 mm, (SUB FOR (1) AT314417) Quantity of 1 Each Side of Unit

2шт.

9258059R

Track Assembly With Shoes

800 mm, (SUB FOR (1) AT314418) Quantity of 1 Each Side of Unit

2шт.

AT362048

Track Assembly With Shoes

900 mm, (SUB FOR (1) AT314419) Quantity of 1 Each Side of Unit

2шт.

56

AT362049

Track Assembly With Shoes

(INCLUDES (1) T210811, (1) FFS B112370 AND (1) T210813) (SUB F OR (1) AT314577) Master Pin Kit

2шт.
