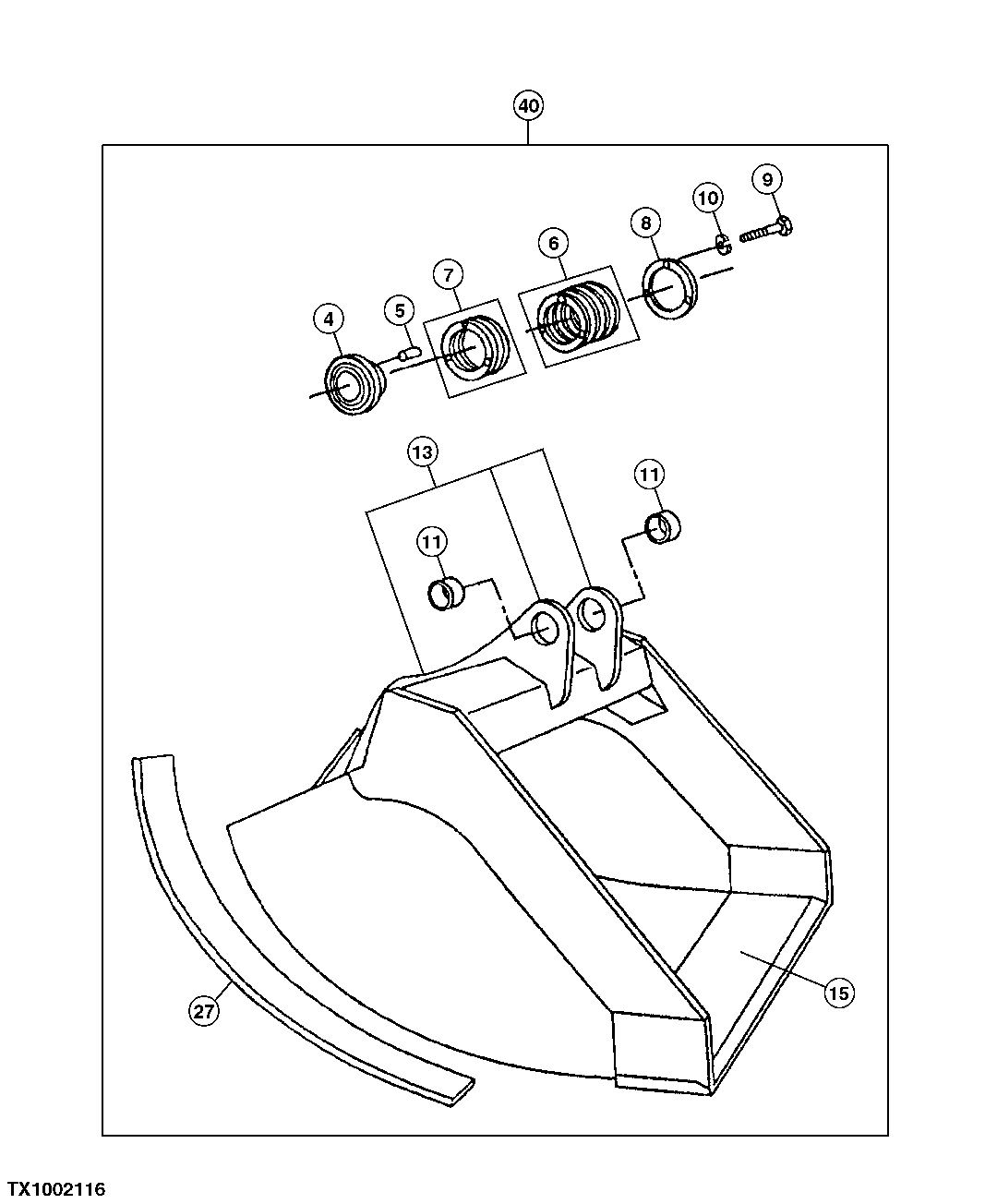

Запчасти John Deere 30CLC 282 - DITCHING BUCKET (72 INCH) 3302 BUCKET WITH TEETH

4

4143522

Bushing

(SUB FOR TH103234)

1шт.

5

4179110

Pin

(SUB FOR TH103520)

1шт.

6

4143524

Washer

1.0 MM (SUB FOR TH103235)

6шт.

7

4143525

Shim

(SUB FOR TH103236)

2шт.

8

TH103237

Plate

1шт.

9

19H2706

Cap Screw

5/8" X 2"

3шт.

10

12H294

Lock Washer

5/8"

3шт.

11

Plate

( TH103198 NLA)

2шт.

13

C610778

Pivot

(F) Bucket Ear Blank Assembly

1шт.

15

AT131089

Dura-Max Cutting Edge

(CUT TO LENGTH)

ARшт.

27

300292

Bar

(F) Wear Strip

4шт.

40

Excavator Bucket

(F) (72 INCH/1.66 CUBI C YARD) ( AT160750 NLA)

1шт.
