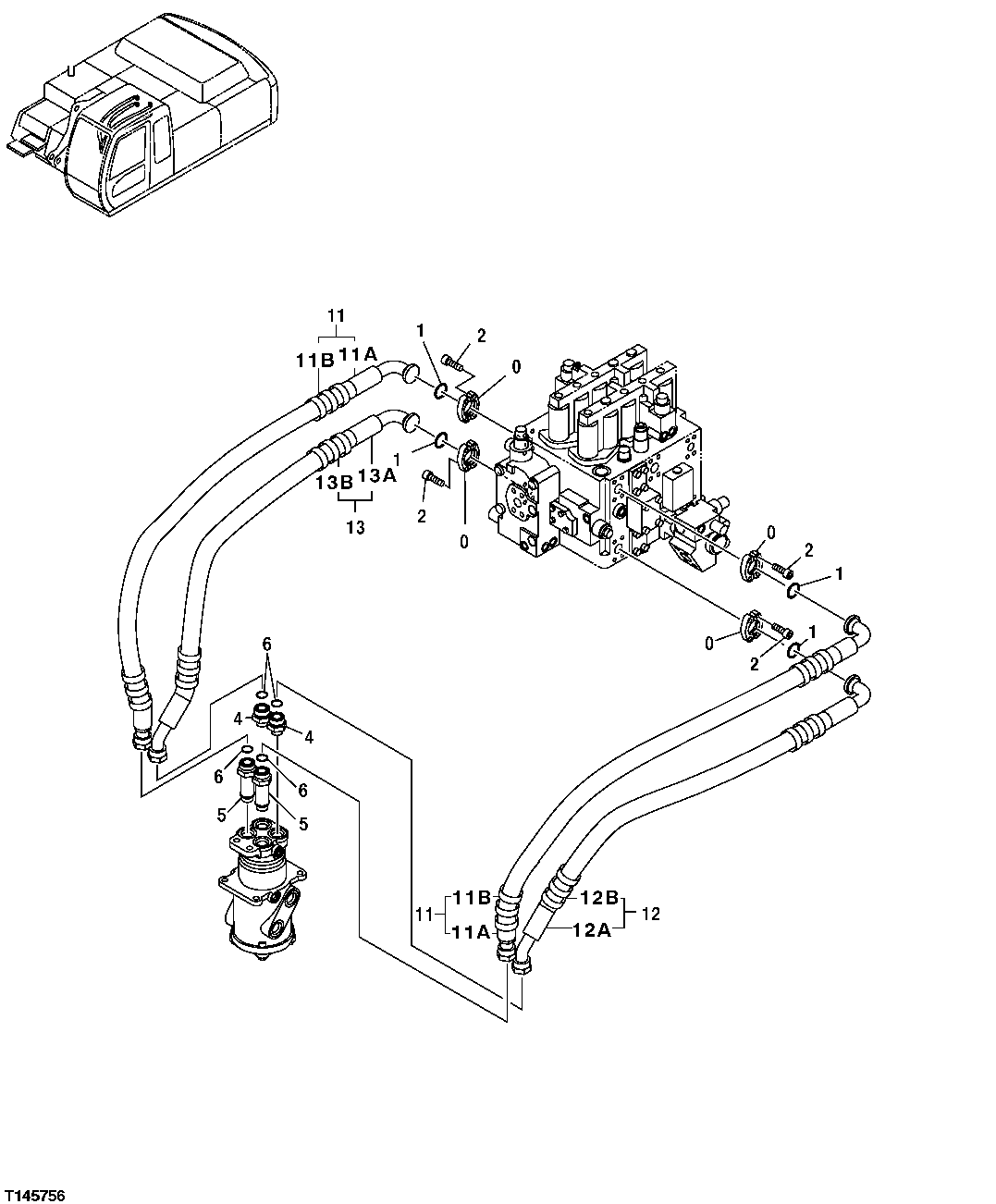

Запчасти John Deere 30CLC 19 - PROPEL MOTOR LINES 0260 AXLES, DIFF. & SUSP. SYS. HYD. (INCL. FWD)

0

H61354

Flange Fitting

8шт.

1

T78313

O-Ring

4шт.

2

19M7576

Screw

M10 X 30 (SUB FOR J781030)

16шт.

4

4189601

Adapter Fitting

(SUB FOR THA853168 ) (SUB FO R A853168, THIS APPLICATION)

2шт.

4A

AT318035

O-Ring

(SUB FOR 4506424, TH10 0055)(NOT ILLUSTRATED)

1шт.

4506424

O-Ring

(SUB FOR AT318035, THIS APPLICATION)

1шт.

5

4198411

Adapter Fitting

(SUB FOR TH111292)

2шт.

5A

AT318035

O-Ring

(SUB FOR 4506424, TH10 0055)(NOT ILLUSTRATED)

1шт.

6

T76938

O-Ring

4шт.

11

Hydraulic Hose

( 9163647 NLA)

2шт.

11A

4386286

Hydraulic Hose

1" X 1450 mm (57") X 36. 5252" (SUB FOR AT250052)

2шт.

11B

Hose Guard

(MAKE FROM XHG-075, CUT TO LENGTH) (SUB FOR AT213832 ( 4327294 NLA))

2шт.

12

Hydraulic Hose

( 9163648 NLA)

1шт.

12A

4386287

Hydraulic Hose

1" X 1250 mm (49-1/4") X 3 6.5252" (SUB FOR AT250053)

1шт.

12B

Hose Guard

(MAKE FROM XHG-075, CUT TO LENGTH) (SUB FOR AT213832 ( 4327294 NLA))

2шт.

13

Hydraulic Hose

( 9163649 NLA)

1шт.

13A

4386288

Hydraulic Hose

1" X 1250 mm (49-1/4") X 3 6.5252" (SUB FOR AT250054)

1шт.

13B

Hose Guard

(MAKE FROM XHG-075, CUT TO LENGTH) (SUB FOR AT213832 ( 4327294 NLA))

2шт.
