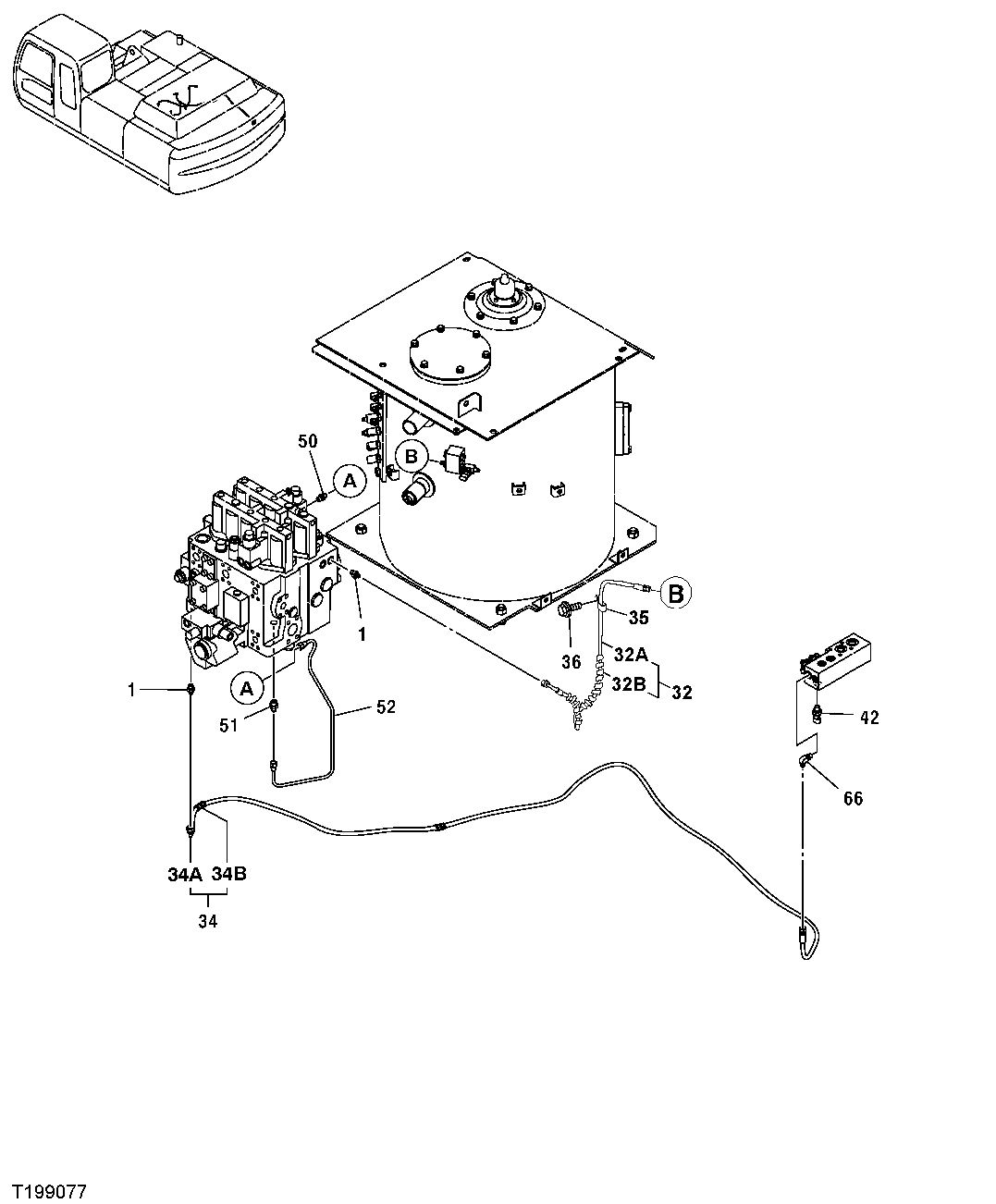

Запчасти John Deere 30CLC 350 - PILOT LINES (CONTROL VALVE TO FLOW REGULATOR VALVE AND HYDRAULIC OIL TANK) 3360 HYDRAULIC SYSTEM

1

4200465

Adapter Fitting

SUB FOR TH108328

2шт.

1A

M800650

Packing

1шт.

32

Hydraulic Hose - Fabricate

( 9243848 NLA)

1шт.

32A

4437795

Hydraulic Hose

11.1252" X 1350 mm (53-1/4") X 11.1252"

1шт.

32B

4327315

Hose Guard

4327293 NLA

1шт.

34

Hydraulic Hose

( TH9200078 NOT AVAILABLE)

1шт.

34A

4452736

Hydraulic Hose

SUB FOR TH4452736

1шт.

34B

4327315

Hose Guard

4327293 NLA SUB FOR AT213831

1шт.

35

M45242

Clip

SUB FOR 4190292

1шт.

36

19M7938

Cap Screw

M10 X 20

1шт.

12M7066

Lock Washer

10 mm

1шт.

42

4436535

Sensor

SUB FOR TH4436535

1шт.

50

4255304

Fitting

SUB FOR AT155270

1шт.

50A

M800650

Packing

1шт.

51

4255305

Fitting

1шт.

51A

CH11570

O-Ring

1шт.

52

3079449

Oil Line

SUB FOR AT219633

1шт.

66

4154670

Elbow Fitting

SUB FOR A852322, P67984 OR THA852322

1шт.

66A

M800650

Packing

1шт.
