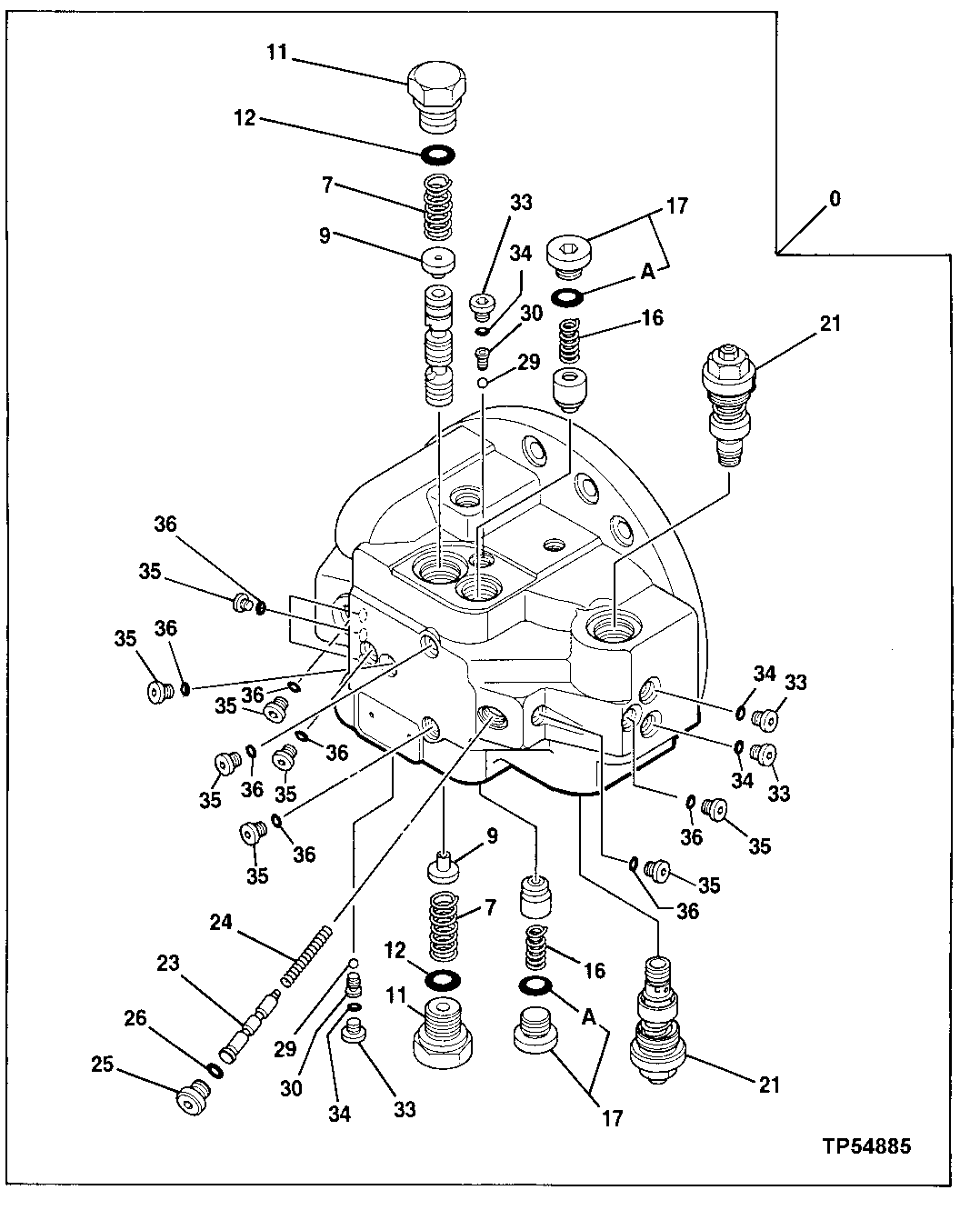

Запчасти John Deere 30CLC 24 - PROPEL MOTOR BRAKE VALVE COMPONENTS(330CLC)(S.N. -082518) 0260 AXLES, DIFF. & SUSP. SYS. HYD. (INCL. FWD)

0

9158391

Flow Control Hyd. Valve

(SUB FOR AT218035)(PRO PEL MOTOR BRAKE VALVE)

1шт.

7

4276785

Compression Spring

(SUB FOR AT203613)

2шт.

9

4276691

Plug

(SUB FOR AT203614)

2шт.

11

4276526

Fitting Plug

(SUB FOR AT203615)

2шт.

12

TH101926

O-Ring

28.700 X 3.500 mm (1.130" X 0.138")

2шт.

16

4365007

Spring

(SUB FOR AT176033)

2шт.

17

9089488

Plug

(SUB FOR AT154847)

2шт.

17A

AT318035

O-Ring

(SUB FOR 4506424, TH100055)

1шт.

21

9134147

Pressure Relief Valve

(SUB FOR AT204850)

2шт.

23

4354415

Valve Spool

(SUB FOR AT214454)

1шт.

24

4185136

Spring

(SUB FOR T107783)

1шт.

25

0311336

Pipe Plug

(SUB FOR TH109082)

1шт.

26

CH11570

O-Ring

1шт.

29

R26552

Ball

2шт.

30

4311662

Valve Seat

(SUB FOR AT204877)

2шт.

33

4208977

Drain Plug

(SUB FOR TH111351)

4шт.

34

M800650

Packing

4шт.

35

0215220

Fitting Plug

(SUB FOR TH101485)

10шт.

36

4506408

O-Ring

(SUB FOR TH101490)

10шт.
