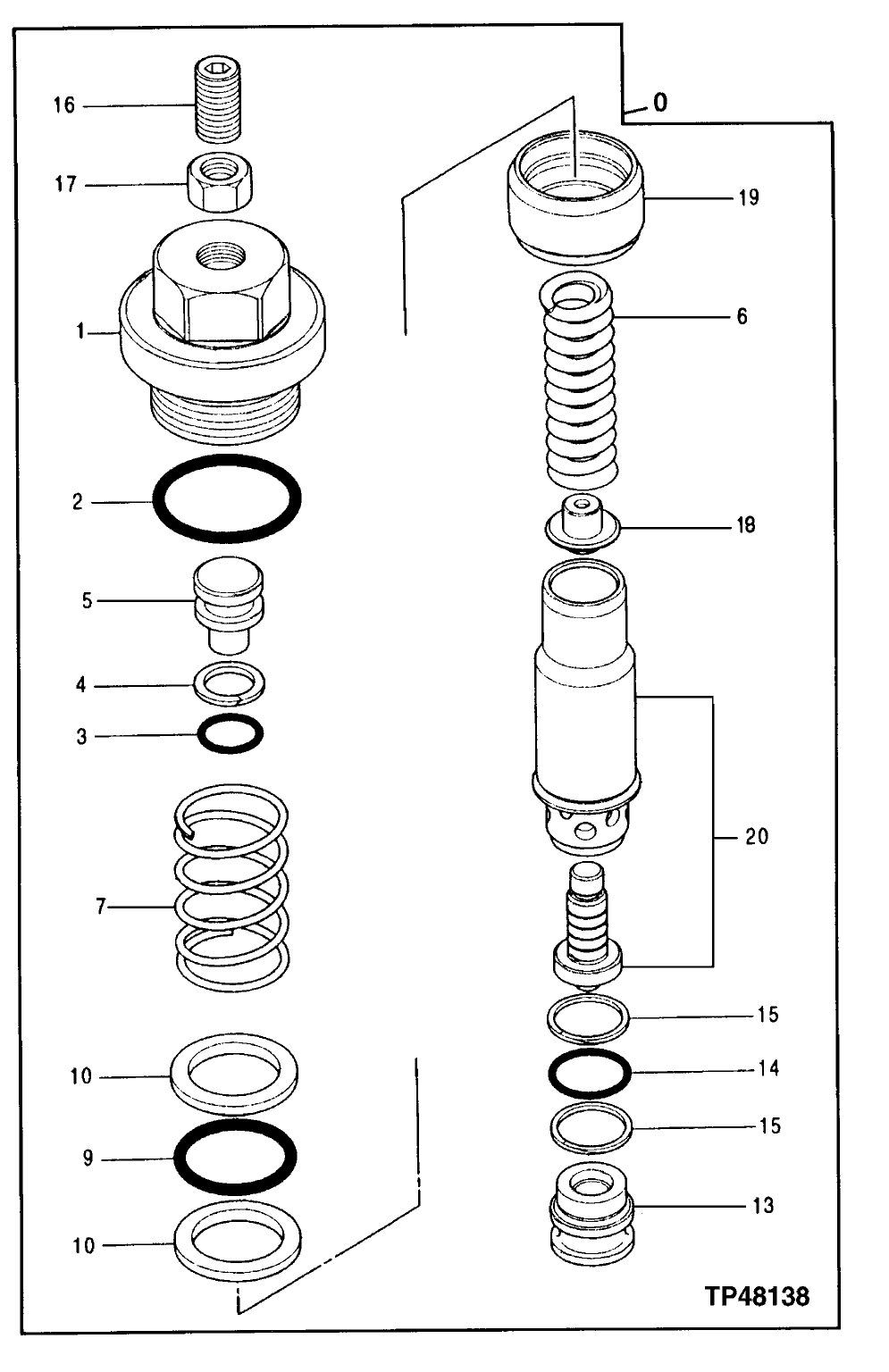

Запчасти John Deere 30CLC 26 - PROPEL MOTOR CROSSOVER RELIEF VALVE COMPONENTS(330CLC)(S.N.-082518) 0260 AXLES, DIFF. & SUSP. SYS. HYD. (INCL. FWD)

0

9134147

Pressure Relief Valve

(SUB FOR AT204850)(PRO PEL MOTOR BRAKE VALVE)

1шт.

1

4312882

Fitting Plug

(SUB FOR AT204879)

1шт.

2

985098

O-Ring

(SUB FOR TH102528)

1шт.

3

CH10568

Packing

1шт.

4

4S01078

Back-Up Ring

(SUB FOR 4027963)

1шт.

5

4312883

Plug

(SUB FOR AT215505)

1шт.

6

4312884

Compression Spring

(SUB FOR AT215506)

1шт.

7

4312894

Compression Spring

(SUB FOR AT215508)

1шт.

9

4314064

O-Ring

(SUB FOR AT204885)

1шт.

10

4314065

Back-Up Ring

(SUB FOR AT204886)

2шт.

13

4312892

Valve Seat

(SUB FOR AT215507)

1шт.

14

T111819

O-Ring

1шт.

15

4040814

Back-Up Ring

(SUB FOR TH105938)

2шт.

16

4312893

Screw

(SUB FOR AT204883)

1шт.

17

14M7275

Nut

M12

1шт.

18

4337154

Guide

(SUB FOR AT215515)

1шт.

19

4338110

Piston

(SUB FOR AT215516)

1шт.

20

9739628

Pressure Relief Valve

(SUB FOR AT215613)

1шт.
