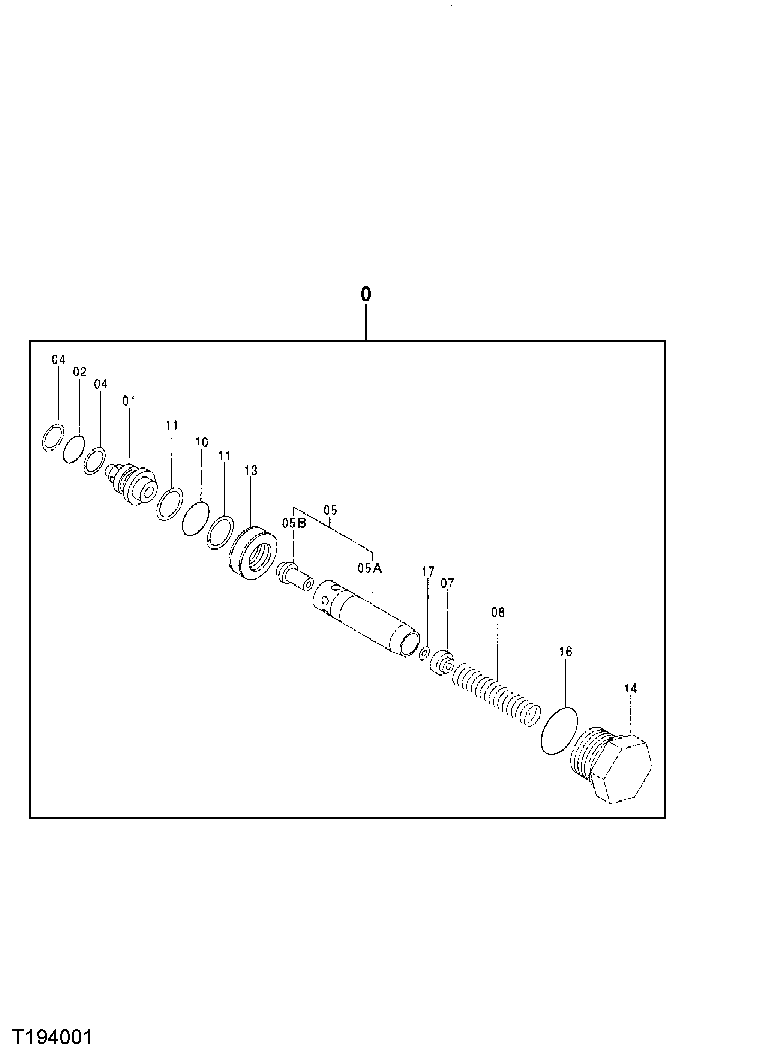

Запчасти John Deere 30CLC 27 - Propel Motor Crossover Relief Valve Components (330CLC)(S.N.082519- ) 0260 AXLES, DIFF. & SUSP. SYS. HYD. (INCL. FWD)

0

9213855

Pressure Relief Valve

Propel Motor Brake Valve

1шт.

1

3095161

Sleeve

1шт.

2

4506418

O-Ring

1шт.

4

4033725

Back-Up Ring

SUB FOR 4S01080

2шт.

5

Pressure Relief Valve

9758777 NLA

1шт.

5A

Valve

4473065 NLA

1шт.

5B

Poppet

3095162 NLA

1шт.

7

4473064

Guard

1шт.

8

4396836

Compression Spring

1шт.

10

CH12329

Packing

SUB FOR 4506420

1шт.

11

4027959

Back-Up Ring

2шт.

13

4462422

Piston

1шт.

14

4473080

Plug

1шт.

16

TH101926

O-Ring

1шт.

17

24M7029

Shim

1шт.
