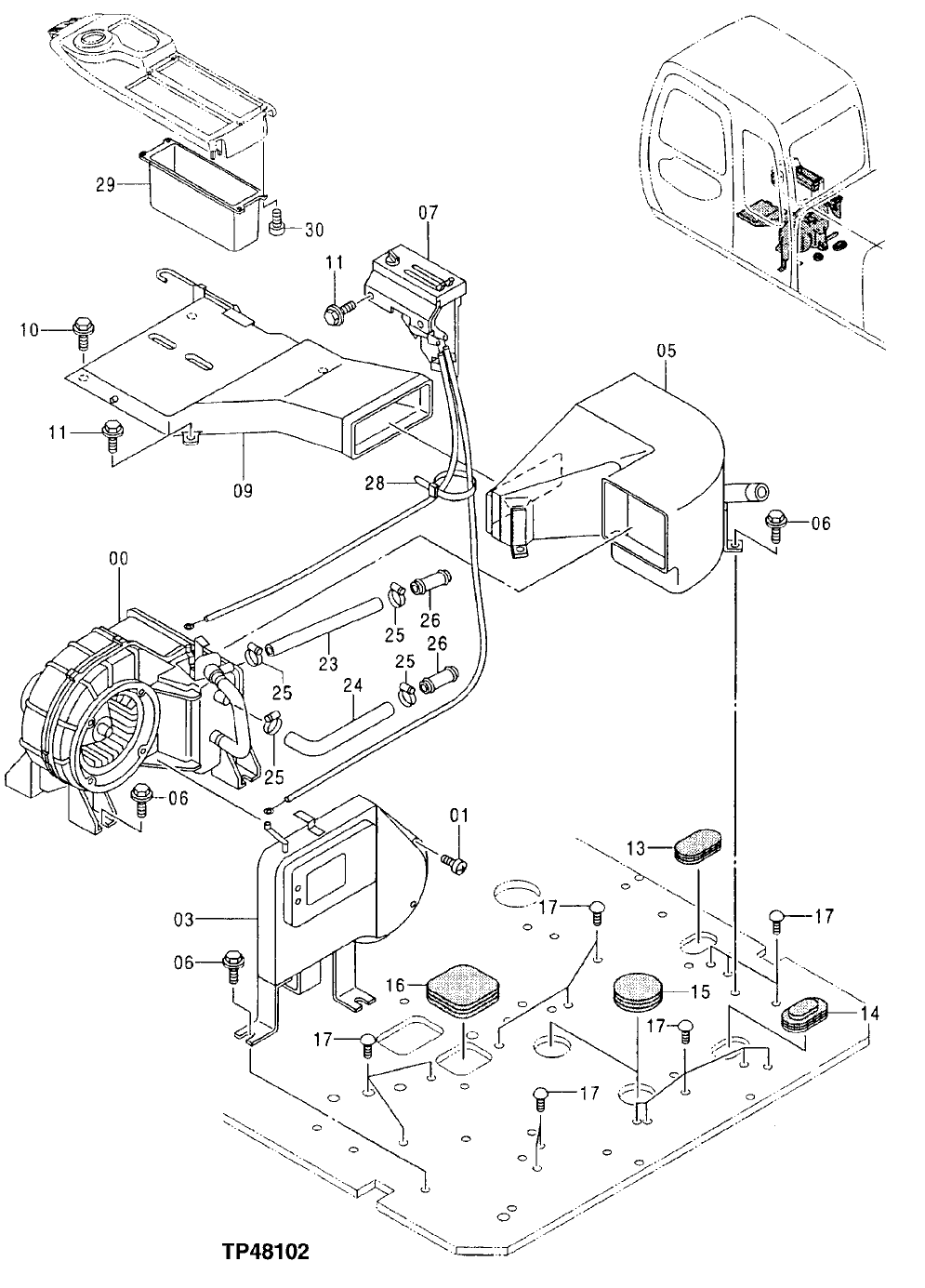

Запчасти John Deere 30LC/370 163 - Cab Heater 1830 Heating & Air Conditioning

0

Heater

SUB FOR AT213979

1шт.

1

4350265

Screw

SUB FOR AT213944

3шт.

3

4365968

Support

SUB FOR AT214025

1шт.

5

4377275

Air Duct

SUB FOR AT215104

1шт.

6

19M7402

Cap Screw

M10 X 25

10шт.

12M7066

Lock Washer

10 mm

10шт.

24M7028

Washer

10.500 X 20 X 2 mm

10шт.

7

4358972

Control

SUB FOR AT213983

1шт.

9

4367138

Air Duct

SUB FOR AT214035

1шт.

10

J050820

Screw With Washer

SUB FOR AT213603

2шт.

11

19M7881

Screw

M8 X 20

4шт.

Washer

12M7065 NLA

4шт.

24M7055

Washer

8.400 X 16 X 1.600 mm

4шт.

13

4276794

Grommet

SUB FOR AT154344

1шт.

14

9738084

Plug

SUB FOR AT214398

1шт.

15

4361148

Plug

SUB FOR AT214003

2шт.

16

4361119

Grommet

SUB FOR AT214001

1шт.

17

4280359

Plug

SUB FOR AT154351

16шт.

23

Bulk Hose

SUB FOR AT214174; 4369785 NO LONGER AVAILABLE FOR SERVICE; FURNISH TY2232 8 BULK MATERIAL CUT TO 230 MM LENGTH

1шт.

24

4344638

Hose

SUB FOR AT213898

1шт.

25

WZ2141223

Hose Clamp

SUB FOR AA34965

4шт.

26

4341800

Tube

SUB FOR AT213885

2шт.

28

H77698

Tie Band

3шт.

29

3072700

Tray

SUB FOR AT213782

1шт.

30

4361800

Screw

SUB FOR AT214011

4шт.
