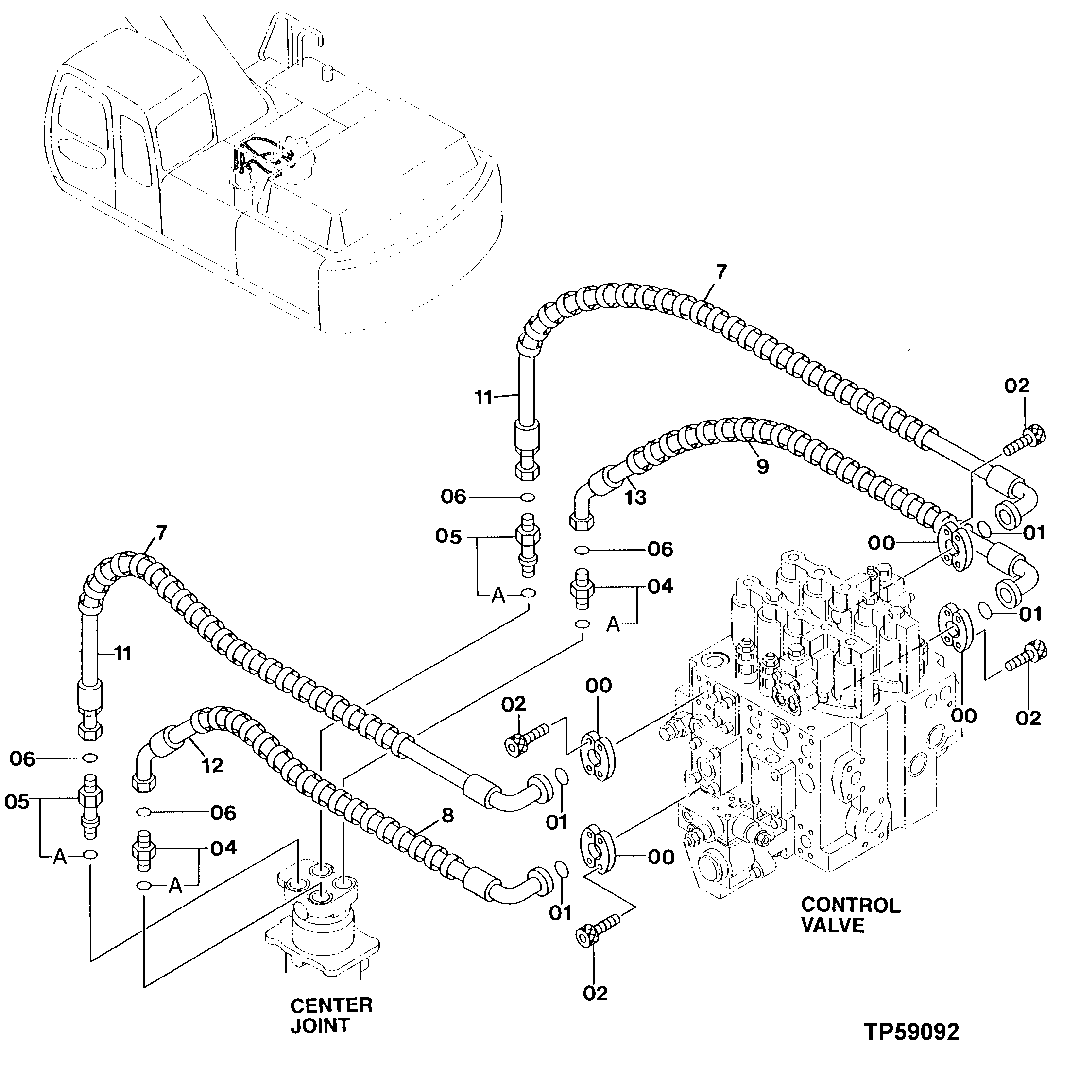

Запчасти John Deere 30LC/370 269 - MAIN PIPINGS 3360 HYDRAULIC SYSTEM

0

H61354

Flange Fitting

8шт.

1

T78313

O-Ring

32.920 X 3.530 mm (1.296" X 0.139")

4шт.

2

19M7576

Screw

M10 X 30 (SUB FOR J781030)

16шт.

4

4189601

Adapter Fitting

(SUB FOR AT107394)

2шт.

4A

AT318035

O-Ring

(SUB FOR 4506424, TH100055)

1шт.

5

4198411

Adapter Fitting

(SUB FOR TH111292)

2шт.

5A

AT318035

O-Ring

(SUB FOR 4506424, TH100055)

1шт.

6

T76938

O-Ring

23.520 X 1.780 mm (0.926" X 0.070")

4шт.

7

Hose Guard

(MAKE FROM XHG-075, BULK MATERIAL, CUT TO LENGTH) (SUB FOR AT213832 OR 4327294)

4шт.

8

Hose Guard

(MAKE FROM XHG-075, BULK MATERIAL, CUT TO LENGTH) (SUB FOR AT213832 OR 4327294)

2шт.

9

Hose Guard

(MAKE FROM XHG-075, BULK MATERIAL, CUT TO LENGTH) (SUB FOR AT213832 OR 4327294)

2шт.

11

4386286

Hydraulic Hose

(SUB FOR AT250052)

2шт.

12

4386287

Hydraulic Hose

(SUB FOR AT250053)

1шт.

13

4386288

Hydraulic Hose

(SUB FOR AT250054)

1шт.
