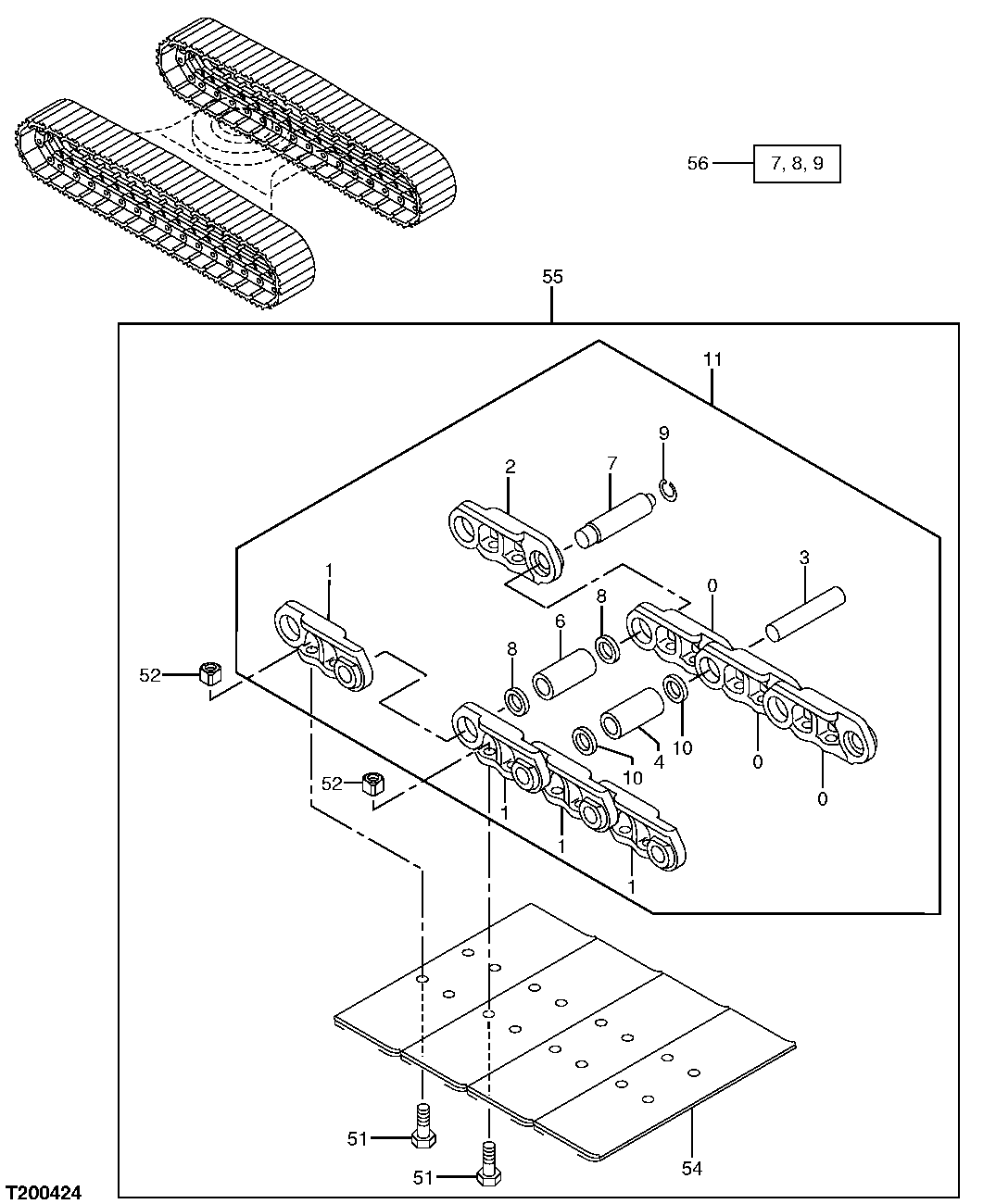

Запчасти John Deere 30LC/370 16 - Track Chain and Shoes 0130 Track Systems

0

T210798

Track Link

(SUB FOR 0002690 AND 0004076)(RIGHT LINK)

47шт.

1

T210799

Track Link

(SUB FOR 0002691 AND 0004077)(LEFT LINK)

48шт.

2

4632763R

Master Track Link

(SUB FOR T210806)

1шт.

3

FFSB112368

Pin Fastener

47шт.

4

T210808

Track Bushing

47шт.

6

T210809

Master Track Bushing

(SUB FOR 3077930)

1шт.

7

T210811

Master Track Pin

1шт.

8

FFSB112370

Spacer

(SUB FOR 4378893)

2шт.

9

T210813

Snap Ring

1шт.

T238670

Snap Ring

(USE WITH 4632763R)

1шт.

10

FFSB112367

Seal

(SUB FOR 4378892)

94шт.

11

9251026R

Track Chain W/O Shoes

(SUB FOR 9202852 AND AT314410)( QUANTITY OF 1 EACH SIDE OF UNIT)

2шт.

51

T210807

Track Bolt

(SUB FOR 3081343 AND 3095745)

192шт.

52

T210814

Nut

192шт.

54

T210815

Triple Bar Shoe

(600MM TRIPLE BAR SHOE)

48шт.

T210816

Triple Bar Shoe

(700MM TRIPLE BAR SHOE)

48шт.

FFSB108844

Triple Bar Shoe

(800MM TRIPLE BAR SHOE)

48шт.

T210817

Triple Bar Shoe

(900MM TRIPLE BAR SHOE)

48шт.

55

9251025R

Track Assembly With Shoes

(SUB FOR AT314416)(600MM TRIP LE BAR SHOE TRACK ASSEMBLY) (Q UANTITY OF 1 EACH SIDE OF UNIT )

2шт.

AT362047

Track Assembly With Shoes

(SUB FOR AT314417)(700MM TRIP LE BAR SHOE TRACK ASSEMBLY) (Q UANTITY OF 1 EACH SIDE OF UNIT )

2шт.

9258059R

Track Assembly With Shoes

(SUB FOR AT314418)(800MM TRIP LE BAR SHOE TRACK ASSEMBLY) (Q UANTITY OF 1 EACH SIDE OF UNIT )

2шт.

AT362048

Track Assembly With Shoes

(SUB FOR AT314418)(900MM TRIP LE BAR SHOE TRACK ASSEMBLY) (Q UANTITY OF 1 EACH SIDE OF UNIT )

2шт.

56

AT362049

Track Assembly With Shoes

(INCLUDES T210811, FFSB112370 AND T2108 13 ) (SUB FOR AT314577)(MASTER PIN KIT)

2шт.
