19 - Travel Device

Запчасти John Deere 30LC/370 19 - Travel Device 0260 Axles, Diff. & Susp. Sys. Hyd. (Incl. Fwd)

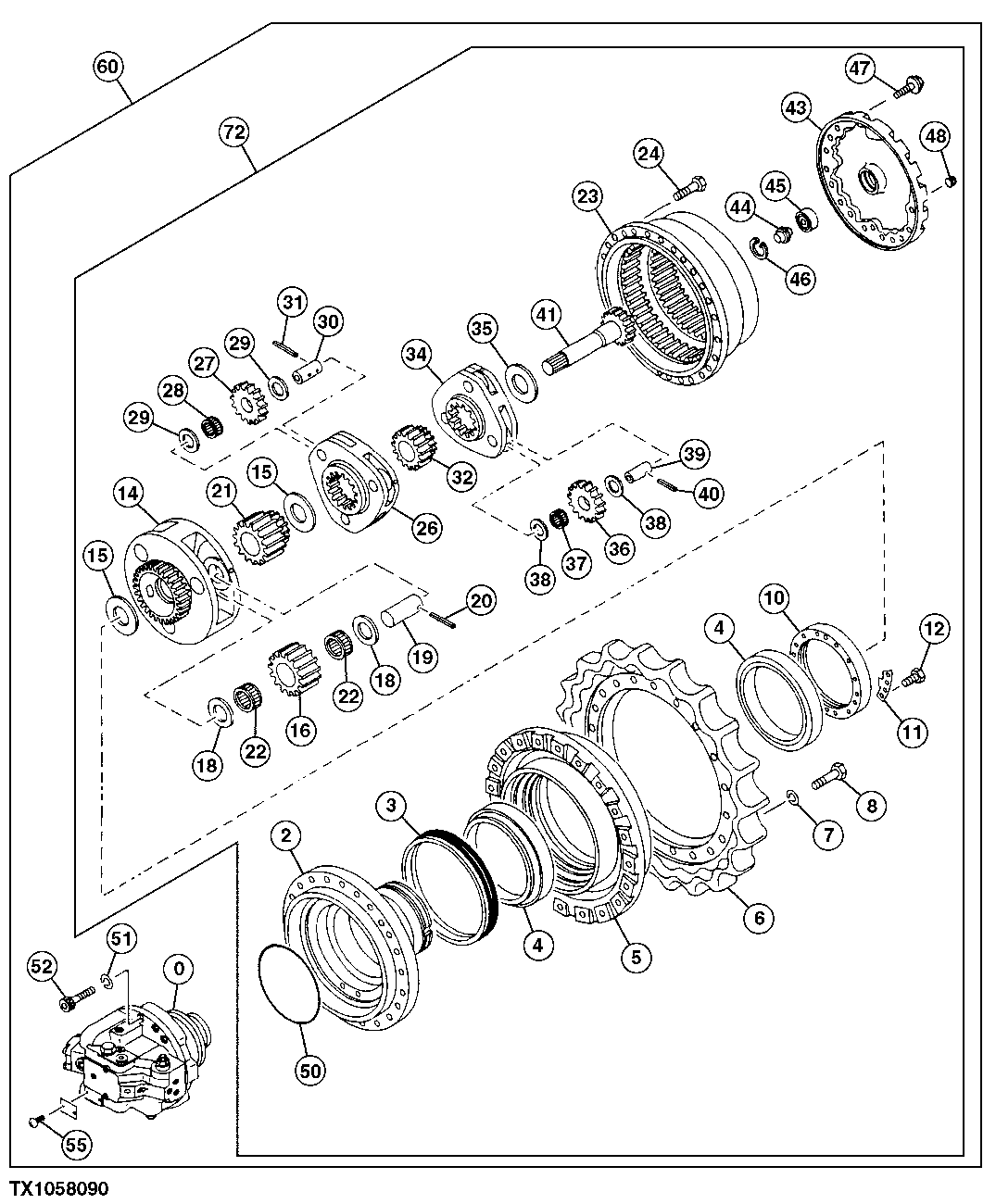

Схема запчастей John Deere 30LC/370 - 19 - Travel Device 0260 Axles, Diff. & Susp. Sys. Hyd. (Incl. Fwd)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

0

9155694

Hydraulic Motor

NLA, ORDER 9155694EX

1шт.

9155694EX

Hydraulic Motor Reman

REMAN FOR 9155694, SUB FOR AT250251

1шт.

2

1022194

Housing

SUB FOR AT219575

1шт.

3

4066695

Seal

1шт.

4

TH111245

Tapered Roller Bearing

2шт.

5

1022179

Housing

SUB FOR AT219574

1шт.

6

AT314423

Chain Sprocket

SUB FOR AT219573 OR 1022168

1шт.

7

12M7070

Lock Washer

20 mm

20шт.

8

19M8224

Cap Screw

M20 X 60

20шт.

10

3036256

Nut

SUB FOR TH111143

1шт.

11

4192974

Lock Plate

SUB FOR TH111244

1шт.

12

19M7872

Cap Screw

M12 X 25

2шт.

14

1022198

Planet Pinion Carrier

SUB FOR AT219579

1шт.

15

4401293

Spacer

SUB FOR TH111249

2шт.

16

3075003

Gear

SUB FOR AT219613

3шт.

18

4269470

Thrust Washer

SUB FOR AT202590

6шт.

19

4269452

Pin

SUB FOR AT202591

3шт.

20

4192021

Spring Pin

SUB FOR TH111240

3шт.

21

3075005

Sun Gear

SUB FOR AT219614

1шт.

22

4371402

Needle Bearing

SUB FOR AT217984

6шт.

23

1022195

Ring Gear

SUB FOR AT219576

1шт.

24

19M7488

Cap Screw

M16 X 40

28шт.

26

1022197

Planet Pinion Carrier

SUB FOR AT219578

1шт.

27

3075002

Gear

SUB FOR AT219612

3шт.

28

4443139

Needle Bearing

SUB FOR T107728 OR 4183818

3шт.

29

4284521

Shim

SUB FOR AT204941

6шт.

30

4269451

Bushing

SUB FOR AT202597

3шт.

31

34M7119

Spring Pin

5 X 65 mm

3шт.

32

3074989

Sun Gear

SUB FOR AT219610

1шт.

34

1022196

Planet Pinion Carrier

SUB FOR AT219577

1шт.

35

AT204943

Washer

1шт.

36

3075001

Gear

SUB FOR AT219611

3шт.

37

4455098

Needle Bearing

SUB FOR AT204728 OR 4269471

3шт.

38

4284520

Shim

SUB FOR AT204729

6шт.

39

FYB00001382

Pin

SUB FOR AT204730 OR 4269472

3шт.

40

4192020

Spring Pin

SUB FOR TH111239

3шт.

41

2038915

Pinion Shaft

SUB FOR AT219592

1шт.

43

2045031

Cover

SUB FOR 2038904 OR AT219591

1шт.

44

4278011

Pin Fastener

SUB FOR AT131137

1шт.

45

4278168

Bearing

SUB FOR AT130956

1шт.

46

40M7228

Snap Ring

1шт.

47

19M8011

Cap Screw

M12 X 30

16шт.

12M7058

Lock Washer

12 mm SUB FOR 12M7067

16шт.

48

94-2013

Fitting Plug

SUB FOR TH100648

3шт.

50

4269473

O-Ring

SUB FOR AT203608

1шт.

51

4287213

Washer

SUB FOR AT204733

4шт.

52

M341885

Screw

SUB FOR AT204922

4шт.

55

37H99

Screw

0.100" X 1/4"

2шт.

60

Drive

SUB FOR TH9155748, 9217498 AND 915569 4EX, 9155748 NLA One Each Side Of Unit

1шт.

72

9217498

Planetary Assembly

1шт.
