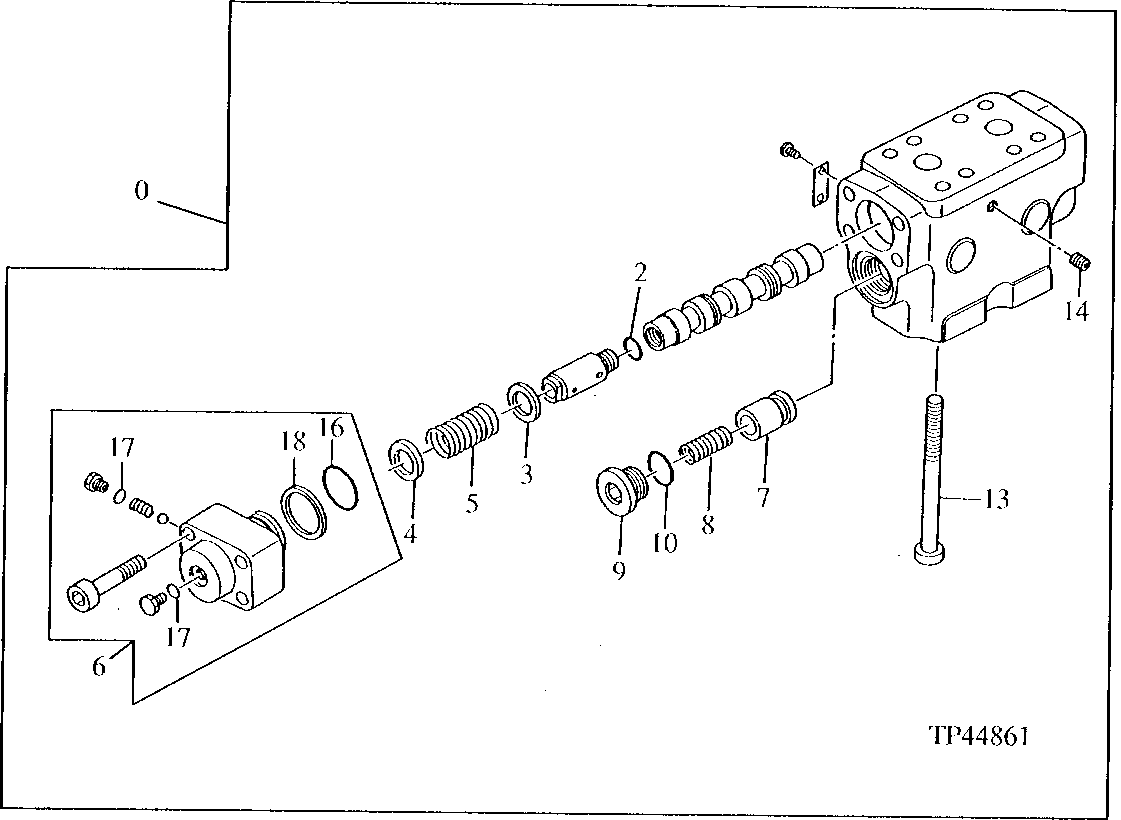

Запчасти John Deere 30LC/370 26 - Brake Valve 0260 Axles, Diff. & Susp. Sys. Hyd. (Incl. Fwd)

0

4389276

Flow Control Hyd. Valve

(SUB FOR AT250081)

1шт.

2

4506418

O-Ring

(SUB FOR U46489)

2шт.

3

0163601

Plate

(SUB FOR AT132163)

2шт.

4

0646101

Washer

(SUB FOR AT174526)

2шт.

5

0420002

Spring

(SUB FOR AT201568)

2шт.

6

0403703

Cap (Hat)

(SUB FOR AT174527)

2шт.

7

0352304

Check Valve

(SUB FOR AT132269)

2шт.

8

0352305

Spring

(SUB FOR AT132270)

2шт.

9

0352306

Plug

(SUB FOR AT132271)

2шт.

10

TH101926

O-Ring

28.700 X 3.500 mm (1.130" X 0.138")

2шт.

13

M341204

Bolt

(SUB FOR AT132272)

8шт.

14

94-2010

Fitting Plug

(SUB FOR TH100689)

1шт.

16

A811040

O-Ring

39.400 X 3.100 mm (1.551" X 0.122") (SUB FOR TH102992)

1шт.

17

4506408

O-Ring

7.800 X 1.900 mm (0.307" X 0.075") (SUB FOR TH101490)

2шт.

18

4070998

Back-Up Ring

(SUB FOR AT202078)

1шт.
