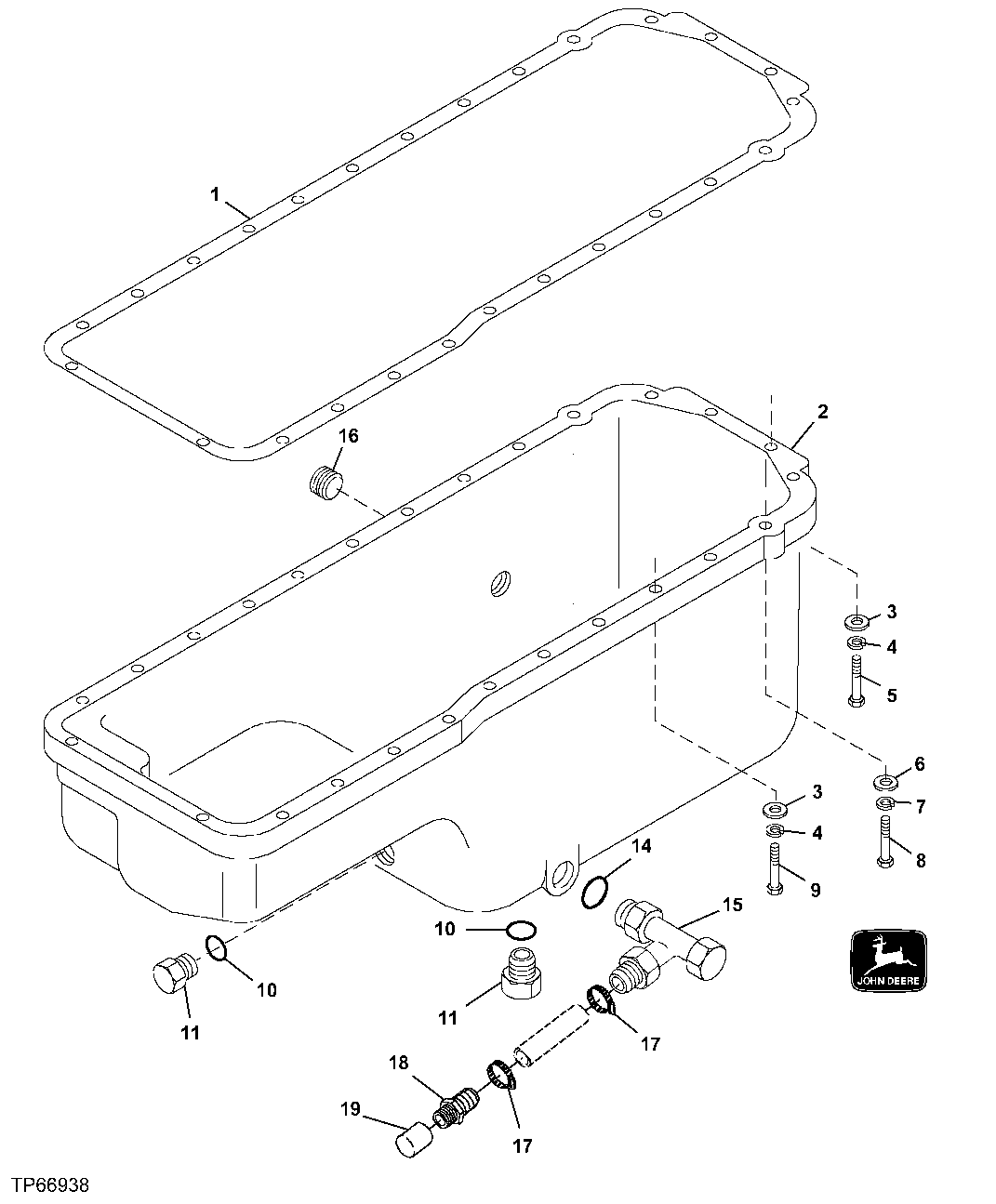

Запчасти John Deere 30LC/370 50 - OIL PAN 0400 Engine 6081HT001-RG26768 6081HT001

1

R49377

Gasket

1шт.

2

R500297

Pan

1шт.

3

24H1305

Washer

13/32" X 13/16" X 0.065"

22шт.

4

12H304

Lock Washer

3/8"

22шт.

5

19H3485

Cap Screw

3/8" X 2"

4шт.

6

24H1756

Washer

1/2" X 1" X 0.060"

2шт.

7

12H301

Lock Washer

1/2"

2шт.

8

19H2473

Cap Screw

1/2" X 1-3/4"

2шт.

9

19H3267

Cap Screw

3/8" X 1-5/8"

18шт.

10

R47151

O-Ring

2шт.

11

R27474

Drain Plug

2шт.

12

A4827R

Washer

25.400 X 31.700 X 1.500 mm (1" X 1.248" X 0.059")

1шт.

13

R26727

Drain Plug

1шт.

14

R47151

O-Ring

1шт.

15

AT152180

Drain Valve

1шт.

16

15H690

Pipe Plug

3/4"

1шт.

17

WZ2141223

Hose Clamp

(SUB FOR AA34965)

2шт.

18

R41071

Fitting

1шт.

19

15H582

Fitting

3/4"

1шт.
