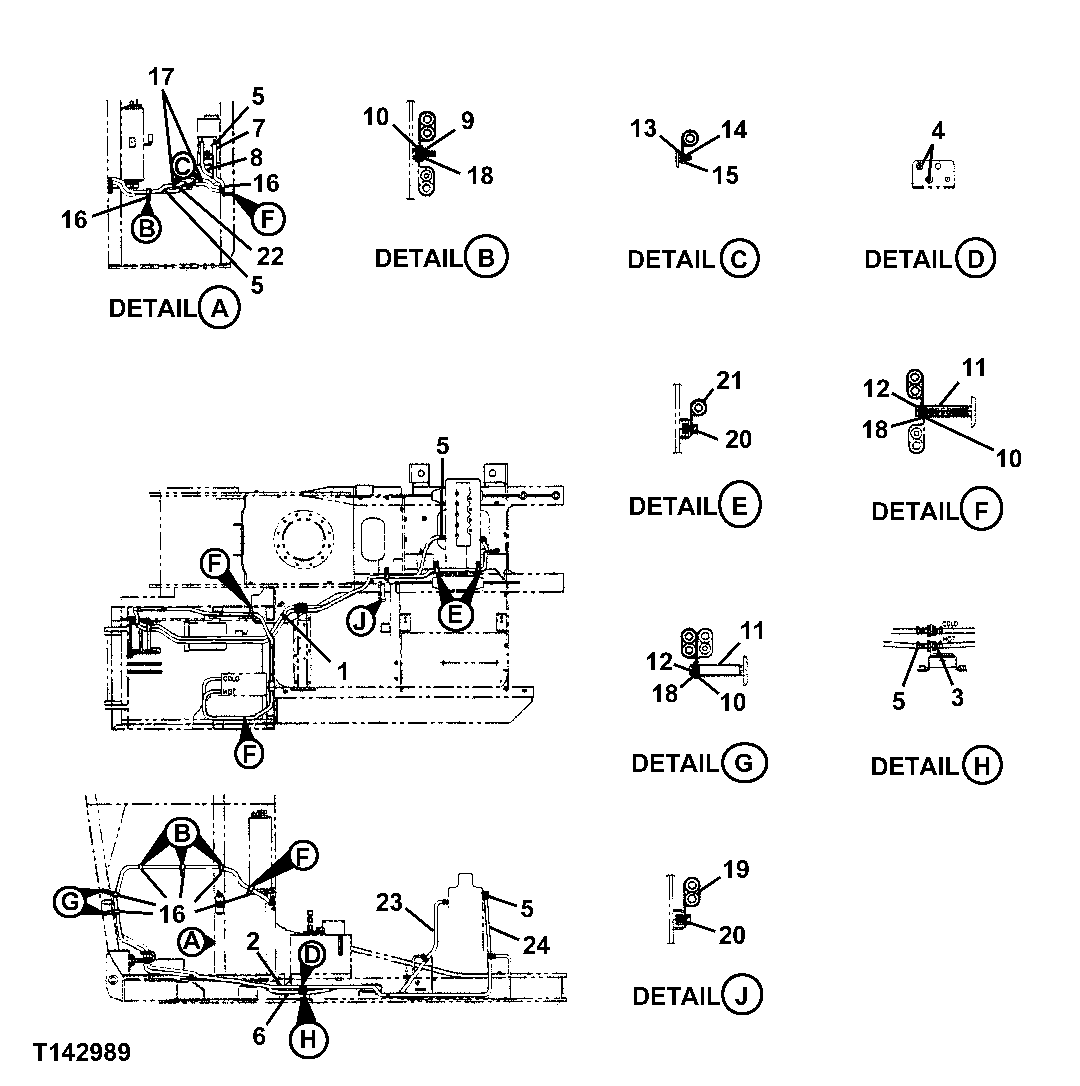

Запчасти John Deere 330LC, 370 92 - HEATER PIPING FOR REAR ENTRY CAB 1830B Heating & Air Conditioning (Rear Entry)

1

MT765

Tie Band

(SUB FOR FFSB107307)

4шт.

2

Hose

(CUT TO LENGTH FROM TY22328 BU LK MATERIAL - 5175 MM) ( FFSB10 7488 NOT AVAILABLE FOR SERVICE)

1шт.

3

FFSB107436

Fitting

4шт.

4

FFSB107437

Adapter Fitting

2шт.

5

FFSB102829

Clamp

12шт.

6

Hose

(FURNISH TY22328 BULK MATERIAL CUT TO LENGTH - 5175 MM) ( FFSB1 07481 NOT AVAILABLE FOR SERVICE)

1шт.

7

Hose

(FURNISH TY22328 BULK MATERIAL CUT TO LENGTH - 1270 MM) ( FFSB1 02825 NOT AVAILABLE FOR SERVICE)

1шт.

8

Hose

(FURNISH TY22328 BULK MATERIAL CUT TO LENGTH - 1320 MM) ( FFSB1 07484 NOT AVAILABLE FOR SERVICE)

1шт.

9

14M7274

Nut

M10 (SUB FOR FFSB107411)

4шт.

10

24M7028

Washer

10.500 X 20 X 2 mm (SUB FOR FFSB107142)

12шт.

11

FFSB107369

Nut

4шт.

12

19M7662

Cap Screw

M10 X 30 (SUB FOR FFSB107141)

4шт.

13

24M7054

Washer

6.400 X 12 X 1.600 mm (SUB FOR FFSB107438)

4шт.

14

14M7272

Nut

M6 (SUB FOR FFSB107184)

2шт.

15

12M7006

Lock Washer

6 mm (SUB FOR FFSB107439)

2шт.

16

FFSB107516

Clamp

8шт.

17

Clamp

( FFSB107350 NOT AVAILABLE FOR SERVICE)

2шт.

18

12M7066

Lock Washer

10 mm (SUB FOR FFSB107409)

8шт.

19

R50454

Clamp

(SUB FOR FFSB107878 ) (SU B FOR TH109445 OR 4192034)

1шт.

20

19M7938

Cap Screw

M10 X 20 (SUB FOR FFSB107124)

5шт.

21

R72659

Clamp

(SUB FOR FFSB107871, AT122384 OR 4235654)

4шт.

22

AT192174

Valve

(SUB FOR FFSB105429)

1шт.

23

Hose

(SUB FOR FFSB107863)(COLD LINE) (FURNISH T Y22328 BULK MATERIAL CUT TO 3600 MM LENGTH)

1шт.

24

Hose

(SUB FOR FFSB107864)(HOT LINE) (FURNISH TY 22328 BULK MATERIAL CUT TO 4200 MM LENGTH)

1шт.
