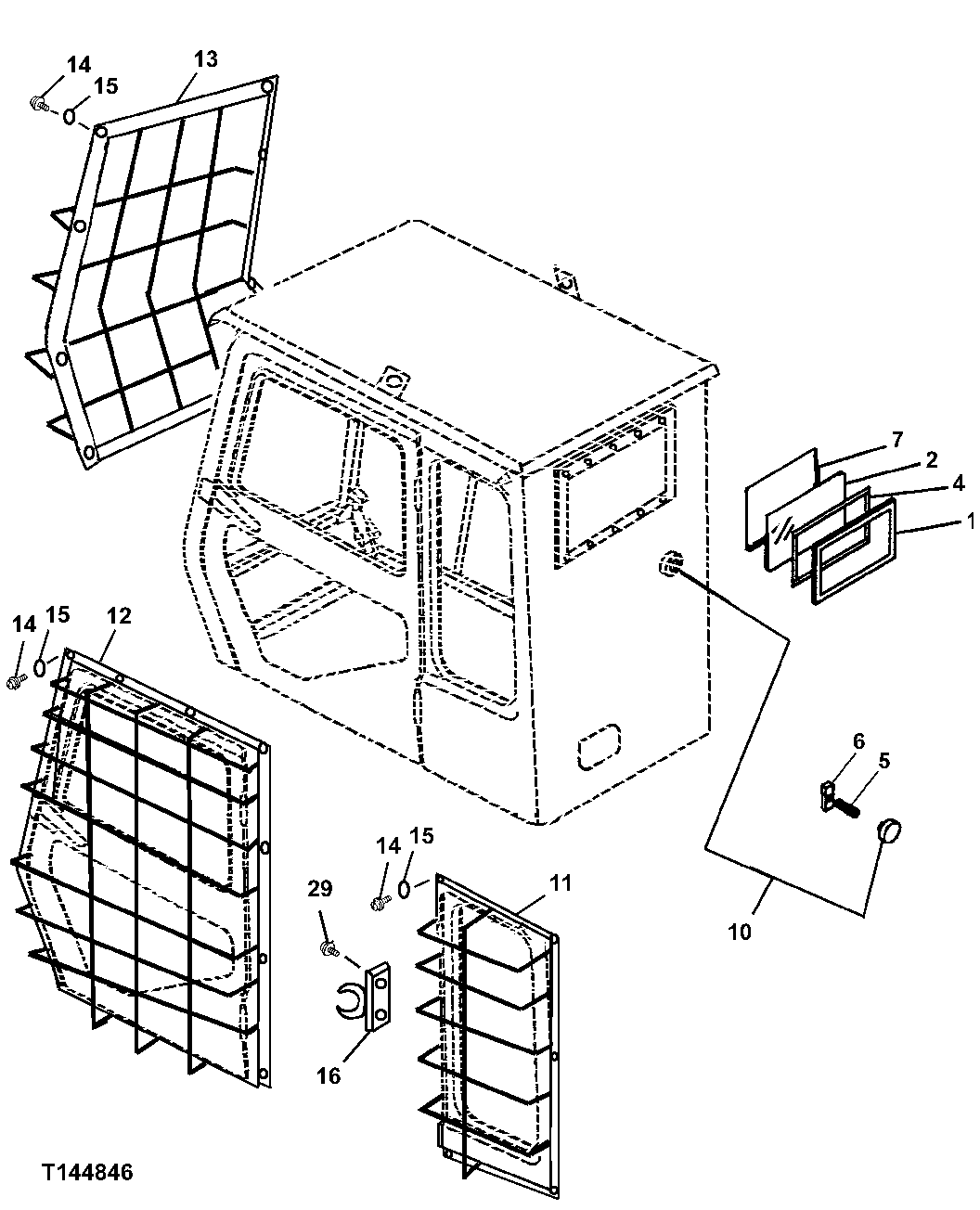

Запчасти John Deere 330LC, 370 120 - ROADBUILDER WINDOW GUARD AND SECONDARY EXIT 1810D Operator Enclosure (Roadbuilder)

1

FFSB103019

Frame

1шт.

2

FFSB103020

Windowpane

1шт.

4

FFSB103022

Weatherstrip

1шт.

5

FFSB103023

Rod

2шт.

6

FFSB103024

Block Clamp

2шт.

7

Weatherstrip

(SUB FOR FFSB103025)(FURNISH FFSB10798 7 BULK MATERIAL CUT TO 2300 MM LENGTH)

1шт.

10

FFSB103031

Knob

(ASSEMBLY CONTAINS FOUR PIECES)

4шт.

11

FFSB106777

Guard

1шт.

12

FFSB106776

Guard

1шт.

13

FFSB106778

Guard

1шт.

14

21M7442

Screw

M10 X 20 ( FFSB108054 NO LONGER AVAILABLE)

24шт.

15

12M7066

Lock Washer

10 mm (SUB FOR FFSB108055)

24шт.

16

FFSB105705

Clip

1шт.

29

21M7207

Screw

M5 X 20

2шт.
