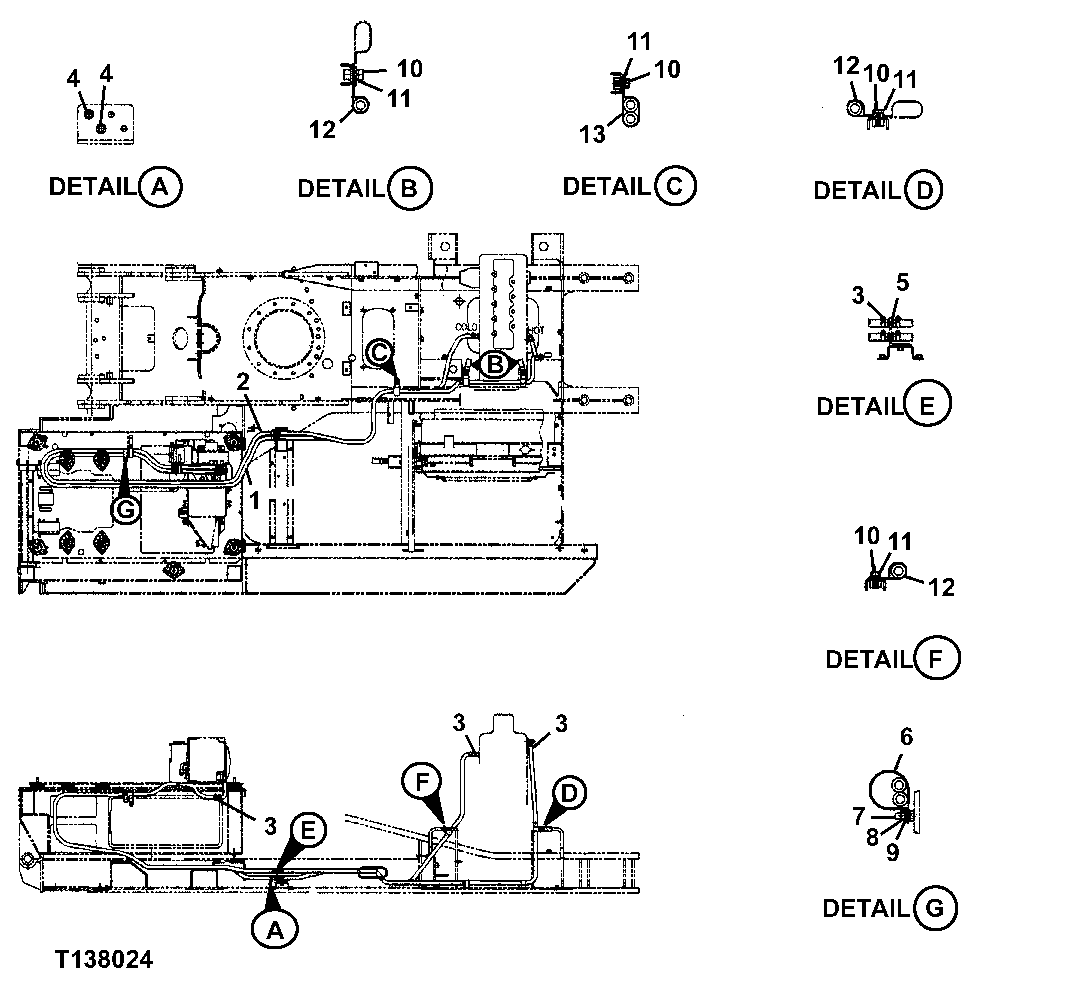

Запчасти John Deere 330LC, 370 129 - HEATER PIPING FOR ROADBUILDER CAB WITH 18 INCH RISER 1830D Heating & Air Conditioning (Roadbuilder)

1

Bulk Hose

(SUB FOR FFSB108476 OR FFSB102915)(FURNISH T Y22328 BULK MATERIAL CUT TO LENGTH - 3200 MM)

12шт.

2

Bulk Hose

(SUB FOR FFSB108475 OR FFSB102915)(FURNISH T Y22328 BULK MATERIAL CUT TO LENGTH - 3200 MM)

12шт.

3

FFSB102829

Clamp

8шт.

4

FFSB107437

Adapter Fitting

2шт.

5

FFSB107436

Fitting

4шт.

6

T118385

Clamp

(SUB FOR FFSB105441)

1шт.

7

14M7274

Nut

M10 (SUB FOR FFSB107411)

1шт.

8

24M7028

Washer

10.500 X 20 X 2 mm (SUB FOR FFSB107142)

2шт.

9

12M7066

Lock Washer

10 mm (SUB FOR FFSB107961)

1шт.

10

19M7938

Cap Screw

M10 X 20

5шт.

11

12M7006

Lock Washer

6 mm

5шт.

12

R72659

Clamp

(SUB FOR AT122384 OR 4235654)

4шт.

13

R50454

Clamp

(SUB FOR TH109445 OR 4192034)

1шт.
