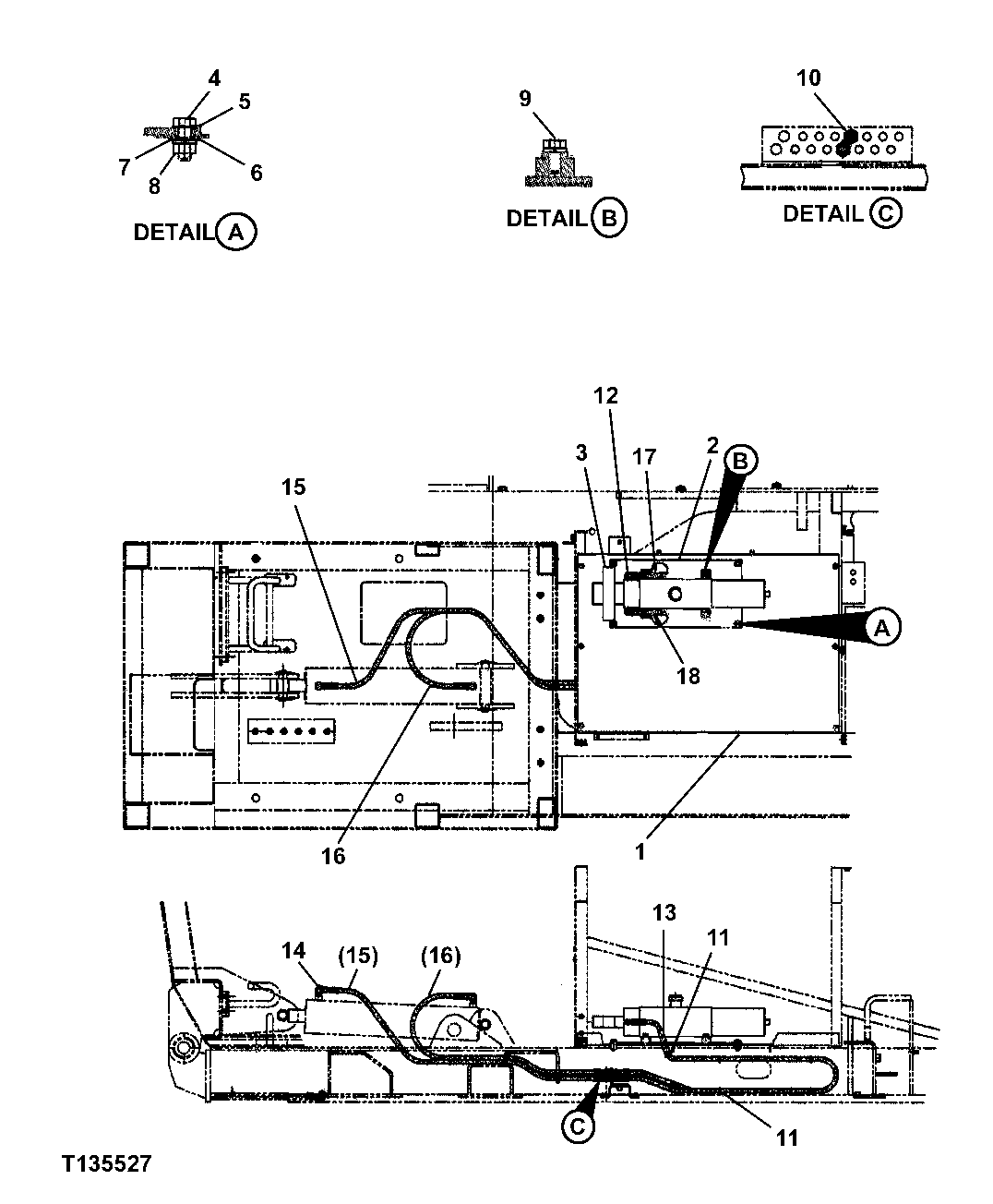

Запчасти John Deere 330LC, 370 140 - HYDRAULIC TILT CIRCUIT FOR UNITS WITHOUT RESERVE TANK 2163A Hydraulic Lines & Hoses

1

FFSB104973

Plate

1шт.

2

Plate

( FFSJ104974 NOT AVAILABLE FOR SERVICE)

1шт.

3

FFSB104999

Power Supply

1шт.

4

19M7403

Cap Screw

M12 X 35

4шт.

5

24M7047

Washer

13 X 24 X 2.500 mm

4шт.

6

24H1748

Washer

1/2" X 1-1/4" X 0.105"

4шт.

7

12M7058

Lock Washer

12 mm (SUB FOR 12M7067)

4шт.

8

14M7275

Nut

M12

4шт.

9

19M7872

Cap Screw

M12 X 25

4шт.

12H301

Lock Washer

1/2"

4шт.

10

Plug

(X6WLO-WLNL-5 NOT AVAILABLE FOR SERVICE)

2шт.

11

R44302

Tie Band

6шт.

12

X6CLO-S

Elbow Fitting

2шт.

13

FFSB108097

Hose Guard

2шт.

14

X6-8CLO-S

Elbow Fitting

2шт.

15

FFSB107336

Hydraulic Hose

1шт.

16

FFSB107337

Hydraulic Hose

1шт.

17

FFSB107328

Hydraulic Hose

1шт.

18

FFSB107335

Hydraulic Hose

1шт.
