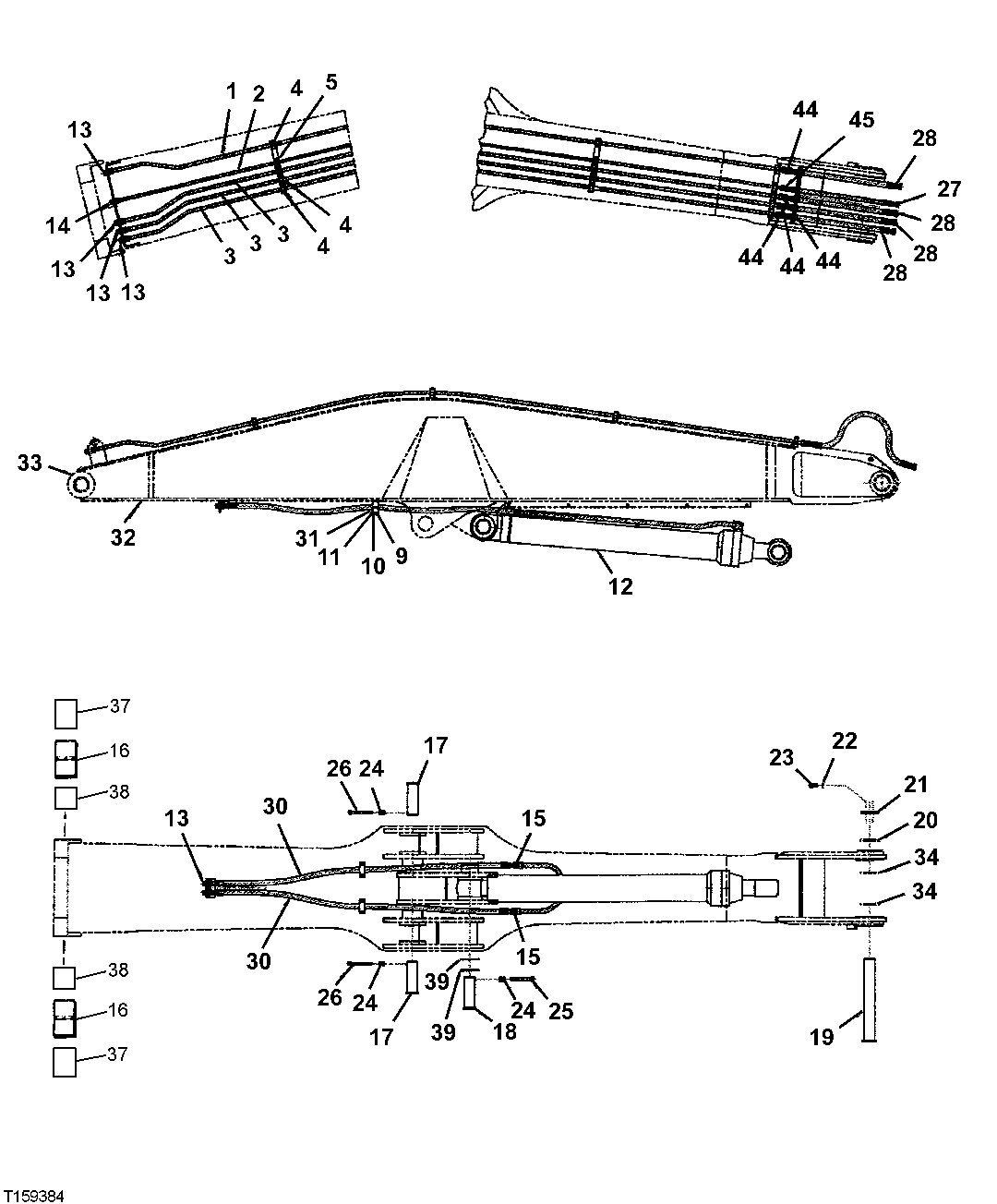

Запчасти John Deere 330LC, 370 152 - BOOM PIPINGS FOR BUTT-N-TOP 3344A Boom

1

FFSB100109

Oil Line

(SUB FOR FFSB100109)

1шт.

2

FFSB100110

Oil Line

(SUB FOR FFSB100110)

1шт.

3

FFSB100111

Oil Line

(SUB FOR FFSB100111)

3шт.

4

FFSB100112

Half Clamp

24шт.

19H1726

Cap Screw

3/8" X 2-1/4"

24шт.

FFSB100114

Reinforcement

12шт.

FFSB100115

Lock Nut

24шт.

5

FFSB100113

Half Clamp

6шт.

19H1726

Cap Screw

3/8" X 2-1/4"

6шт.

FFSB100114

Reinforcement

3шт.

FFSB100115

Lock Nut

6шт.

9

FFSB100116

Reinforcement

2шт.

10

19H3197

Cap Screw

7/16" X 4"

4шт.

11

FFSB100118

Half Clamp

4шт.

12

Cylinder

(ARM) (SEE SEPARATE PAGE FOR DETAIL)

1шт.

13

38H1287

Adapter Fitting

(SUB FOR FFSB102144)

6шт.

T76938

O-Ring

23.520 X 1.780 mm

12шт.

T78715

Nut

36.525 mm

6шт.

14

38H1276

Adapter Fitting

(SUB FOR FFSB102145)

1шт.

T77858

O-Ring

18.771 X 1.778 mm

2шт.

T78707

Nut

30.175 mm

1шт.

15

X16F5OLO-S

Adapter Fitting

(SUB FOR FFSB102146)

2шт.

16

Bushing

(FFSB300035 NO LONGER AVAILAB LE) (SUB 4443884 AND 4381855)

2шт.

4443884

Bushing

(SUB FOR FFSB112013)

2шт.

17

FFSB107220

Pin Fastener

(SUB FOR FFSB100036)

2шт.

18

FFSB107207

Pin Fastener

(SUB FOR FFSB100037)

1шт.

19

AT132098

Pin

1шт.

20

FFSB100039

Spacer

1шт.

21

FFSB100040

Stop

1шт.

22

12M7070

Lock Washer

20 mm

3шт.

23

19M7597

Cap Screw

M20 X 50 (SUB FOR J912050)

3шт.

24

14M7277

Nut

M20

6шт.

25

19M8100

Cap Screw

M20 X 180

1шт.

26

19M7645

Screw

M20 X 200

2шт.

27

FFSB100121

Hydraulic Hose

1шт.

28

FFSB100120

Hydraulic Hose

4шт.

30

FFSB100123

Hydraulic Hose

2шт.

31

FFSB100117

Half Clamp

2шт.

FFSB110867

Insert

2шт.

32

FFSB100125

Grapple Boom

(CONVENIENCE ASSEMBLY)

1шт.

33

JD7846

Lubrication Fitting

(90 DEGREE) (SUB FOR FFSB104351)

2шт.

JD7769

Lubrication Fitting

(STRAIGHT TYPE) (SUB FOR FFSB104342)

3шт.

34

4232239R

Shim

(SUB FOR AT131939 OR 4232239)(1.2)

2шт.

37

TH103200

Seal

(SUB FOR FFSB106435)

2шт.

38

4381855

Bushing

(SUB FOR FFSB112014)

2шт.

39

4134372

Washer

(SUB FOR AT202084)(1.0)

2шт.

44

38H1281

Union Fitting

(SUB FOR FFSB102147)

4шт.

T76938

O-Ring

23.520 X 1.780 mm

8шт.

45

38H1272

Union Fitting

(SUB FOR FFSB102148)

1шт.

T77858

O-Ring

18.771 X 1.778 mm

2шт.
