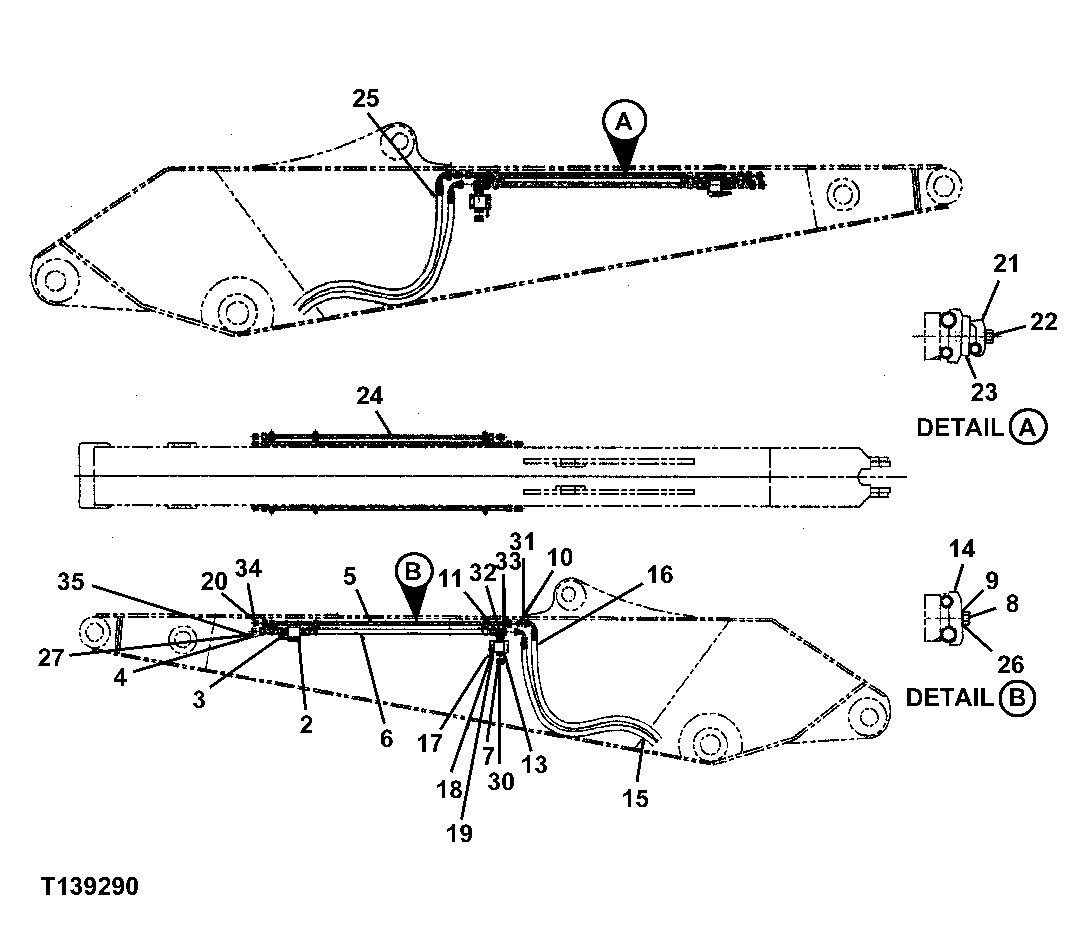

Запчасти John Deere 330LC, 370 155 - LONG ARM PIPING 3344A Boom

2

FFSB103835

Ball Cock Valve

2шт.

3

X16F5OLO-S

Adapter Fitting

(SUB FOR FFSB102146)

4шт.

4

FFSB103828

Line

2шт.

5

FFSB103827

Oil Line

2шт.

6

FFSB103826

Oil Line

2шт.

7

38H1150

Fitting Plug

4шт.

8

19M7935

Cap Screw

M10 X 55

3шт.

9

12M7066

Lock Washer

10 mm

6шт.

10

38H1272

Union Fitting

(SUB FOR FFSB102148)

3шт.

11

38H1020

Tee Fitting

(SUB FOR FFSB103880)

2шт.

13

FFSB103834

Ball Cock Valve

2шт.

14

4141806

Clamp

(SUB FOR TH100968)

6шт.

15

FFSB103654

Hydraulic Hose

2шт.

16

FFSB103653

Hydraulic Hose

2шт.

17

19M7881

Screw

M8 X 20

8шт.

18

12M7056

Lock Washer

8 mm (SUB FOR 12M7065)

8шт.

19

24M7036

Washer

9 X 16 X 1.600 mm

8шт.

20

38H1149

Fitting Plug

(SUB FOR FFSB104580)

3шт.

21

4190124

Clamp

(SUB FOR TH108727)

3шт.

22

19M8183

Cap Screw

M10 X 90

3шт.

23

FFSB104581

Spacer

3шт.

24

FFSB104687

Oil Line

1шт.

25

FFSB105093

Hydraulic Hose

1шт.

26

24M7096

Washer

10.500 X 18 X 1.600 mm

6шт.

27

38H1150

Fitting Plug

(SUB FOR FFSB104579)

2шт.

30

T76938

O-Ring

23.520 X 1.780 mm

4шт.

31

T77858

O-Ring

18.771 X 1.778 mm

6шт.

32

R29936

O-Ring

29.743 X 2.946 mm

2шт.

33

T76938

O-Ring

23.520 X 1.780 mm

2шт.

34

T77858

O-Ring

18.771 X 1.778 mm

3шт.

35

T76938

O-Ring

23.520 X 1.780 mm

2шт.
