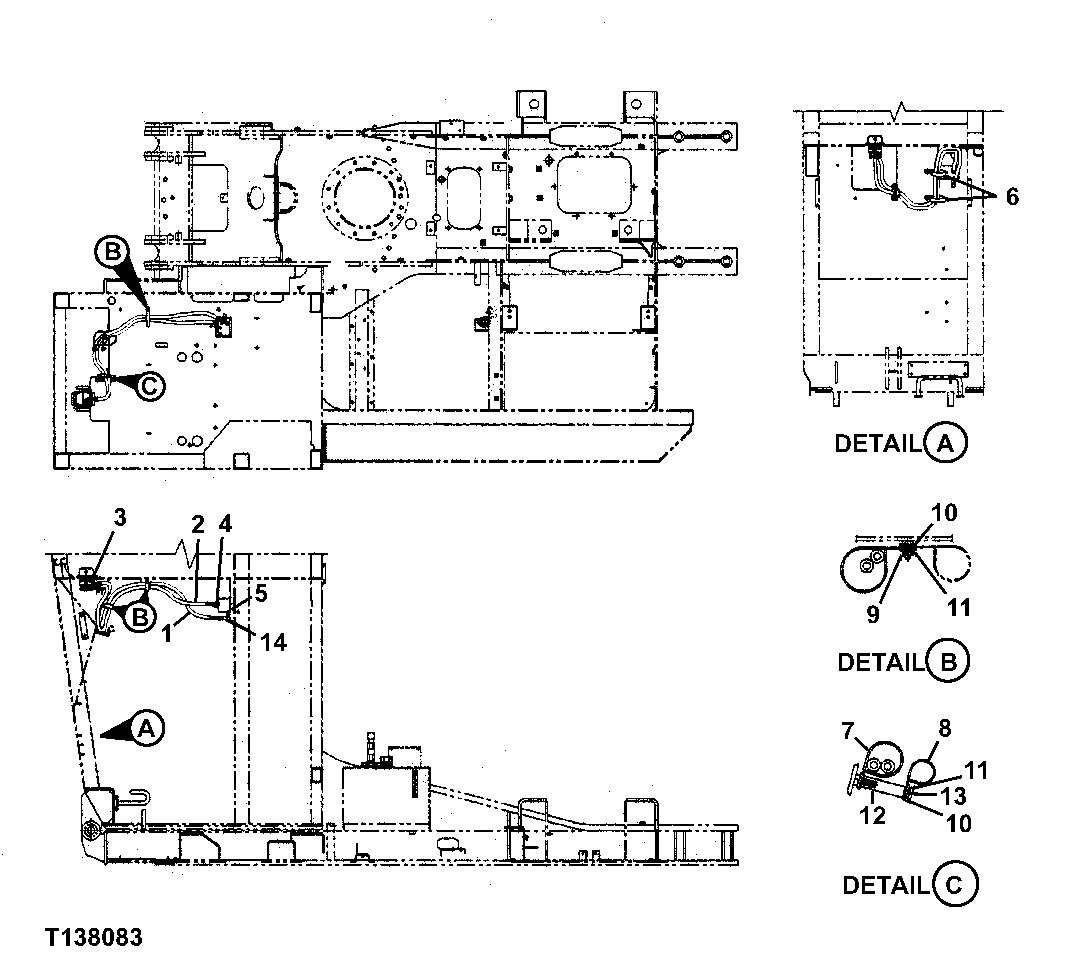

Запчасти John Deere 330LC, 370 173 - Travel Pressure Pilot Piping For Rear Entry Cab (Heeler) 3360B Hydraulic System (Rear Entry Cab)

1

FFSB107627

Hydraulic Hose

1шт.

2

FFSB107628

Hydraulic Hose

1шт.

3

4200467

Adapter Fitting

(SUB FOR TH108417)

2шт.

4

4367031

Filter

(SUB FOR FFSB107616 ) (SUB FOR AT214033)

1шт.

5

4200466

Adapter Fitting

(SUB FOR TH108320)

1шт.

6

FFSB105405

Clamp

2шт.

7

F026126

Hose Support

(SUB FOR FFSB105404)

1шт.

8

F010967

Hose Support

(SUB FOR FFSB104269)

1шт.

9

14M7274

Nut

M10 (SUB FOR FFSB107411)

3шт.

10

24M7028

Washer

10.500 X 20 X 2 mm (SUB FOR FFSB107142)

8шт.

11

12M7066

Lock Washer

10 mm (SUB FOR FFSB107409)

4шт.

12

FFSB107369

Nut

1шт.

13

19M7662

Cap Screw

M10 X 30 (SUB FOR FFSB107141)

1шт.

14

AE24616

Elbow Fitting

1шт.
